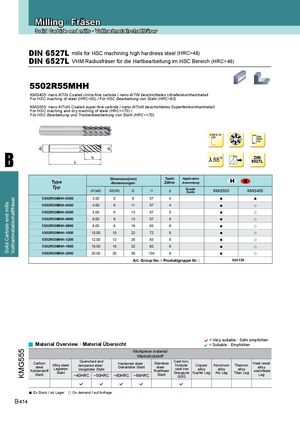

DIN 6527L mills for HSC machining high hardness steel (HRC>48)
DIN 6527L VHM Radiusfräser für die Hartbearbeitung im HSC Bereich (HRC>48)
KMG405: nano AlTiN Coated Untra-fine carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall For HSC maching of steel (HRC<63) / Für HSC Bearbeitung von Stahl (HRC<63) KMG555: nano AlTixN Coated super-fine carbide / nano AlTixN beschichtetes Superfeinkornhartmetall For HSC maching and dry maching of steel (HRC<=70) / Für HSC Bearbeitung und Trockenbearbeitung von Stahl (HRC<=70)
B
| Type | Dimensio Abmess | n(mm) ungen | Teeth Zähne | Application Anwendung | H | |||
| Typ | d1(e8) | d2(h6) | l2 | l1 | z | Grade Sorte | KMG555 | KMG405 |
| 5502R55MHH-0300 | 3.00 | 6 | 8 | 57 | 4 | ● | ● | |
| 5502R55MHH-0400 | 4.00 | 6 | 11 | 57 | 4 | ● | ○ | |
| 5502R55MHH-0500 | 5.00 | 6 | 13 | 57 | 5 | ● | ○ | |
| 5502R55MHH-0600 | 6.00 | 6 | 13 | 57 | 6 | ● | ○ | |
| 5502R55MHH-0800 | 8.00 | 8 | 19 | 63 | 6 | ● | ○ | |
| 5502R55MHH-1000 | 10.00 | 10 | 22 | 72 | 6 | ● | ○ | |
| 5502R55MHH-1200 | 12.00 | 12 | 26 | 83 | 6 | ● | ○ | |
| 5502R55MHH-1600 | 16.00 | 16 | 32 | 92 | 6 | ● | ○ | |
| 5502R55MHH-2000 | 20.00 | 20 | 38 | 104 | 8 | ● | ○ | |
| Art. G | roup No. | / Produkt | gruppe Nr. : | 024 | 130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~60HRC Gehärte | Workpiece d steel · ~68HRC Werkstü ter Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | |
