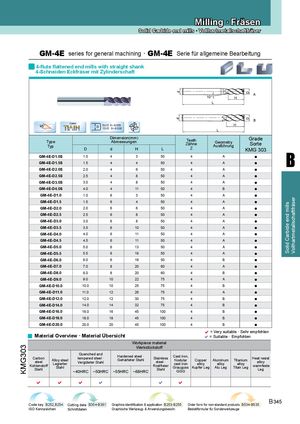

Каталог ZCC-CT фрезы монолитные - страница 105
Навигация
Каталог ZCC-CT оснастка
Каталог ZCC-CT фрезы со сменными пластинами
Каталог ZCC-CT сверла со сменными пластинами
Каталог ZCC-CT токарная обработка
Каталог ZCC-CT сверла монолитные
Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser
GM-4E series for general machining · GM-4E Serie für allgemeine Bearbeitung
4-flute flattened end mills with straight shank
4-Schneiden Eckfräser mit Zylinderschaft
d
D
A
10° H
L
D
d
B
Coated
45o D≤12 0~-0.020 H
TiAIN D 12<D 0~-0.030
L
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
Z
B
D d H L KMG 303
GM-4E-D1.0S 1.0 4 3 50 4 A ●
GM-4E-D1.5S 1.5 4 4 50 4 A ●
GM-4E-D2.0S 2.0 4 6 50 4 A ●
GM-4E-D2.5S 2.5 4 8 50 4 A ●
GM-4E-D3.0S 3.0 4 8 50 4 A ●
GM-4E-D4.0S 4.0 4 11 50 4 B ●
GM-4E-D1.0 1.0 6 3 50 4 A ●
Vollhartmetallschaftfräser
GM-4E-D1.5 1.5 6 4 50 4 A ●
Solid Carbide end mills
GM-4E-D2.0 2.0 6 6 50 4 A ●
GM-4E-D2.5 2.5 6 8 50 4 A ●
GM-4E-D3.0 3.0 6 8 50 4 A ●
GM-4E-D3.5 3.5 6 10 50 4 A ●
GM-4E-D4.0 4.0 6 11 50 4 A ●
GM-4E-D4.5 4.5 6 11 50 4 A ●
GM-4E-D5.0 5.0 6 13 50 4 A ●
GM-4E-D5.5 5.5 6 16 50 4 A ●
GM-4E-D6.0 6.0 6 16 50 4 B ●
GM-4E-D7.0 7.0 8 20 60 4 A ●
GM-4E-D8.0 8.0 8 20 60 4 B ●
GM-4E-D9.0 9.0 10 22 75 4 A ●
GM-4E-D10.0 10.0 10 25 75 4 B ●
GM-4E-D11.0 11.0 12 26 75 4 A ●
GM-4E-D12.0 12.0 12 30 75 4 B ●
GM-4E-D14.0 14.0 14 32 75 4 B ●
GM-4E-D16.0 16.0 16 45 100 4 B ●
GM-4E-D18.0 18.0 18 45 100 4 B ●
GM-4E-D20.0 20.0 20 45 100 4 B ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303
Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG
Code key B252,B254 Cutting data B354-B361 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 345
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
