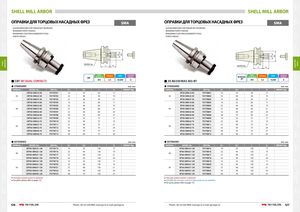

Каталог YG-1 инструментальная оснастка - страница 66

D1 D2 D1 D2 HydraulicShrink FitER ColletEnd Mill HolderShell MillPower MillingMorse TaperSK SlimSynchroTappingTappingFace MillNC Drill ChuckBoringAccessory ChuckHolderChuck& Side Lock ArborArborChuckArborChuckTapping ChuckER ChuckChuckArbor& Other Tool HoldersSystem& Others & OthersSystem& Other Tool HoldersArborChuckER ChuckTapping ChuckChuckArborChuckArbor& Side Lock ArborChuckHolderChuck AccessoryBoringNC Drill ChuckFace MillTappingTappingSynchroSK SlimMorse TaperPower MillingShell MillEnd Mill HolderER ColletShrink FitHydraulic SHELL MILL ARBOR SHELL MILL ARBOR ОПРАВКИ ДЛЯ ТОРЦОВЫХ НАСАДНЫХ ФРЕЗ SMA ОПРАВКИ ДЛЯ ТОРЦОВЫХ НАСАДНЫХ ФРЕЗ SMA AUFNAHMEDORN FÜR FRÄSER MIT BOHRUNG AUFNAHMEDORN FÜR FRÄSER MIT BOHRUNG MANDRIN PORTE-FRAISES MANDRIN PORTE-FRAISES MANDRINO CON TRASCINAMENTO FISSO MANDRINO CON TRASCINAMENTO FISSO PORTA FRESAS PORTA FRESAS TAPER No. L H TAPER No. L H CBT TaperAccuracyG Value RPM CoolantSystem■ CBT (BT DUAL CONTACT)AT32.525,000A■ JIS B6339/MAS 403-BT TaperJIS B6339AccuracyG ValueRPM CoolantSystem- BTAT36.315,000A ◆ STANDARD Unit : mm ◆ STANDARD Unit : mm TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) CBT30-SMA16-50 P2778701 16 32 30 17 BT30-SMA16-50 P2778801 16 32 30 17 30 CBT30-SMA22-50 P2778702 22 40 30 19 30 BT30-SMA22-50 P2778802 22 40 30 19 CBT30-SMA27-50 P2778703 27 48 30 21 BT30-SMA27-50 P2778803 27 48 30 21 CBT40-SMA16-60 P2778704 16 32 60 17 BT40-SMA16-60 P2778804 16 32 60 17 CBT40-SMA22-60 P2778705 22 40 60 19 BT40-SMA22-60 P2778805 22 40 60 19 40 CBT40-SMA27-60 P2778706 27 48 60 21 40 BT40-SMA27-60 P2778806 27 48 60 21 CBT40-SMA32-60 P2778707 32 58 60 24 BT40-SMA32-60 P2778807 32 58 60 24 CBT40-SMA40-60 P2778708 40 70 60 27 BT40-SMA40-60 P2778808 40 70 60 27 CBT50-SMA16-75 P2778709 16 32 75 17 BT50-SMA16-75 P2778809 16 32 75 17 CBT50-SMA22-75 P2778710 22 40 75 19 BT50-SMA22-75 P2778810 22 40 75 19 CBT50-SMA27-75 P2778711 27 48 75 21 BT50-SMA27-75 P2778811 27 48 75 21 50 50 CBT50-SMA32-75 P2778712 32 58 75 24 BT50-SMA32-75 P2778812 32 58 75 24 CBT50-SMA40-75 P2778713 40 70 75 27 BT50-SMA40-75 P2778813 40 70 75 27 CBT50-SMA50-75 P2778714 50 90 75 30 BT50-SMA50-75 P2778814 50 90 75 30 ◆ EXTENDED Unit : mm ◆ EXTENDED Unit : mm TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) CBT40-SMA16-120 P2778715 16 32 120 17 BT40-SMA16-120 P2778815 16 32 120 17 CBT40-SMA22-120 P2778716 22 40 120 19 BT40-SMA22-120 P2778816 22 40 120 19 40 40 CBT40-SMA27-120 P2778717 27 48 120 21 BT40-SMA27-120 P2778817 27 48 120 21 CBT40-SMA32-120 P2778718 32 58 120 24 BT40-SMA32-120 P2778818 32 58 120 24 CBT50-SMA16-120 P2778719 16 32 120 17 BT50-SMA16-120 P2778819 16 32 120 17 CBT50-SMA22-120 P2778720 22 40 120 19 BT50-SMA22-120 P2778820 22 40 120 19 50 CBT50-SMA27-120 P2778721 27 48 120 21 50 BT50-SMA27-120 P2778821 27 48 120 21 CBT50-SMA32-120 P2778722 32 58 120 24 BT50-SMA32-120 P2778822 32 58 120 24 CBT50-SMA40-120 P2778723 40 70 120 27 BT50-SMA40-120 P2778823 40 70 120 27 ▶ Through coolant system is optional. ▶ Through coolant system is optional. ▶ For parts, please refer to page 131. ▶ CAT(ANSI B5.50) taper and Inch type products are available. ▶ For parts, please refer to page 131. 126 Phone: +82-32-526-0909, www.yg1.kr, E-mail: yg1@yg1.kr Phone: +82-32-526-0909, www.yg1.kr, E-mail: yg1@yg1.kr 127
