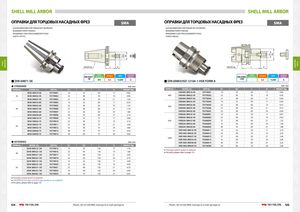

Каталог YG-1 инструментальная оснастка - страница 65

D1 D2 D1 D2 HydraulicShrink FitER ColletEnd Mill HolderShell MillPower MillingMorse TaperSK SlimSynchroTappingTappingFace MillNC Drill ChuckBoringAccessory ChuckHolderChuck& Side Lock ArborArborChuckArborChuckTapping ChuckER ChuckChuckArbor& Other Tool HoldersSystem& Others & OthersSystem& Other Tool HoldersArborChuckER ChuckTapping ChuckChuckArborChuckArbor& Side Lock ArborChuckHolderChuck AccessoryBoringNC Drill ChuckFace MillTappingTappingSynchroSK SlimMorse TaperPower MillingShell MillEnd Mill HolderER ColletShrink FitHydraulic SHELL MILL ARBOR SHELL MILL ARBOR ОПРАВКИ ДЛЯ ТОРЦОВЫХ НАСАДНЫХ ФРЕЗ SMA ОПРАВКИ ДЛЯ ТОРЦОВЫХ НАСАДНЫХ ФРЕЗ SMA AUFNAHMEDORN FÜR FRÄSER MIT BOHRUNG AUFNAHMEDORN FÜR FRÄSER MIT BOHRUNG MANDRIN PORTE-FRAISES MANDRIN PORTE-FRAISES MANDRINO CON TRASCINAMENTO FISSO MANDRINO CON TRASCINAMENTO FISSO PORTA FRESAS PORTA FRESAS TAPER No. L H TAPER No. L H TaperDIN 69871AccuracyG ValueRPM CoolantSystem TaperDIN 69893AccuracyG ValueRPM CoolantSystem ■ DIN 69871-SK - SK AT3 6.3 15,000 A ■ DIN 69893/ISO 12164-1-HSK FORM A - HSK - 6.3 15,000 A ◆ STANDARD Unit : mm Unit : mm TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) SK30-SMA16-50 P2778901 16 32 50 17 0.85 HSK40A-SMA16-50 P2778201 16 32 50 17 0.40 30 SK30-SMA22-50 P2778902 22 40 50 19 0.90 40A HSK40A-SMA22-50 P2778202 22 40 50 19 0.50 SK30-SMA27-50 P2778903 27 48 50 21 1.03 HSK40A-SMA27-60 P2778203 27 48 60 21 0.60 SK40-SMA16-60 P2778904 16 32 60 17 0.35 HSK50A-SMA16-50 P2778204 16 32 50 17 0.50 SK40-SMA22-60 P2778905 22 40 60 19 1.45 HSK50A-SMA22-60 P2778205 22 40 60 19 0.5750A 40 SK40-SMA27-60 P2778906 27 48 60 21 1.70 HSK50A-SMA27-60 P2778206 27 48 60 21 0.75 SK40-SMA32-60 P2778907 32 58 60 24 1.80 HSK50A-SMA32-60 P2778207 32 58 60 24 0.90 SK40-SMA40-60 P2778908 40 70 60 27 3.10 HSK63A-SMA16-50 P2566001 16 32 50 17 0.81 SK50-SMA16-75 P2778909 16 32 75 17 2.80 HSK63A-SMA22-50 P2566002 22 40 50 19 0.93 SK50-SMA22-75 P2778910 22 40 75 19 3.10 63A HSK63A-SMA27-60 P2566003 27 48 60 21 1.22 SK50-SMA27-75 P2778911 27 48 75 21 3.40 HSK63A-SMA32-60 P2566004 32 58 60 24 1.46 50 SK50-SMA32-75 P2778912 32 58 75 24 3.80 HSK63A-SMA40-60 P2566005 40 70 60 27 1.80 SK50-SMA40-75 P2778913 40 70 75 27 4.50 HSK100A-SMA16-50 P2566011 16 32 50 17 2.14 SK50-SMA50-75 P2778914 50 90 75 30 5.90 HSK100A-SMA22-50 P2566012 22 40 50 19 2.25 HSK100A-SMA27-50 P2566013 27 48 50 21 2.40 100A HSK100A-SMA32-50 P2566014 32 58 50 24 2.60 ◆ EXTENDED Unit : mm HSK100A-SMA40-60 P2566015 40 70 60 27 3.25 TAPER No. MODEL No. EDP No. D1 D2 L H WEIGHT (Kg) HSK100A-SMA50-70 P2778209 50 90 70 30 5.40 SK40-SMA16-120 P2778915 16 32 120 17 1.70 ▶ Through coolant system is optional. SK40-SMA22-120 P2778916 22 40 120 19 1.8040 ▶ For parts, please refer to page 131. SK40-SMA27-120 P2778917 27 48 120 21 2.40 SK40-SMA32-120 P2778918 32 58 120 24 3.70 SK50-SMA16-120 P2778919 16 32 120 17 3.90 SK50-SMA22-120 P2778920 22 40 120 19 4.40 50 SK50-SMA27-120 P2778921 27 48 120 21 4.70 SK50-SMA32-120 P2778922 32 58 120 24 5.00 SK50-SMA40-120 P2778923 40 70 120 27 6.05 ▶ Through coolant system is optional. ▶ CAT(ANSI B5.50) taper and Inch type products are available. ▶ For parts, please refer to page 131. 124 Phone: +82-32-526-0909, www.yg1.kr, E-mail: yg1@yg1.kr Phone: +82-32-526-0909, www.yg1.kr, E-mail: yg1@yg1.kr 125
