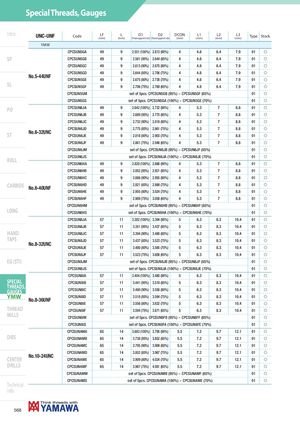

| Intro | UNC-UNF | Code | LF ( mm ) | L ( mm ) | D1 (Thread engagement ratio) | D2 (Thread engagement ratio) | DCON ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | Type | Stock |
| YMW | ||||||||||||
| CPCSUN5GA | 49 | 9 | 2.551 (100%) | 2.613 (90%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | ||
| SP | CPCSUN5GB | 49 | 9 | 2.581 (95%) | 2.644 (85%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | |
| CPCSUN5GC | 49 | 9 | 2.613 (90%) | 2.675 (80%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | ||
| No5-44UNF | CPCSUN5GD | 49 | 9 | 2.644 (85%) | 2.706 (75%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | |
| . | CPCSUN5GE | 49 | 9 | 2.675 (80%) | 2.738 (70%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | |
| SL | CPCSUN5GF | 49 | 9 | 2.706 (75%) | 2.769 (65%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | |
| CPCSUN5GM | set of 5pcs. C | PCSUN5GB (9 | 5%) ~ CPCS | UN5GF (65%) | 01 | f | ||||||
| CPCSUN5GS | set of 5pcs. CP | CSUN5GA (10 | 0%) ~ CPCS | UN5GE (70%) | 01 | f | ||||||
| PO | CPCSUN6JA | 49 | 9 | 2.642 (100%) | 2.732 (90%) | 4 | 5.3 | 7 | 8.8 | 01 | f | |
| CPCSUN6JB | 49 | 9 | 2.689 (95%) | 2.775 (85%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| CPCSUN6JC | 49 | 9 | 2.732 (90%) | 2.818 (80%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| N6-32UNC | CPCSUN6JD | 49 | 9 | 2.775 (85%) | 2.861 (75%) | 4 | 5.3 | 7 | 8.8 | 01 | f | |
| ST | o. | CPCSUN6JE | 49 | 9 | 2.818 (80%) | 2.903 (70%) | 4 | 5.3 | 7 | 8.8 | 01 | f |
| CPCSUN6JF | 49 | 9 | 2.861 (75%) | 2.946 (65%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| CPCSUN6JM | set of 5pcs. C | PCSUN6JB (9 | 5%) ~ CPCS | UN6JF (65%) | 01 | f | ||||||
| ROLL | CPCSUN6JS | set of 5pcs. C | PCSUN6JA (10 | 0%) ~ CPCS | UN6JE (70%) | 01 | f | |||||
| CPCSUN6HA | 49 | 9 | 2.820 (100%) | 2.886 (90%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| CPCSUN6HB | 49 | 9 | 2.852 (95%) | 2.921 (85%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| CPCSUN6HC | 49 | 9 | 2.886 (90%) | 2.955 (80%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| CARBIDE | No6-40UNF | CPCSUN6HD | 49 | 9 | 2.921 (85%) | 2.989 (75%) | 4 | 5.3 | 7 | 8.8 | 01 | f |
| . | CPCSUN6HE | 49 | 9 | 2.955 (80%) | 3.024 (70%) | 4 | 5.3 | 7 | 8.8 | 01 | f | |
| CPCSUN6HF | 49 | 9 | 2.989 (75%) | 3.058 (65%) | 4 | 5.3 | 7 | 8.8 | 01 | f | ||
| CPCSUN6HM | set of 5pcs. C | PCSUN6HB (9 | 5%) ~ CPCS | UN6HF (65%) | 01 | f | ||||||
| LONG | CPCSUN6HS | set of 5pcs. CP | CSUN6HA (10 | 0%) ~ CPCS | UN6HE (70%) | 01 | f | |||||
| CPCSUN8JA | 57 | 11 | 3.302 (100%) | 3.394 (90%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | ||
| CPCSUN8JB | 57 | 11 | 3.351 (95%) | 3.437 (85%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | ||
| HAND | CPCSUN8JC | 57 | 11 | 3.394 (90%) | 3.480 (80%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| TAPS | N832UNC | CPCSUN8JD | 57 | 11 | 3.437 (85%) | 3.523 (75%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f |
| o.- | CPCSUN8JE | 57 | 11 | 3.480 (80%) | 3.565 (70%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| CPCSUN8JF | 57 | 11 | 3.523 (75%) | 3.608 (65%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | ||
| EG (STI) | CPCSUN8JM | set of 5pcs. C | PCSUN8JB (9 | 5%) ~ CPCS | UN8JF (65%) | 01 | f | |||||
| CPCSUN8JS | set of 5pcs. C | PCSUN8JA (10 | 0%) ~ CPCS | UN8JE (70%) | 01 | f | ||||||
| CPCSUN8IA | 57 | 11 | 3.404 (100%) | 3.480 (90%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | ||
| SPECIAL THREADS | CPCSUN8IB | 57 | 11 | 3.441 (95%) | 3.518 (85%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| , GAUGES | CPCSUN8IC | 57 | 11 | 3.480 (90%) | 3.556 (80%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| YMW | CPCSUN8ID | 57 | 11 | 3.518 (85%) | 3.594 (75%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| No.8-36UNF | CPCSUN8IE | 57 | 11 | 3.556 (80%) | 3.632 (70%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| THREAD | CPCSUN8IF | 57 | 11 | 3.594 (75%) | 3.671 (65%) | 5 | 6.3 | 8.3 | 10.4 | 01 | f | |
| MILLS | CPCSUN8IM | set of 5pcs. C | PCSUN8FB (9 | 5%) ~ CPCS | UN8FF (65%) | 01 | f | |||||
| CPCSUN8IS | set of 5pcs. C | PCSUN8FA (10 | 0%) ~ CPCS | UN8FE (70%) | 01 | f | ||||||
| CPCSUNAMA | 65 | 14 | 3.683 (100%) | 3.795 (90%) | 5.5 | 7.2 | 9.7 | 12.1 | 01 | f | ||
| DIES | CPCSUNAMB | 65 | 14 | 3.738 (95%) | 3.852 (85%) | 5.5 | 7.2 | 9.7 | 12.1 | 01 | f | |
| CPCSUNAMC | 65 | 14 | 3.795 (90%) | 3.909 (80%) | 5.5 | 7.2 | 9.7 | 12.1 | 01 | f | ||
| CPCSUNAMD | 65 | 14 | 3.852 (85%) | 3.967 (75%) | 5.5 | 7.2 | 9.7 | 12.1 | 01 | f | ||
| CENTER | No.10-24UNC | CPCSUNAME | 65 | 14 | 3.909 (80%) | 4.024 (70%) | 5.5 | 7.2 | 9.7 | 12.1 | 01 | f |
| DRILLS | CPCSUNAMF | 65 | 14 | 3.967 (75%) | 4.081 (65%) | 5.5 | 7.2 | 9.7 | 12.1 | 01 | f | |
| CPCSUNAMM | set of 5pcs. CP | CSUNAMB (9 | 5%) ~ CPCS | UNAMF (65%) | 01 | f | ||||||
| Technical | CPCSUNAMS | set of 5pcs. CP | CSUNAMA (10 | 0%) ~ CPCS | UNAME (70% | ) | 01 | f | ||||
