Каталоги Yamawa твердосплавные метчики для закаленной стали

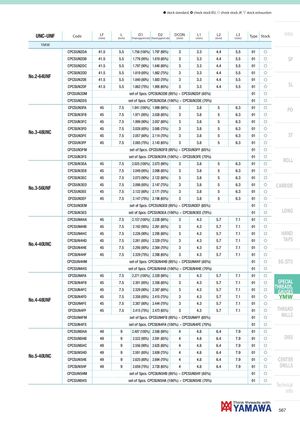

| UNC-UNF | Code | LF ( mm ) | L ( mm ) | D1 (Thread engagement ratio) | D2 (Thread engagement ratio) | DCON ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | Type | Stock | Intro |
| YMW | ||||||||||||
| CPCSUN2DA | 41.5 | 5.5 | 1.756 (100%) | 1.797 (90%) | 3 | 3.3 | 4.4 | 5.5 | 01 | f | ||
| CPCSUN2DB | 41.5 | 5.5 | 1.776 (95%) | 1.819 (85%) | 3 | 3.3 | 4.4 | 5.5 | 01 | f | SP | |
| CPCSUN2DC | 41.5 | 5.5 | 1.797 (90%) | 1.840 (80%) | 3 | 3.3 | 4.4 | 5.5 | 01 | f | ||
| CPCSUN2DD | 41.5 | 5.5 | 1.819 (85%) | 1.862 (75%) | 3 | 3.3 | 4.4 | 5.5 | 01 | f | ||
| No.2-64UNF | CPCSUN2DE | 41.5 | 5.5 | 1.840 (80%) | 1.883 (70%) | 3 | 3.3 | 4.4 | 5.5 | 01 | f | |
| CPCSUN2DF | 41.5 | 5.5 | 1.862 (75%) | 1.905 (65%) | 3 | 3.3 | 4.4 | 5.5 | 01 | f | SL | |
| CPCSUN2DM | set of 5pcs. C | PCSUN2DB (95 | %) ~ CPC | SUN2DF (65%) | 01 | f | ||||||
| CPCSUN2DS | set of 5pcs. CP | CSUN2DA (10 | 0%) ~ CPC | SUN2DE (70%) | 01 | f | ||||||
| CPCSUN3FA | 45 | 7.5 | 1.941 (100%) | 1.999 (90%) | 3 | 3.8 | 5 | 6.3 | 01 | f | PO | |
| CPCSUN3FB | 45 | 7.5 | 1.971 (95%) | 2.028 (85%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ||
| CPCSUN3FC | 45 | 7.5 | 1.999 (90%) | 2.057 (80%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ||
| N348UNC | CPCSUN3FD | 45 | 7.5 | 2.028 (85%) | 2.085 (75%) | 3 | 3.8 | 5 | 6.3 | 01 | f | |
| o.- | CPCSUN3FE | 45 | 7.5 | 2.057 (80%) | 2.114 (70%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ST |
| CPCSUN3FF | 45 | 7.5 | 2.085 (75%) | 2.143 (65%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ||
| CPCSUN3FM | set of 5pcs. C | PCSUN3FB (95 | %) ~ CPC | SUN3FF (65%) | 01 | f | ||||||
| CPCSUN3FS | set of 5pcs. C | PCSUN3FA (10 | 0%) ~ CPC | SUN3FE (70%) | 01 | f | ||||||
| CPCSUN3EA | 45 | 7.5 | 2.025 (100%) | 2.073 (90%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ROLL | |
| CPCSUN3EB | 45 | 7.5 | 2.049 (95%) | 2.098 (85%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ||
| CPCSUN3EC | 45 | 7.5 | 2.073 (90%) | 2.122 (80%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ||
| CPCSUN3ED | 45 | 7.5 | 2.098 (85%) | 2.147 (75%) | 3 | 3.8 | 5 | 6.3 | 01 | f | CARBIDE | |
| No.3-56UNF | CPCSUN3EE | 45 | 7.5 | 2.122 (80%) | 2.171 (70%) | 3 | 3.8 | 5 | 6.3 | 01 | f | |
| CPCSUN3EF | 45 | 7.5 | 2.147 (75%) | 2.196 (65%) | 3 | 3.8 | 5 | 6.3 | 01 | f | ||
| CPCSUN3EM | set of 5pcs. C | PCSUN3EB (95 | %) ~ CPC | SUN3EF (65%) | 01 | f | ||||||
| LONG | ||||||||||||
| CPCSUN3ES | set of 5pcs. C | CSUN3EA (10 | %) ~ CP | SUN3EE (70%) | 01 | f | ||||||
| CPCSUN4HA | 45 | 7.5 | 2.157 (100%) | 2.226 (90%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | ||
| CPCSUN4HB | 45 | 7.5 | 2.192 (95%) | 2.261 (85%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | ||
| CPCSUN4HC | 45 | 7.5 | 2.226 (90%) | 2.295 (80%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | HAND | |
| CPCSUN4HD | 45 | 7.5 | 2.261 (85%) | 2.329 (75%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | TAPS | |
| No.4-40UNC | CPCSUN4HE | 45 | 7.5 | 2.295 (80%) | 2.364 (70%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | |
| CPCSUN4HF | 45 | 7.5 | 2.329 (75%) | 2.398 (65%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | ||
| CPCSUN4HM | set of 5pcs. C | PCSUN4HB (95 | %) ~ CPC | SUN4HF (65%) | 01 | f | EG (STI) | |||||
| CPCSUN4HS | set of 5pcs. CP | CSUN4HA (10 | 0%) ~ CPC | SUN4HE (70%) | 01 | f | ||||||
| CPCSUN4FA | 45 | 7.5 | 2.271 (100%) | 2.329 (90%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | ||
| CPCSUN4FB | 45 | 7.5 | 2.301 (95%) | 2.358 (85%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | SPECIAL | |
| CPCSUN4FC | 45 | 7.5 | 2.329 (90%) | 2.387 (80%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | THREADS, GAUGES | |
| CPCSUN4FD | 45 | 7.5 | 2.358 (85%) | 2.415 (75%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | YMW | |
| No.4-48UNF | CPCSUN4FE | 45 | 7.5 | 2.387 (80%) | 2.444 (70%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | |
| CPCSUN4FF | 45 | 7.5 | 2.415 (75%) | 2.473 (65%) | 3 | 4.3 | 5.7 | 7.1 | 01 | f | THREAD | |
| CPCSUN4FM | set of 5pcs. C | PCSUN4FB (95 | %) ~ CPC | SUN4FF (65%) | 01 | f | MILLS | |||||
| CPCSUN4FS | set of 5pcs. C | PCSUN4FA (10 | 0%) ~ CPC | SUN4FE (70%) | 01 | f | ||||||
| CPCSUN5HA | 49 | 9 | 2.487 (100%) | 2.556 (90%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | ||
| CPCSUN5HB | 49 | 9 | 2.522 (95%) | 2.591 (85%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | DIES | |
| CPCSUN5HC | 49 | 9 | 2.556 (90%) | 2.625 (80%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | ||
| CPCSUN5HD | 49 | 9 | 2.591 (85%) | 2.659 (75%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | ||
| No.5-40UNC | CPCSUN5HE | 49 | 9 | 2.625 (80%) | 2.694 (70%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | CENTER |
| CPCSUN5HF | 49 | 9 | 2.659 (75%) | 2.728 (65%) | 4 | 4.8 | 6.4 | 7.9 | 01 | f | DRILLS | |
| CPCSUN5HM | set of 5pcs. C | PCSUN5HB (95 | %) ~ CPC | SUN5HF (65%) | 01 | f | ||||||
| CPCSUN5HS | set of 5pcs. CP | CSUN5HA (10 | 0%) ~ CPC | SUN5HE (70%) | 01 | f |
