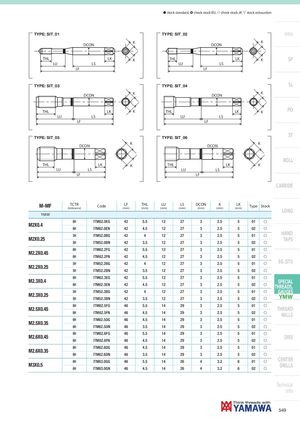

TYPE: SIT_01 TYPE: SIT_02 K K DCON DCON
| THL | LK | THL | LK | ||
| K | K |
LU LS LU LS
LF LF
TYPE: SIT_03 TYPE: SIT_04 K K DCON DCON
THL LK K THL LK K
LU LS LU LS
LF LF
TYPE: SIT_05 TYPE: SIT_06 K K DCON DCON
THL LK K THL LK K
LU LS LU LS
LF LF
Intro
SP
SL
PO
ST
ROLL
CARBIDE
| M-MF | TCTR (tolerance) | Code | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | Type | Stock | LONG |
| YMW | ||||||||||||
| M2X04 | 6H | ITM62.0EG | 42 | 5.5 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| . | 6H | ITM62.0EN | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 02 | f | |
| M2X025 | 5H | ITM52.0BG | 42 | 4 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | HAND TAPS |
| . | 5H | ITM52.0BN | 42 | 3.5 | 12 | 27 | 3 | 2.5 | 5 | 02 | f | |
| M22X045 | 6H | ITM62.2FG | 42 | 5.5 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| .. | 6H | ITM62.2FN | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 02 | f | |
| M22X025 | 5H | ITM52.2BG | 42 | 4 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | EG (STI) |
| .. | 5H | ITM52.2BN | 42 | 3.5 | 12 | 27 | 3 | 2.5 | 5 | 02 | f | |
| M23X04 | 6H | ITM62.3EG | 42 | 5.5 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | |
| .. | 6H | ITM62.3EN | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 02 | f | SPECIAL THREADS |
| M23X025 | 5H | ITM52.3BG | 42 | 4 | 12 | 27 | 3 | 2.5 | 5 | 01 | f | , GAUGES |
| .. | 5H | ITM52.3BN | 42 | 3.5 | 12 | 27 | 3 | 2.5 | 5 | 02 | f | YMW |
| M25X045 | 6H | ITM62.5FG | 46 | 5.5 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | THREAD |
| .. | 6H | ITM62.5FN | 46 | 4.5 | 14 | 29 | 3 | 2.5 | 5 | 02 | f | MILLS |
| M25X035 | 6H | ITM62.5DG | 46 | 4.5 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | |
| .. | 6H | ITM62.5DN | 46 | 3.5 | 14 | 29 | 3 | 2.5 | 5 | 02 | f | |
| M2X4 | 6H | ITM62.6FG | 46 | 5.5 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | |
| .60.5 | 6H | ITM62.6FN | 46 | 4.5 | 14 | 29 | 3 | 2.5 | 5 | 02 | f | DIES |
| M26X035 | 6H | ITM62.6DG | 46 | 4.5 | 14 | 29 | 3 | 2.5 | 5 | 01 | f | |
| .. | 6H | ITM62.6DN | 46 | 3.5 | 14 | 29 | 3 | 2.5 | 5 | 02 | f | |
| M3X0.5 | 6H 6H | ITM63.0GG ITM63.0GN | 46 46 | 5.5 4.5 | 14 14 | 26 26 | 4 4 | 3.2 3.2 | 6 6 | 01 02 | f f | CENTER DRILLS |
