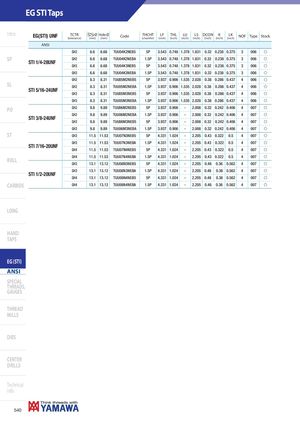

Общий каталог Yamawa 2021 - страница 539
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| EG(STI) UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | |||||||||||||||
| GH2 | 6.6 | 6.68 | TUU04K2NEB5 | 5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 3 | 006 | f | |
| STI 1/428UNF | GH2 | 6.6 | 6.68 | TUU04K2NEBA | 1.5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 3 | 006 | f |
| - | GH3 | 6.6 | 6.68 | TUU04K3NEB5 | 5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 3 | 006 | f |
| GH3 | 6.6 | 6.68 | TUU04K3NEBA | 1.5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 3 | 006 | f | |
| GH2 | 8.3 | 8.31 | TUU05M2NEB5 | 5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f | |
| STI 5/16-24UNF | GH2 | 8.3 | 8.31 | TUU05M2NEBA | 1.5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f |
| GH3 | 8.3 | 8.31 | TUU05M3NEB5 | 5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f | |
| GH3 | 8.3 | 8.31 | TUU05M3NEBA | 1.5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f | |
| GH2 | 9.8 | 9.89 | TUU06M2NEB5 | 5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f | |
| STI 3/8-24UNF | GH2 | 9.8 | 9.89 | TUU06M2NEBA | 1.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f |
| GH3 | 9.8 | 9.89 | TUU06M3NEB5 | 5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f | |
| GH3 | 9.8 | 9.89 | TUU06M3NEBA | 1.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f | |
| GH3 | 11.5 | 11.53 | TUU07N3NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 4 | 007 | f | |
| STI 7/16-20UNF | GH3 | 11.5 | 11.53 | TUU07N3NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 4 | 007 | f |
| GH4 | 11.5 | 11.53 | TUU07N4NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 4 | 007 | f | |
| GH4 | 11.5 | 11.53 | TUU07N4NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 4 | 007 | f | |
| GH3 | 13.1 | 13.12 | TUU08N3NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 4 | 007 | f | |
| STI 1/2-20UNF | GH3 | 13.1 | 13.12 | TUU08N3NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 4 | 007 | f |
| GH4 | 13.1 | 13.12 | TUU08N4NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 4 | 007 | f | |
| GH4 | 13.1 | 13.12 | TUU08N4NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 4 | 007 | f |
