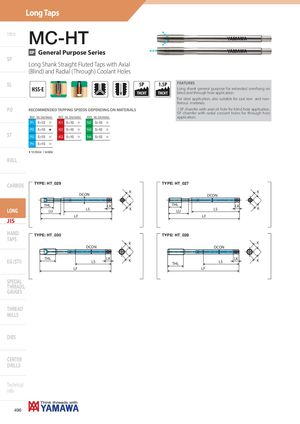

MC-HT
GP General Purpose Series
SP
Long Shank Straight Fluted Taps with Axial
(Blind) and Radial (Through) Coolant Holes
| SL | 5P | 1.5P | FEATURES | |
| HSS-E | Long shank general purpose for extended overhang on | |||
| THCHT | THCHT | blind and through hole application. | ||
| For steel application, also suitable for cast iron and non- | ||||
| ferrous materials. | ||||
| PO | RECOMMENDED TAPPING SPEEDS DEPENDING ON MATERIALS | 1.5P chamfer with axial oil hole for blind hole application, | ||
| 5P chamfer with radial coolant holes for through hole | ||||
| ISO Vc (m/min) | ISO Vc (m/min) ISO Vc (m/min) | application. |
| P1 | 5÷10 | I | K1 | 5÷10 | I | N2 | 5÷10 | I | |
| P2 | 5÷10 | H | K2 | 5÷10 | I | N3 | 5÷10 | I | |
| ST | |||||||||
| P3 | 5÷10 | I | K3 | 5÷10 | I | N4 | 5÷10 | I | |
| P4 | 5÷10 | I | |||||||
| H 1st choice I suitable | |||||||||
| ROLL | |||||||||
| JIS-MC-HT |
| CARBIDE | TYPE: HT_029 | TYPE: HT_027 | ||||||||
| K | K | |||||||||
| DCON | DCON | |||||||||
| THL | THL | |||||||||
| LK | LK |
LONG LS K LS K
LU LU LF LF JIS HAND
TYPE: HT_030 TYPE: HT_028
TAPS
K K DCON DCON
THL LK LK
EG (STI) LS K LS K
THL LF LF SPECIAL THREADS,
