Каталоги Yamawa твердосплавные метчики для закаленной стали

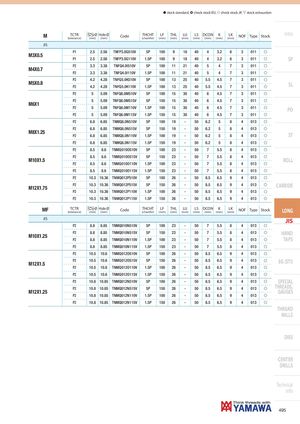

| M JIS | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| M3X05 | P1 | 2.5 | 2.56 | TNFP3.0G510V | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |
| . | P1 | 2.5 | 2.56 | TNFP3.0G110V | 1.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | SP |
| M4X07 | P2 | 3.3 | 3.38 | TNFQ4.0I510V | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |
| . | P2 | 3.3 | 3.38 | TNFQ4.0I110V | 1.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |
| P2 | 4.2 | 4.28 | TNFQ5.0K510V | 5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | ||
| M5X0.8 | P2 | 4.2 | 4.28 | TNFQ5.0K110V | 1.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | SL |
| P2 | 5 | 5.09 | TNFQ6.0M510V | 5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | ||
| M6X1 | P2 | 5 | 5.09 | TNFQ6.0M515V | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | |
| P2 | 5 | 5.09 | TNFQ6.0M110V | 1.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | PO | |
| P2 | 5 | 5.09 | TNFQ6.0M115V | 1.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | ||
| P2 | 6.8 | 6.85 | TNMQ8.0N510V | 5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 4 | 013 | f | ||
| P2 | 6.8 | 6.85 | TNMQ8.0N515V | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 4 | 013 | f | ||
| M8X1.25 | P2 | 6.8 | 6.85 | TNMQ8.0N110V | 1.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 4 | 013 | f | ST |
| P2 | 6.8 | 6.85 | TNMQ8.0N115V | 1.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 4 | 013 | f | ||
| P2 | 8.5 | 8.6 | TNMQ010O510V | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | ||
| M10X1 | P2 | 8.5 | 8.6 | TNMQ010O515V | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | |
| .5 | P2 | 8.5 | 8.6 | TNMQ010O110V | 1.5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | ROLL |
| P2 | 8.5 | 8.6 | TNMQ010O115V | 1.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | ||
| P2 | 10.3 | 10.36 | TNMQ012P510V | 5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ||
| P2 | 10.3 | 10.36 | TNMQ012P515V | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | CARBIDE | |
| M12X1.75 | P2 | 10.3 | 10.36 | TNMQ012P110V | 1.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |
| P2 | 10.3 | 10.36 | TNMQ012P115V | 1.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ||
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| JIS | JIS | |||||||||||||||
| P2 | 8.8 | 8.85 | TNMQ010N510V | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | ||
| M10X125 | P2 | 8.8 | 8.85 | TNMQ010N515V | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | HAND |
| . | P2 | 8.8 | 8.85 | TNMQ010N110V | 1.5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | TAPS |
| P2 | 8.8 | 8.85 | TNMQ010N115V | 1.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 4 | 013 | f | ||
| P2 | 10.5 | 10.6 | TNMQ012O510V | 5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ||
| P2 | 10.5 | 10.6 | TNMQ012O515V | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | EG (STI) | |
| M12X1.5 | P2 | 10.5 | 10.6 | TNMQ012O110V | 1.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |
| P2 | 10.5 | 10.6 | TNMQ012O115V | 1.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ||
| P2 | 10.8 | 10.85 | TNMQ012N510V | 5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | SPECIAL | |
| P2 | 108 | 1085 | TNMQ012N515V | 5P | 150 | 26 | 50 | 85 | 65 | 9 | 4 | 013 | f | THREADS, | ||
| . | . | - | . | . | ||||||||||||
| M12X1.25 | P2 | 10.8 | 10.85 | TNMQ012N110V | 1.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | GAUGES |
| P2 | 10.8 | 10.85 | TNMQ012N115V | 1.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ||
