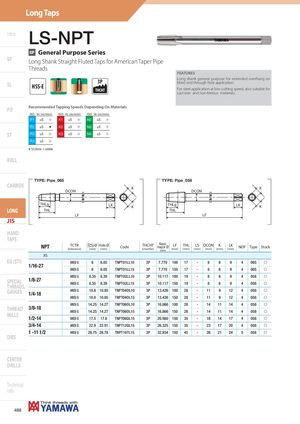

Общий каталог Yamawa 2021 - страница 487
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
LS-NPT
GP General Purpose Series
SP Long Shank Straight Fluted Taps for American Taper Pipe
Threads
3P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | ≤5 | I | K1 | ≤5 | I | N2 | ≤5 | I | |
| P2 | ≤5 | H | K2 | ≤5 | I | N3 | ≤5 | I | |
| ST | P3 | ≤5 | I | K3 | ≤5 | I | N4 | ≤5 | I |
| P4 | ≤5 | I |
H 1st choice I suitable ROLL
FEATURES Long shank general purpose for extended overhang on blind and through hole application. For steel application at low cutting speed, also suitable for cast iron and non-ferrous materials.
JIS-LS-NPT
CARBIDE
LONG
JIS
HAND
TAPS
TYPE: Pipe_065 TYPE: Pipe_058 K K DCON DCON
THLg LK THLg LK
K K THL THL LF LF
| NPT | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| 1/1627 | ANSI G | 6 | 6.05 | TNPT01LL10 | 3P | 7.770 | 100 | 17 | - | 8 | 6 | 9 | 4 | 065 | f |
| - | ANSI G | 6 | 6.05 | TNPT01LL15 | 3P | 7.770 | 150 | 17 | - | 8 | 6 | 9 | 4 | 065 | f |
| 1/827 | ANSI G | 8.35 | 8.39 | TNPT02LL10 | 3P | 10.117 | 100 | 19 | - | 8 | 6 | 9 | 4 | 058 | f |
| - | ANSI G | 8.35 | 8.39 | TNPT02LL15 | 3P | 10.117 | 150 | 19 | - | 8 | 6 | 9 | 4 | 058 | f |
| 1/418 | ANSI G | 10.8 | 10.85 | TNPT04OL10 | 3P | 13.426 | 100 | 28 | - | 11 | 9 | 12 | 4 | 058 | f |
| - | ANSI G | 10.8 | 10.85 | TNPT04OL15 | 3P | 13.426 | 150 | 28 | - | 11 | 9 | 12 | 4 | 058 | f |
| / | ANSI G | 14.25 | 14.27 | TNPT06OL10 | 3P | 16.866 | 100 | 28 | - | 14 | 11 | 14 | 4 | 058 | f |
| 38-18 | ANSI G | 14.25 | 14.27 | TNPT06OL15 | 3P | 16.866 | 150 | 28 | - | 14 | 11 | 14 | 4 | 058 | f |
| 1/2-14 | ANSI G | 17.5 | 17.6 | TNPT08QL15 | 3P | 20.980 | 150 | 35 | - | 18 | 14 | 17 | 4 | 058 | f |
| 3/4-14 | ANSI G | 22.9 | 22.91 | TNPT12QL15 | 3P | 26.325 | 150 | 35 | - | 23 | 17 | 20 | 4 | 058 | f |
| 1 -11 1/2 | ANSI G | 28.75 | 28.78 | TNPT16TL15 | 3P | 32.934 | 150 | 45 | - | 26 | 21 | 24 | 5 | 058 | f |
