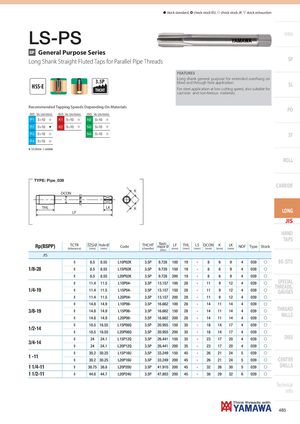

LS-PS
GP General Purpose Series
Long Shank Straight Fluted Taps for Parallel Pipe Threads SP
FEATURES Long shank general purpose for extended overhang on 3.5P blind and through hole application.
HSS-E SL
THCHT For steel application at low cutting speed, also suitable for cast iron and non-ferrous materials. Recommended Tapping Speeds Depending On Materials PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | K1 | 5÷10 | I | N2 | 5÷10 | I | |
| P2 | 5÷10 | H | K2 | 5÷10 | I | N3 | 5÷10 | I | |
| P3 | 5÷10 | I | N4 | 5÷10 | I | ST | |||
| P4 | 5÷10 | I |
H 1st choice I suitable ROLL JIS-LS-PS
TYPE: Pipe_039
DCON
THL LF
LK
K
K
CARBIDE
LONG
JIS
HAND
TAPS
| Rp(BSPP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| (mm) | ||||||||||||||||
| JIS | ||||||||||||||||
| II | 8.5 | 8.55 | L10P02K | 3.5P | 9.728 | 100 | 19 | - | 8 | 6 | 9 | 4 | 039 | f | EG (STI) | |
| 1/8-28 | II | 8.5 | 8.55 | L15P02K | 3.5P | 9.728 | 150 | 19 | - | 8 | 6 | 9 | 4 | 039 | f | |
| II | 8.5 | 8.55 | L20P02K | 3.5P | 9.728 | 200 | 19 | - | 8 | 6 | 9 | 4 | 039 | f | ||
| II | 11.4 | 11.5 | L10P04- | 3.5P | 13.157 | 100 | 28 | - | 11 | 9 | 12 | 4 | 039 | f | SPECIAL | |
| 1/4-19 | II | 11.4 | 11.5 | L15P04- | 3.5P | 13.157 | 150 | 28 | - | 11 | 9 | 12 | 4 | 039 | f | THREADS, GAUGES |
| II | 11.4 | 11.5 | L20P04- | 3.5P | 13.157 | 200 | 28 | - | 11 | 9 | 12 | 4 | 039 | f | ||
| II | 14.8 | 14.9 | L10P06- | 3.5P | 16.662 | 100 | 28 | - | 14 | 11 | 14 | 4 | 039 | f | ||
| 3/8-19 | II | 14.8 | 14.9 | L15P06- | 3.5P | 16.662 | 150 | 28 | - | 14 | 11 | 14 | 4 | 039 | f | THREAD |
| II | 14.8 | 14.9 | L20P06- | 3.5P | 16.662 | 200 | 28 | - | 14 | 11 | 14 | 4 | 039 | f | MILLS | |
| 1/214 | II | 18.5 | 18.55 | L15P08Q | 3.5P | 20.955 | 150 | 35 | - | 18 | 14 | 17 | 4 | 039 | f | |
| - | II | 18.5 | 18.55 | L20P08Q | 3.5P | 20.955 | 200 | 35 | - | 18 | 14 | 17 | 4 | 039 | f | |
| 3/4-14 | II | 24 | 24.1 | L15P12Q | 3.5P | 26.441 | 150 | 35 | - | 23 | 17 | 20 | 4 | 039 | f | DIES |
| II | 24 | 24.1 | L20P12Q | 3.5P | 26.441 | 200 | 35 | - | 23 | 17 | 20 | 4 | 039 | f | ||
| 1 11 | II | 30.2 | 30.25 | L15P16U | 3.5P | 33.249 | 150 | 45 | - | 26 | 21 | 24 | 5 | 039 | f | |
| - | II | 30.2 | 30.25 | L20P16U | 3.5P | 33.249 | 200 | 45 | - | 26 | 21 | 24 | 5 | 039 | f | CENTER |
| 1 1/4-11 | II | 38.75 | 38.8 | L20P20U | 3.5P | 41.910 | 200 | 45 | - | 32 | 26 | 30 | 5 | 039 | f | DRILLS |
| 1 1/2-11 | II | 44.6 | 44.7 | L20P24U | 3.5P | 47.803 | 200 | 45 | - | 38 | 29 | 32 | 6 | 039 | f |
