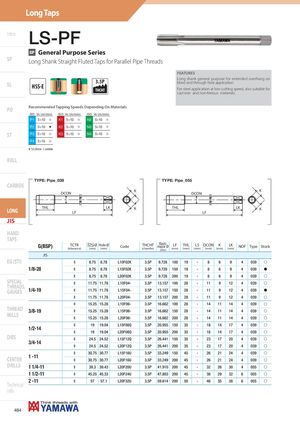

LS-PF
GP General Purpose Series
SP Long Shank Straight Fluted Taps for Parallel Pipe Threads
3.5P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials
FEATURES Long shank general purpose for extended overhang on blind and through hole application. For steel application at low cutting speed, also suitable for cast iron and non-ferrous materials.
| ISO | Vc (m/min) | ISO | Vc (m/min) | ISO | Vc (m/min) |
| P1 | 5÷10I | K1 | 5÷10I | N2 | 5÷10I |
| P2 | 5÷10H | K2 | 5÷10I | N3 | 5÷10I |
| P3 | 5÷10I | K3 | 5÷10I | N4 | 5÷10I |
| P4 | 5÷10I |
H 1st choice I suitable
ROLL
JIS-LS-PF
CARBIDE
LONG
JIS
HAND
TAPS
TYPE: Pipe_039 TYPE: Pipe_055 K K DCON DCON
THL LK K THL LK K
LF LF
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| II | 8.75 | 8.78 | L10F02K | 3.5P | 9.728 | 100 | 19 | - | 8 | 6 | 9 | 4 | 039 | f | |
| 1/8-28 | II | 8.75 | 8.78 | L15F02K | 3.5P | 9.728 | 150 | 19 | - | 8 | 6 | 9 | 4 | 039 | h |
| II | 8.75 | 8.78 | L20F02K | 3.5P | 9.728 | 200 | 19 | - | 8 | 6 | 9 | 4 | 039 | f | |
| II | 11.75 | 11.78 | L10F04- | 3.5P | 13.157 | 100 | 28 | - | 11 | 9 | 12 | 4 | 039 | f | |
| 1/4-19 | II | 11.75 | 11.78 | L15F04- | 3.5P | 13.157 | 150 | 28 | - | 11 | 9 | 12 | 4 | 039 | h |
| II | 11.75 | 11.78 | L20F04- | 3.5P | 13.157 | 200 | 28 | - | 11 | 9 | 12 | 4 | 039 | f | |
| II | 15.25 | 15.28 | L10F06- | 3.5P | 16.662 | 100 | 28 | - | 14 | 11 | 14 | 4 | 039 | f | |
| 3/8-19 | II | 15.25 | 15.28 | L15F06- | 3.5P | 16.662 | 150 | 28 | - | 14 | 11 | 14 | 4 | 039 | f |
| II | 15.25 | 15.28 | L20F06- | 3.5P | 16.662 | 200 | 28 | - | 14 | 11 | 14 | 4 | 039 | f | |
| II | 19 | 19.04 | L15F08Q | 3.5P | 20.955 | 150 | 35 | - | 18 | 14 | 17 | 4 | 039 | f | |
| 1/2-14 | II | 19 | 19.04 | L20F08Q | 3.5P | 20.955 | 200 | 35 | - | 18 | 14 | 17 | 4 | 039 | f |
| 3/414 | II | 24.5 | 24.52 | L15F12Q | 3.5P | 26.441 | 150 | 35 | - | 23 | 17 | 20 | 4 | 039 | f |
| - | II | 24.5 | 24.52 | L20F12Q | 3.5P | 26.441 | 200 | 35 | - | 23 | 17 | 20 | 4 | 039 | f |
| 1 -11 | II | 30.75 | 30.77 | L15F16U | 3.5P | 33.249 | 150 | 45 | - | 26 | 21 | 24 | 4 | 039 | f |
| II | 30.75 | 30.77 | L20F16U | 3.5P | 33.249 | 200 | 45 | - | 26 | 21 | 24 | 4 | 039 | f | |
| 1 1/4-11 | II | 39.3 | 39.43 | L20F20U | 3.5P | 41.910 | 200 | 45 | - | 32 | 26 | 30 | 4 | 055 | f |
| 1 1/2-11 | II | 45.25 | 45.33 | L20F24U | 3.5P | 47.803 | 200 | 45 | - | 38 | 29 | 32 | 6 | 055 | f |
| 2 -11 | II | 57 | 57.1 | L20F32U | 3.5P | 59.614 | 200 | 50 | - | 46 | 35 | 38 | 6 | 055 | f |
