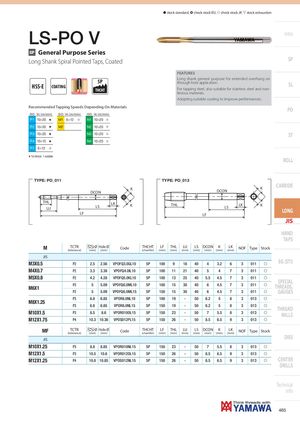

LS-PO V
GP General Purpose Series
Long Shank Spiral Pointed Taps, Coated SP
FEATURES Long shank general purpose for extended overhang on 5P through hole application.
HSS-E SL
COATING
THCHT For tapping steel, also suitable for stainless steel and nonferrous materials. Adopting suitable coating to improve performances. Recommended Tapping Speeds Depending On Materials PO
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 10÷20 | H | M1 6÷12 | I | N1 | 10÷20 | I | |
| P2 | 10÷20 | H | M2 | N2 | 10÷20 | I | ||
| P3 | 10÷20 | H | N3 | 10÷20 | I | ST | ||
| P4 | 10÷15 | H | N4 | 10÷20 | I | |||
| P7 | 6÷12 | I |
H 1st choice I suitable ROLL JIS-LS-PO V
TYPE: PO_011 TYPE: PO_013 K DCON DCON
THL LK THL LS K LU LS LF LF
LK
K
K
CARBIDE
LONG
JIS
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| EG STI | ||||||||||||||||
| M3X0.5 | P2 | 2.5 | 2.56 | VPOFQ3.0GL10 | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |
| M4X0.7 | P2 | 3.3 | 3.38 | VPOFQ4.0IL10 | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |
| M5X0.8 | P2 | 4.2 | 4.28 | VPOFQ5.0KL10 | 5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | SPECIAL |
| M6X1 | P2 | 5 | 5.09 | VPOFQ6.0ML10 | 5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | THREADS, |
| P2 | 5 | 5.09 | VPOFQ6.0ML15 | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | GAUGES | |
| M8X125 | P3 | 6.8 | 6.85 | VPOR8.0NL10 | 5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| . | P3 | 6.8 | 6.85 | VPOR8.0NL15 | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | THREAD |
| M10X1.5 | P3 | 8.5 | 8.6 | VPOR010OL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | MILLS |
| M12X1.75 | P4 | 10.3 | 10.36 | VPOS012PL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | DIES | |||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | VPOR010NL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| M12X1.5 | P3 | 10.5 | 10.6 | VPOR012OL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M12X1.25 | P4 | 10.8 | 10.85 | VPOS012NL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | CENTER DRILLS |
