Каталоги Yamawa твердосплавные метчики для закаленной стали

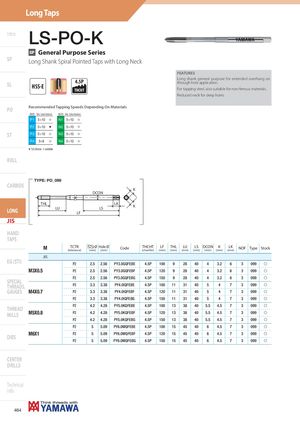

LS-PO-K
GP General Purpose Series
SP Long Shank Spiral Pointed Taps with Long Neck
4.5P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | N1 | 5÷10 | I | |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷8 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL
FEATURES Long shank general purpose for extended overhang on through hole application. For tapping steel, also suitable for non-ferrous materials. Reduced neck for deep holes.
JIS-LS-PO-K
CARBIDE
LONG
JIS
HAND
TAPS
TYPE: PO_099
THL LU
LF
DCON
LS
LK
K
K
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| EG (STI) | P2 | 2.5 | 2.56 | PY3.0GQFEBE | 4.5P | 100 | 9 | 28 | 40 | 4 | 3.2 | 6 | 3 | 099 | f | |
| M3X0.5 | P2 | 2.5 | 2.56 | PY3.0GQFEBF | 4.5P | 120 | 9 | 28 | 40 | 4 | 3.2 | 6 | 3 | 099 | f | |
| SPECIAL | P2 | 2.5 | 2.56 | PY3.0GQFEBG | 4.5P | 150 | 9 | 28 | 40 | 4 | 3.2 | 6 | 3 | 099 | f | |
| THREADS, | P2 | 3.3 | 3.38 | PY4.0IQFEBE | 4.5P | 100 | 11 | 31 | 40 | 5 | 4 | 7 | 3 | 099 | f | |
| GAUGES | M4X0.7 | P2 | 3.3 | 3.38 | PY4.0IQFEBF | 4.5P | 120 | 11 | 31 | 40 | 5 | 4 | 7 | 3 | 099 | f |
| P2 | 3.3 | 3.38 | PY4.0IQFEBG | 4.5P | 150 | 11 | 31 | 40 | 5 | 4 | 7 | 3 | 099 | f | ||
| THREAD | P2 | 4.2 | 4.28 | PY5.0KQFEBE | 4.5P | 100 | 13 | 38 | 40 | 5.5 | 4.5 | 7 | 3 | 099 | f | |
| MILLS | M5X0.8 | P2 | 4.2 | 4.28 | PY5.0KQFEBF | 4.5P | 120 | 13 | 38 | 40 | 5.5 | 4.5 | 7 | 3 | 099 | f |
| P2 | 4.2 | 4.28 | PY5.0KQFEBG | 4.5P | 150 | 13 | 38 | 40 | 5.5 | 4.5 | 7 | 3 | 099 | f | ||
| P2 | 5 | 5.09 | PY6.0MQFEBE | 4.5P | 100 | 15 | 45 | 40 | 6 | 4.5 | 7 | 3 | 099 | f | ||
| DIES | M6X1 | P2 | 5 | 5.09 | PY6.0MQFEBF | 4.5P | 120 | 15 | 45 | 40 | 6 | 4.5 | 7 | 3 | 099 | f |
| P2 | 5 | 5.09 | PY6.0MQFEBG | 4.5P | 150 | 15 | 45 | 40 | 6 | 4.5 | 7 | 3 | 099 | f |
