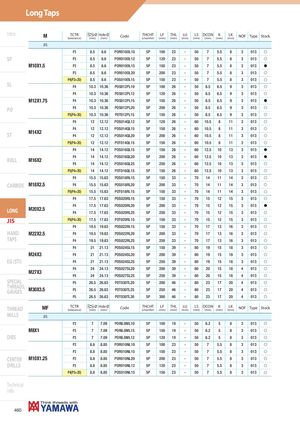

Общий каталог Yamawa 2021 - страница 459
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| P3 | 8.5 | 8.6 | POR010OL10 | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| SP | P3 | 8.5 | 8.6 | POR010OL12 | 5P | 120 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| M10X1.5 | P3 | 8.5 | 8.6 | POR010OL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | h | |
| P3 | 8.5 | 8.6 | POR010OL20 | 5P | 200 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| P4(P3+20) | 8.5 | 8.6 | POS010OL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| SL | P4 | 10.3 | 10.36 | POS012PL10 | 5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| P4 | 10.3 | 10.36 | POS012PL12 | 5P | 120 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| M12X1.75 | P4 | 10.3 | 10.36 | POS012PL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | h | |
| PO | P4 | 10.3 | 10.36 | POS012PL20 | 5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| P5(P4+20) | 10.3 | 10.36 | POT012PL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| P4 | 12 | 12.12 | POS014QL12 | 5P | 120 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| P4 | 12 | 12.12 | POS014QL15 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| ST | M14X2 | P4 | 12 | 12.12 | POS014QL20 | 5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f |
| P5(P4+20) | 12 | 12.12 | POT014QL15 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | ||
| P4 | 14 | 14.12 | POS016QL15 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | h | ||
| P4 | 14 | 14.12 | POS016QL20 | 5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | h | ||
| ROLL | M16X2 | P4 | 14 | 14.12 | POS016QL25 | 5P | 250 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f |
| P5(P4+20) | 14 | 14.12 | POT016QL15 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | ||
| P4 | 15.5 | 15.63 | POS018RL15 | 5P | 150 | 33 | - | 70 | 14 | 11 | 14 | 3 | 013 | f | ||
| CARBIDE | M18X2.5 | P4 | 15.5 | 15.63 | POS018RL20 | 5P | 200 | 33 | - | 70 | 14 | 11 | 14 | 3 | 013 | f |
| P5(P4+20) | 15.5 | 15.63 | POT018RL15 | 5P | 150 | 33 | - | 70 | 14 | 11 | 14 | 3 | 013 | f | ||
| P4 | 17.5 | 17.63 | POS020RL15 | 5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | ||
| P4 | 17.5 | 17.63 | POS020RL20 | 5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | h | ||
| LONG | M20X2.5 | P4 | 17.5 | 17.63 | POS020RL25 | 5P | 250 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f |
| JIS | P5(P4+20) | 17.5 | 17.63 | POT020RL15 | 5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | |
| P4 | 19.5 | 19.63 | POS022RL15 | 5P | 150 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f | ||
| HAND | M22X2.5 | P4 | 19.5 | 19.63 | POS022RL20 | 5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f |
| TAPS | P4 | 19.5 | 19.63 | POS022RL25 | 5P | 250 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f | |
| P4 | 21 | 21.13 | POS024SL15 | 5P | 150 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | ||
| M24X3 | P4 | 21 | 21.13 | POS024SL20 | 5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | |
| EG (STI) | P4 | 21 | 21.13 | POS024SL25 | 5P | 250 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | |
| P4 | 24 | 24.13 | POS027SL20 | 5P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 013 | f | ||
| M27X3 | P4 | 24 | 24.13 | POS027SL25 | 5P | 250 | 39 | - | 80 | 20 | 15 | 18 | 4 | 013 | f | |
| SPECIAL | P5 | 26.5 | 26.63 | POT030TL20 | 5P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 013 | f | |
| THREADS, GAUGES | M30X3.5 | P5 | 26.5 | 26.63 | POT030TL25 | 5P | 250 | 46 | - | 80 | 23 | 17 | 20 | 4 | 013 | f |
| P5 | 26.5 | 26.63 | POT030TL30 | 5P | 300 | 46 | - | 80 | 23 | 17 | 20 | 4 | 013 | f | ||
| THREAD | MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| MILLS | ||||||||||||||||
| JIS | ||||||||||||||||
| P3 | 7 | 7.09 | POR8.0ML10 | 5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | ||
| M8X1 | P3 | 7 | 7.09 | POR8.0ML15 | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| DIES | P3 | 7 | 7.09 | POR8.0ML12 | 5P | 120 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| P3 | 8.8 | 8.85 | POR010NL10 | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| P3 | 8.8 | 8.85 | POR010NL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| CENTER | M10X1.25 | P3 | 8.8 | 8.85 | POR010NL20 | 5P | 200 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f |
| DRILLS | P3 | 8.8 | 8.85 | POR010NL12 | 5P | 120 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| P4(P3+20) | 8.8 | 8.85 | POS010NL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f |
