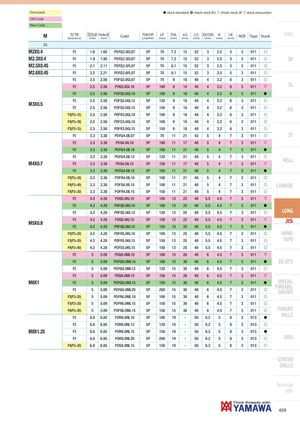

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | N | OF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| M2X0.4 | P2 | 1.6 | 1.65 | POFQ2.0EL07 | 5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| M2.3X0.4 | P2 | 1.9 | 1.95 | POFQ2.3EL07 | 5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | SP | |
| M2.5X0.45 | P2 | 2.1 | 2.11 | POFQ2.5FL07 | 5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| M2.6X0.45 | P2 | 2.2 | 2.21 | POFQ2.6FL07 | 5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| P2 | 2.5 | 2.56 | POFQ3.0GL07 | 5P | 70 | 9 | 18 | 46 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P2 | 2.5 | 2.56 | POQ3.0GL10 | 5P | 100 | 9 | 14 | 40 | 4 | 3.2 | 6 | 3 | 011 | m | SL | ||
| P2 | 2.5 | 2.56 | POFQ3.0GL10 | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | h | |||
| M3X05 | P2 | 2.5 | 2.56 | POFQ3.0GL12 | 5P | 120 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | ||
| . | P2 | 2.5 | 2.56 | POFQ3.0GL15 | 5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | PO | |
| P3(P2+15) | 2.5 | 2.56 | POFR3.0GL10 | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P4(P2+30) | 2.5 | 2.56 | POFS3.0GL10 | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P3(P2+15) | 2.5 | 2.56 | POFR3.0GL15 | 5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P2 | 3.3 | 3.38 | POFQ4.0IL07 | 5P | 70 | 11 | 21 | 43 | 5 | 4 | 7 | 3 | 011 | f | ST | ||
| P2 | 3.3 | 3.38 | POQ4.0IL10 | 5P | 100 | 11 | 17 | 40 | 5 | 4 | 7 | 3 | 011 | m | |||
| P2 | 3.3 | 3.38 | POFQ4.0IL10 | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | h | |||
| P2 | 3.3 | 3.38 | POFQ4.0IL12 | 5P | 120 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | ROLL | ||
| M4X0.7 | P2 | 3.3 | 3.38 | POQ4.0IL15 | 5P | 150 | 11 | 17 | 40 | 5 | 4 | 7 | 3 | 011 | m | ||
| P2 | 3.3 | 3.38 | POFQ4.0IL15 | 5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | h | |||
| P3(P2+20) | 3.3 | 3.38 | POFR4.0IL10 | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P4(P2+40) | 3.3 | 3.38 | POFS4.0IL10 | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | CARBIDE | ||
| P3(P2+20) | 3.3 | 3.38 | POFR4.0IL15 | 5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P2 | 4.2 | 4.28 | POQ5.0KL10 | 5P | 100 | 13 | 22 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | m | |||
| P2 | 4.2 | 4.28 | POFQ5.0KL10 | 5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | h | |||
| P2 | 4.2 | 4.28 | POFQ5.0KL12 | 5P | 120 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | LONG | ||
| M5X08 | P2 | 4.2 | 4.28 | POQ5.0KL15 | 5P | 150 | 13 | 22 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | m | JIS | |
| . | P2 | 4.2 | 4.28 | POFQ5.0KL15 | 5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | h | ||
| P3(P2+20) | 4.2 | 4.28 | POFR5.0KL10 | 5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | HAND | ||
| P3(P2+20) | 4.2 | 4.28 | POFR5.0KL15 | 5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | TAPS | ||
| P4(P2+40) | 4.2 | 4.28 | POFS5.0KL15 | 5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |||
| P2 | 5 | 5.09 | POQ6.0ML10 | 5P | 100 | 15 | 26 | 40 | 6 | 4.5 | 7 | 3 | 011 | m | |||
| P2 | 5 | 5.09 | POFQ6.0ML10 | 5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | h | EG (STI) | ||
| P2 | 5 | 5.09 | POFQ6.0ML12 | 5P | 120 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | |||
| P2 | 5 | 5.09 | POQ6.0ML15 | 5P | 150 | 15 | 26 | 40 | 6 | 4.5 | 7 | 3 | 011 | m | |||
| M6X1 | P2 | 5 | 5.09 | POFQ6.0ML15 | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | h | SPECIAL | |
| P2 | 5 | 5.09 | POFQ6.0ML20 | 5P | 200 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | THREADS, GAUGES | ||
| P3(P2+20) | 5 | 5.09 | POFR6.0ML10 | 5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | |||
| P3(P2+20) | 5 | 5.09 | POFR6.0ML15 | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | |||
| P4(P2+40) | 5 | 5.09 | POFS6.0ML15 | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | THREAD | ||
| P3 | 6.8 | 6.85 | POR8.0NL10 | 5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | h | MILLS | ||
| P3 | 6.8 | 6.85 | POR8.0NL12 | 5P | 120 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |||
| M8X1.25 | P3 | 6.8 | 6.85 | POR8.0NL15 | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | h | ||
| P3 | 6.8 | 6.85 | POR8.0NL20 | 5P | 200 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | DIES | ||
| P4(P3+20) | 6.8 | 6.85 | POS8.0NL15 | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f |
