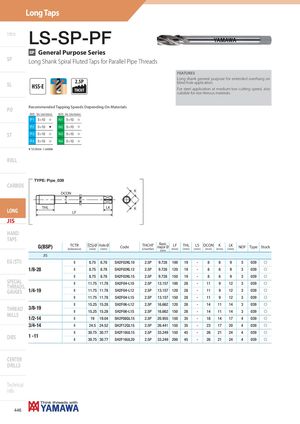

LS-SP-PF
GP General Purpose Series
SP Long Shank Spiral Fluted Taps for Parallel Pipe Threads
2.5P
SL HSS-E
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | N1 | 5÷10 | I | |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷10 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL
FEATURES Long shank general purpose for extended overhang on blind hole application. For steel application at medium-low cutting speed, also suitable for non-ferrous materials.
JIS-LS-SP-PF
CARBIDE
LONG
JIS
HAND
TAPS
TYPE: Pipe_039
K DCON
THL LK K
LF
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| (mm) | |||||||||||||||
| JIS | |||||||||||||||
| II | 8.75 | 8.78 | SH2F02KL10 | 2.5P | 9.728 | 100 | 19 | - | 8 | 6 | 9 | 3 | 039 | f | |
| 1/8-28 | II | 8.75 | 8.78 | SH2F02KL12 | 2.5P | 9.728 | 120 | 19 | - | 8 | 6 | 9 | 3 | 039 | f |
| II | 8.75 | 8.78 | SH2F02KL15 | 2.5P | 9.728 | 150 | 19 | - | 8 | 6 | 9 | 3 | 039 | f | |
| II | 11.75 | 11.78 | SH2F04-L10 | 2.5P | 13.157 | 100 | 28 | - | 11 | 9 | 12 | 3 | 039 | f | |
| 1/4-19 | II | 11.75 | 11.78 | SH2F04-L12 | 2.5P | 13.157 | 120 | 28 | - | 11 | 9 | 12 | 3 | 039 | f |
| II | 11.75 | 11.78 | SH2F04-L15 | 2.5P | 13.157 | 150 | 28 | - | 11 | 9 | 12 | 3 | 039 | f | |
| / | II | 15.25 | 15.28 | SH2F06-L12 | 2.5P | 16.662 | 120 | 28 | - | 14 | 11 | 14 | 3 | 039 | f |
| 38-19 | II | 15.25 | 15.28 | SH2F06-L15 | 2.5P | 16.662 | 150 | 28 | - | 14 | 11 | 14 | 3 | 039 | f |
| 1/2-14 | II | 19 | 19.04 | SH2F08QL15 | 2.5P | 20.955 | 150 | 35 | - | 18 | 14 | 17 | 4 | 039 | f |
| 3/4-14 | II | 24.5 | 24.52 | SH2F12QL15 | 2.5P | 26.441 | 150 | 35 | - | 23 | 17 | 20 | 4 | 039 | f |
| 1 11 | II | 30.75 | 30.77 | SH2F16UL15 | 2.5P | 33.249 | 150 | 45 | - | 26 | 21 | 24 | 4 | 039 | f |
| - | II | 30.75 | 30.77 | SH2F16UL20 | 2.5P | 33.249 | 200 | 45 | - | 26 | 21 | 24 | 4 | 039 | f |
SPECIAL
THREADS,
