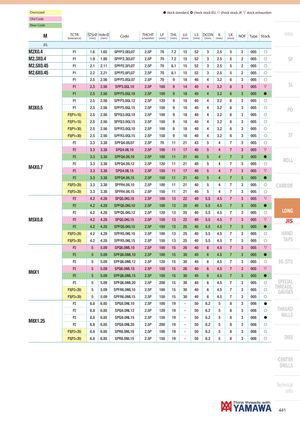

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | N | OF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| M2X0.4 | P1 | 1.6 | 1.65 | SPFP2.0EL07 | 2.5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 2 | 005 | f | ||
| M2.3X0.4 | P1 | 1.9 | 1.95 | SPFP2.3EL07 | 2.5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 2 | 005 | f | SP | |
| M2.5X0.45 | P1 | 2.1 | 2.11 | SPFP2.5FL07 | 2.5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 2 | 005 | f | ||
| M2.6X0.45 | P1 | 2.2 | 2.21 | SPFP2.6FL07 | 2.5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 2 | 005 | f | ||
| P1 | 2.5 | 2.56 | SPFP3.0GL07 | 2.5P | 70 | 9 | 18 | 46 | 4 | 3.2 | 6 | 3 | 005 | f | |||
| P1 | 2.5 | 2.56 | SPP3.0GL10 | 2.5P | 100 | 9 | 14 | 40 | 4 | 3.2 | 6 | 3 | 005 | m | SL | ||
| P1 | 2.5 | 2.56 | SPFP3.0GL10 | 2.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | h | |||
| P1 | 2.5 | 2.56 | SPFP3.0GL12 | 2.5P | 120 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | |||
| M3X0.5 | P1 | 2.5 | 2.56 | SPFP3.0GL15 | 2.5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | PO | |
| P2(P1+15) | 2.5 | 2.56 | SPFQ3.0GL10 | 2.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | |||
| P2(P1+15) | 2.5 | 2.56 | SPFQ3.0GL15 | 2.5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | |||
| P3(P1+30) | 2.5 | 2.56 | SPFR3.0GL10 | 2.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | |||
| P3(P1+30) | 2.5 | 2.56 | SPFR3.0GL15 | 2.5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | f | ST | ||
| P2 | 3.3 | 3.38 | SPFQ4.0IL07 | 2.5P | 70 | 11 | 21 | 43 | 5 | 4 | 7 | 3 | 005 | f | |||
| P2 | 3.3 | 3.38 | SPQ4.0IL10 | 2.5P | 100 | 11 | 17 | 40 | 5 | 4 | 7 | 3 | 005 | m | |||
| P2 | 3.3 | 3.38 | SPFQ4.0IL10 | 2.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | h | |||
| M4X07 | P2 | 3.3 | 3.38 | SPFQ4.0IL12 | 2.5P | 120 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | f | ROLL | |
| . | P2 | 3.3 | 3.38 | SPQ4.0IL15 | 2.5P | 150 | 11 | 17 | 40 | 5 | 4 | 7 | 3 | 005 | m | ||
| P2 | 3.3 | 3.38 | SPFQ4.0IL15 | 2.5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | h | |||
| P3(P2+20) | 3.3 | 3.38 | SPFR4.0IL10 | 2.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | f | CARBIDE | ||
| P3(P2+20) | 3.3 | 3.38 | SPFR4.0IL15 | 2.5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | f | |||
| P2 | 4.2 | 4.28 | SPQ5.0KL10 | 2.5P | 100 | 13 | 22 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | m | |||
| P2 | 4.2 | 4.28 | SPFQ5.0KL10 | 2.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | h | |||
| P2 | 4.2 | 4.28 | SPFQ5.0KL12 | 2.5P | 120 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | f | LONG | ||
| M5X0.8 | P2 | 4.2 | 4.28 | SPQ5.0KL15 | 2.5P | 150 | 13 | 22 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | m | JIS | |
| P2 | 4.2 | 4.28 | SPFQ5.0KL15 | 2.5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | h | |||
| P3(P2+20) | 4.2 | 4.28 | SPFR5.0KL10 | 2.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | f | HAND | ||
| P3(P2+20) | 4.2 | 4.28 | SPFR5.0KL15 | 2.5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | f | TAPS | ||
| P2 | 5 | 5.09 | SPQ6.0ML10 | 2.5P | 100 | 15 | 26 | 40 | 6 | 4.5 | 7 | 3 | 005 | m | |||
| P2 | 5 | 5.09 | SPFQ6.0ML10 | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | h | |||
| P2 | 5 | 5.09 | SPFQ6.0ML12 | 2.5P | 120 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | EG (STI) | ||
| M6X1 | P2 | 5 | 5.09 | SPQ6.0ML15 | 2.5P | 150 | 15 | 26 | 40 | 6 | 4.5 | 7 | 3 | 005 | m | ||
| P2 | 5 | 5.09 | SPFQ6.0ML15 | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | h | |||
| P2 | 5 | 5.09 | SPFQ6.0ML20 | 2.5P | 200 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | SPECIAL | ||
| P3(P2+20) | 5 | 5.09 | SPFR6.0ML10 | 2.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | THREADS, GAUGES | ||
| P3(P2+20) | 5 | 5.09 | SPFR6.0ML15 | 2.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | |||
| P2 | 6.8 | 6.85 | SPQ8.0NL10 | 2.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | h | |||
| P2 | 6.8 | 6.85 | SPQ8.0NL12 | 2.5P | 120 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | THREAD | ||
| P2 | 6.8 | 6.85 | SPQ8.0NL15 | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | h | MILLS | ||
| M8X1.25 | P2 | 6.8 | 6.85 | SPQ8.0NL20 | 2.5P | 200 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | ||
| P3(P2+20) | 6.8 | 6.85 | SPR8.0NL10 | 2.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | |||
| P3(P2+20) | 6.8 | 6.85 | SPR8.0NL15 | 2.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | DIES |
