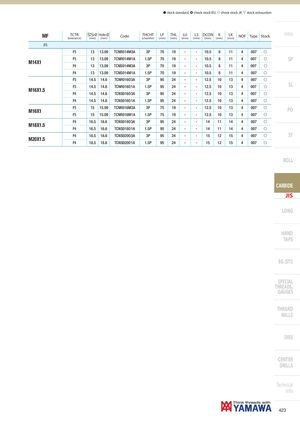

Общий каталог Yamawa 2021 - страница 422
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| P3 | 13 | 13.09 | TCNR014M3A | 3P | 70 | 19 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | ||
| M14X1 | P3 | 13 | 13.09 | TCNR014M1A | 1.5P | 70 | 19 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | SP |
| P4 | 13 | 13.09 | TCNS014M3A | 3P | 70 | 19 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | ||
| P4 | 13 | 13.09 | TCNS014M1A | 1.5P | 70 | 19 | - | - | 10.5 | 8 | 11 | 4 | 007 | f | ||
| P3 | 14.5 | 14.6 | TCNR016O3A | 3P | 95 | 24 | - | - | 12.5 | 10 | 13 | 4 | 007 | f | ||
| M16X15 | P3 | 14.5 | 14.6 | TCNR016O1A | 1.5P | 95 | 24 | - | - | 12.5 | 10 | 13 | 4 | 007 | f | SL |
| . | P4 | 14.5 | 14.6 | TCNS016O3A | 3P | 95 | 24 | - | - | 12.5 | 10 | 13 | 4 | 007 | f | |
| P4 | 14.5 | 14.6 | TCNS016O1A | 1.5P | 95 | 24 | - | - | 12.5 | 10 | 13 | 4 | 007 | f | ||
| M16X1 | P3 | 15 | 15.09 | TCNR016M3A | 3P | 75 | 19 | - | - | 12.5 | 10 | 13 | 4 | 007 | f | PO |
| P3 | 15 | 15.09 | TCNR016M1A | 1.5P | 75 | 19 | - | - | 12.5 | 10 | 13 | 4 | 007 | f | ||
| M18X15 | P4 | 16.5 | 16.6 | TCNS018O3A | 3P | 95 | 24 | - | - | 14 | 11 | 14 | 4 | 007 | f | |
| . | P4 | 16.5 | 16.6 | TCNS018O1A | 1.5P | 95 | 24 | - | - | 14 | 11 | 14 | 4 | 007 | f | |
| M20X15 | P4 | 18.5 | 18.6 | TCNS020O3A | 3P | 95 | 24 | - | - | 15 | 12 | 15 | 4 | 007 | f | ST |
| . | P4 | 18.5 | 18.6 | TCNS020O1A | 1.5P | 95 | 24 | - | - | 15 | 12 | 15 | 4 | 007 | f |
ROLL
CARBIDE
JIS
LONG
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
