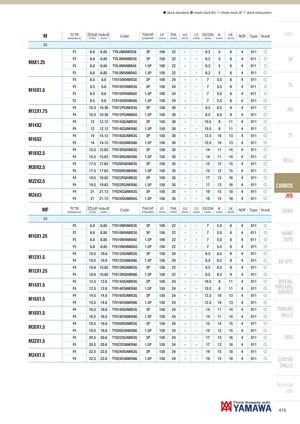

Общий каталог Yamawa 2021 - страница 414
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| P3 | 6.8 | 6.85 | TY8.0NRAWB3E | 3P | 100 | 22 | - | - | 6.2 | 5 | 8 | 4 | 011 | f | ||
| M8X125 | P3 | 6.8 | 6.85 | TY8.0NRAWB3G | 3P | 150 | 22 | - | - | 6.2 | 5 | 8 | 4 | 011 | f | SP |
| . | P3 | 6.8 | 6.85 | TY8.0NRAWBAE | 1.5P | 100 | 22 | - | - | 6.2 | 5 | 8 | 4 | 011 | f | |
| P3 | 6.8 | 6.85 | TY8.0NRAWBAG | 1.5P | 150 | 22 | - | - | 6.2 | 5 | 8 | 4 | 011 | f | ||
| P3 | 8.5 | 8.6 | TY010ORAWB3E | 3P | 100 | 24 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | ||
| M10X15 | P3 | 8.5 | 8.6 | TY010ORAWB3G | 3P | 150 | 24 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | SL |
| . | P3 | 8.5 | 8.6 | TY010ORAWBAE | 1.5P | 100 | 24 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | |
| P3 | 8.5 | 8.6 | TY010ORAWBAG | 1.5P | 150 | 24 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | ||
| M12X1 | P4 | 10.3 | 10.36 | TY012PSAWB3G | 3P | 150 | 30 | - | - | 8.5 | 6.5 | 9 | 4 | 011 | f | PO |
| .75 | P4 | 10.3 | 10.36 | TY012PSAWBAG | 1.5P | 150 | 30 | - | - | 8.5 | 6.5 | 9 | 4 | 011 | f | |
| P4 | 12 | 12.12 | TY014QSAWB3G | 3P | 150 | 30 | - | - | 10.5 | 8 | 11 | 4 | 011 | f | ||
| M14X2 | P4 | 12 | 12.12 | TY014QSAWBAG | 1.5P | 150 | 30 | - | - | 10.5 | 8 | 11 | 4 | 011 | f | |
| P4 | 14 | 14.12 | TY016QSAWB3G | 3P | 150 | 30 | - | - | 12.5 | 10 | 13 | 4 | 011 | f | ST | |
| M16X2 | P4 | 14 | 14.12 | TY016QSAWBAG | 1.5P | 150 | 30 | - | - | 12.5 | 10 | 13 | 4 | 011 | f | |
| P4 | 15.5 | 15.63 | TY018RSAWB3G | 3P | 150 | 35 | - | - | 14 | 11 | 14 | 4 | 011 | f | ||
| M18X2.5 | P4 | 15.5 | 15.63 | TY018RSAWBAG | 1.5P | 150 | 35 | - | - | 14 | 11 | 14 | 4 | 011 | f | |
| M20X25 | P4 | 17.5 | 17.63 | TY020RSAWB3G | 3P | 150 | 35 | - | - | 15 | 12 | 15 | 4 | 011 | f | ROLL |
| . | P4 | 17.5 | 17.63 | TY020RSAWBAG | 1.5P | 150 | 35 | - | - | 15 | 12 | 15 | 4 | 011 | f | |
| MX | P4 | 19.5 | 19.63 | TY022RSAWB3G | 3P | 150 | 35 | - | - | 17 | 13 | 16 | 4 | 011 | f | |
| 222.5 | P4 | 19.5 | 19.63 | TY022RSAWBAG | 1.5P | 150 | 35 | - | - | 17 | 13 | 16 | 4 | 011 | f | CARBIDE |
| P4 | 21 | 21.13 | TY024SSAWB3G | 3P | 150 | 35 | - | - | 19 | 15 | 18 | 4 | 011 | f | ||
| M24X3 | P4 | 21 | 21.13 | TY024SSAWBAG | 1.5P | 150 | 35 | - | - | 19 | 15 | 18 | 4 | 011 | f | JIS |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | LONG |
| JIS | ||||||||||||||||
| P3 | 8.8 | 8.85 | TY010NRAWB3E | 3P | 100 | 22 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | ||
| M10X12 | P3 | 8.8 | 8.85 | TY010NRAWB3G | 3P | 150 | 22 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | HAND |
| .5 | P3 | 8.8 | 8.85 | TY010NRAWBAE | 1.5P | 100 | 22 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | TAPS |
| P3 | 8.8 | 8.85 | TY010NRAWBAG | 1.5P | 150 | 22 | - | - | 7 | 5.5 | 8 | 4 | 011 | f | ||
| P4 | 10.5 | 10.6 | TY012OSAWB3G | 3P | 150 | 24 | - | - | 8.5 | 6.5 | 9 | 4 | 011 | f | ||
| M12X1.5 | P4 | 10.5 | 10.6 | TY012OSAWBAG | 1.5P | 150 | 24 | - | - | 8.5 | 6.5 | 9 | 4 | 011 | f | EG (STI) |
| P4 | 10.8 | 10.85 | TY012NSAWB3G | 3P | 150 | 22 | - | - | 8.5 | 6.5 | 9 | 4 | 011 | f | ||
| M12X1.25 | P4 | 10.8 | 10.85 | TY012NSAWBAG | 1.5P | 150 | 22 | - | - | 8.5 | 6.5 | 9 | 4 | 011 | f | |
| P4 | 12.5 | 12.6 | TY014OSAWB3G | 3P | 150 | 24 | - | - | 10.5 | 8 | 11 | 4 | 011 | f | SPECIAL | |
| M14X1.5 | P4 | 12.5 | 12.6 | TY014OSAWBAG | 1.5P | 150 | 24 | - | - | 10.5 | 8 | 11 | 4 | 011 | f | THREADS, GAUGES |
| M16X15 | P4 | 14.5 | 14.6 | TY016OSAWB3G | 3P | 150 | 24 | - | - | 12.5 | 10 | 13 | 4 | 011 | f | |
| . | P4 | 14.5 | 14.6 | TY016OSAWBAG | 1.5P | 150 | 24 | - | - | 12.5 | 10 | 13 | 4 | 011 | f | |
| M18X15 | P4 | 16.5 | 16.6 | TY018OSAWB3G | 3P | 150 | 24 | - | - | 14 | 11 | 14 | 4 | 011 | f | THREAD |
| . | P4 | 16.5 | 16.6 | TY018OSAWBAG | 1.5P | 150 | 24 | - | - | 14 | 11 | 14 | 4 | 011 | f | MILLS |
| P4 | 18.5 | 18.6 | TY020OSAWB3G | 3P | 150 | 24 | - | - | 15 | 12 | 15 | 4 | 011 | f | ||
| M20X1.5 | P4 | 18.5 | 18.6 | TY020OSAWBAG | 1.5P | 150 | 24 | - | - | 15 | 12 | 15 | 4 | 011 | f | |
| P4 | 20.5 | 20.6 | TY022OSAWB3G | 3P | 150 | 24 | - | - | 17 | 13 | 16 | 4 | 011 | f | DIES | |
| M22X1.5 | P4 | 20.5 | 20.6 | TY022OSAWBAG | 1.5P | 150 | 24 | - | - | 17 | 13 | 16 | 4 | 011 | f | |
| P4 | 22.5 | 22.6 | TY024OSAWB3G | 3P | 150 | 24 | - | - | 19 | 15 | 18 | 4 | 011 | f | ||
| M24X1.5 | P4 | 22.5 | 22.6 | TY024OSAWBAG | 1.5P | 150 | 24 | - | - | 19 | 15 | 18 | 4 | 011 | f | CENTER |
| DRILLS |
