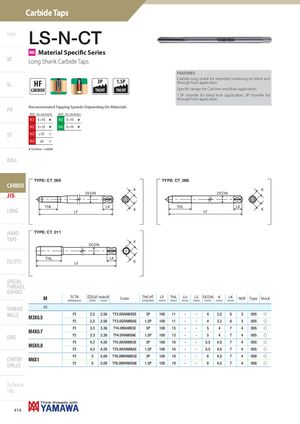

Общий каталог Yamawa 2021 - страница 413
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
LS-N-CT
MS Material Specifi c Series
SP Long Shank Carbide Taps
| HF | 3P | 1.5P | |
| SL | |||
| CARBIDE | THCHT | THCHT |
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| K1 | 5÷15 | H | N2 | 5÷15 | H | |
| K2 | 5÷15 | H | N4 | 5÷15 | H | |
| ST | K3 | ≤10 | I | |||
| K4 | ≤8 | I |
H 1st choice I suitable ROLL
FEATURES Carbide long shank for extended overhang on blind and through hole application. Specifi c design for Cast Iron and Brass application. 1.5P chamfer for blind hole application, 3P chamfer for through hole application.
JIS-LS-N-CT
TYPE: CT_005 TYPE: CT_008
CARBIDE
K K
JIS DCON DCON
THL LK THL LK
LONG K K
LF LF
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
GAUGES
TYPE: CT_011
THL
LF
DCON
LK
K
K
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M3X05 | P3 | 2.5 | 2.56 | TY3.0GRAWB3E | 3P | 100 | 11 | - | - | 4 | 3.2 | 6 | 3 | 005 | f |
| . | P3 | 2.5 | 2.56 | TY3.0GRAWBAE | 1.5P | 100 | 11 | - | - | 4 | 3.2 | 6 | 3 | 005 | f |
| M4X07 | P3 | 3.3 | 3.38 | TY4.0IRAWB3E | 3P | 100 | 13 | - | - | 5 | 4 | 7 | 4 | 005 | f |
| . | P3 | 3.3 | 3.38 | TY4.0IRAWBAE | 1.5P | 100 | 13 | - | - | 5 | 4 | 7 | 4 | 005 | f |
| M5X08 | P3 | 4.2 | 4.28 | TY5.0KRAWB3E | 3P | 100 | 16 | - | - | 5.5 | 4.5 | 7 | 4 | 005 | f |
| . | P3 | 4.2 | 4.28 | TY5.0KRAWBAE | 1.5P | 100 | 16 | - | - | 5.5 | 4.5 | 7 | 4 | 005 | f |
| M6X1 | P3 | 5 | 5.09 | TY6.0MRAWB3E | 3P | 100 | 19 | - | - | 6 | 4.5 | 7 | 4 | 008 | f |
| P3 | 5 | 5.09 | TY6.0MRAWBAE | 1.5P | 100 | 19 | - | - | 6 | 4.5 | 7 | 4 | 008 | f |
