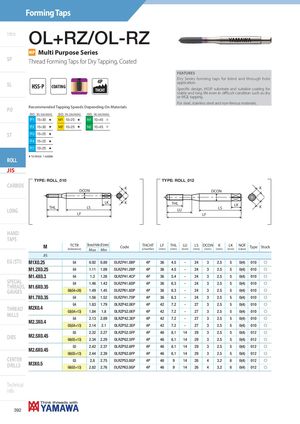

OL+RZ/OL-RZ
MP Multi Purpose Series
SP Thread Forming Taps for Dry Tapping, Coated
FEATURES Dry Series forming taps for blind and through hole 4P application.
SL HSS-P
COATING
THCHT Specific design, HSSP substrate and suitable coating for stable and long life even in diffi cult condition such as dry or MQL tapping. For steel, stainless steel and non-ferrous materials. PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 15÷30 | H | M1 10÷25 | H | N1 | 10÷45 | I | |
| P2 | 15÷30 | H | M2 10÷25 | H | N2 | 10÷45 | I | |
| ST | P3 | 15÷25 | H | |||||
| P4 | 15÷25 | H | ||||||
| P7 | 10÷25 | H |
H 1st choice I suitable ROLL JIS JIS-OL+RZ/OL-RZ TYPE: ROLL_010 TYPE: ROLL_012
CARBIDE
K K DCON DCON
| LK | K | THL | |
| LK |
THL LS LS K
LONG LU LF LF
HAND
TAPS
| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | |||||||||||||||
| M1X0.25 | G4 | 0.92 | 0.89 | OLRZP41.0BP | 4P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M1.2X0.25 | G4 | 1.11 | 1.09 | OLRZP41.2BP | 4P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M1.4X0.3 | G4 | 1.3 | 1.26 | OLRZP41.4CP | 4P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M16X035 | G4 | 1.46 | 1.43 | OLRZP41.6DP | 4P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| .. | G6(G4+26) | 1.49 | 1.45 | OLRZP61.6DP | 4P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M1.7X0.35 | G4 | 1.56 | 1.52 | OLRZP41.7DP | 4P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M2X04 | G4 | 1.83 | 1.79 | OLRZP42.0EP | 4P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| . | G5(G4+13) | 1.84 | 1.8 | OLRZP52.0EP | 4P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M23X04 | G4 | 2.13 | 2.09 | OLRZP42.3EP | 4P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| .. | G5(G4+13) | 2.14 | 2.1 | OLRZP52.3EP | 4P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| M25X045 | G5 | 2.32 | 2.27 | OLRZP52.5FP | 4P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f |
| .. | G6(G5+13) | 2.34 | 2.29 | OLRZP62.5FP | 4P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f |
| M26X045 | G5 | 2.42 | 2.37 | OLRZP52.6FP | 4P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f |
| .. | G6(G5+13) | 2.44 | 2.39 | OLRZP62.6FP | 4P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f |
| M3X05 | G5 | 2.8 | 2.75 | OLRZP53.0GP | 4P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 0(4) | 012 | f |
| . | G6(G5+13) | 2.82 | 2.76 | OLRZP63.0GP | 4P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 0(4) | 012 | f |
