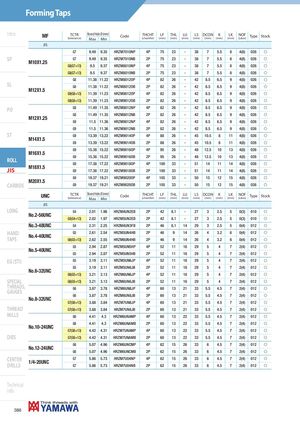

Общий каталог Yamawa 2021 - страница 385
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | |||||||||||||||
| G7 | 9.49 | 9.35 | HRZM7010NP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| M10X125 | G7 | 9.49 | 9.35 | HRZM7010NB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f |
| . | G8(G7+13) | 9.5 | 9.37 | HRZM8010NP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f |
| G8(G7+13) | 9.5 | 9.37 | HRZM8010NB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| G8 | 11.38 | 11.22 | HRZM8012OP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G8 | 11.38 | 11.22 | HRZM8012OB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| M12X1.5 | G9(G8+13) | 11.39 | 11.23 | HRZM9012OP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| G9(G8+13) | 11.39 | 11.23 | HRZM9012OB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G8 | 11.49 | 11.35 | HRZM8012NP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| MX | G8 | 11.49 | 11.35 | HRZM8012NB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| 121.25 | G9 | 11.5 | 11.36 | HRZM9012NP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f |
| G9 | 11.5 | 11.36 | HRZM9012NB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| M14X15 | G9 | 13.39 | 13.22 | HRZM9014OP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f |
| . | G9 | 13.39 | 13.22 | HRZM9014OB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4(8) | 026 | f |
| G9 | 15.38 | 15.22 | HRZM9016OP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f | |
| M16X1.5 | G9 | 15.38 | 15.22 | HRZM9016OB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4(8) | 026 | f |
| G9 | 17.38 | 17.22 | HRZM9018OP | 4P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4(8) | 026 | f | |
| M18X1.5 | G9 | 17.38 | 17.22 | HRZM9018OB | 2P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4(8) | 026 | f |
| G9 | 19.37 | 19.21 | HRZM9020OP | 4P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4(8) | 026 | f | |
| M20X1.5 | G9 | 19.37 | 19.21 | HRZM9020OB | 2P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4(8) | 026 | f |
| UNC | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | |||||||||||||||
| G4 | 2.01 | 1.96 | HRZM4UN2EB | 2P | 42 | 8.1 | - | 27 | 3 | 2.5 | 5 | 0(3) | 010 | f | |
| No.2-56UNC | G5(G4+13) | 2.02 | 1.97 | HRZM5UN2EB | 2P | 42 | 8.1 | - | 27 | 3 | 2.5 | 5 | 0(3) | 010 | f |
| No.3-48UNC | G4 | 2.31 | 2.25 | HRZM4UN3FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f |
| G5 | 2.61 | 2.54 | HRZM5UN4HB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 0(4) | 012 | f | |
| No.4-40UNC | G6(G5+13) | 2.62 | 2.55 | HRZM6UN4HB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 0(4) | 012 | f |
| G5 | 2.94 | 2.87 | HRZM5UN5HP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 012 | f | |
| No.5-40UNC | G5 | 2.94 | 2.87 | HRZM5UN5HB | 2P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 012 | f |
| G5 | 3.19 | 3.11 | HRZM5UN6JP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 012 | f | |
| N632UNC | G5 | 3.19 | 3.11 | HRZM5UN6JB | 2P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 012 | f |
| o.- | G6(G5+13) | 3.21 | 3.13 | HRZM6UN6JP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 012 | f |
| G6(G5+13) | 3.21 | 3.13 | HRZM6UN6JB | 2P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 012 | f | |
| G6 | 3.87 | 3.78 | HRZM6UN8JP | 4P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f | |
| G6 | 3.87 | 3.78 | HRZM6UN8JB | 2P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f | |
| No.8-32UNC | G7(G6+13) | 3.88 | 3.84 | HRZM7UN8JP | 4P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f |
| G7(G6+13) | 3.88 | 3.84 | HRZM7UN8JB | 2P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f | |
| G6 | 4.41 | 4.3 | HRZM6UNAMP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f | |
| N1024UNC | G6 | 4.41 | 4.3 | HRZM6UNAMB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f |
| o.- | G7(G6+13) | 4.42 | 4.31 | HRZM7UNAMP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f |
| G7(G6+13) | 4.42 | 4.31 | HRZM7UNAMB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 2(4) | 012 | f | |
| G6 | 5.07 | 4.96 | HRZM6UNCMP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 2(4) | 012 | f | |
| No.12-24UNC | G6 | 5.07 | 4.96 | HRZM6UNCMB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 2(4) | 012 | f |
| G7 | 5.86 | 5.73 | HRZM7U04NP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 2(4) | 012 | f | |
| 1/4-20UNC | G7 | 5.86 | 5.73 | HRZM7U04NB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 2(4) | 012 | f |
SL
ROLL
THREADS,
