Каталоги Yamawa твердосплавные метчики для закаленной стали

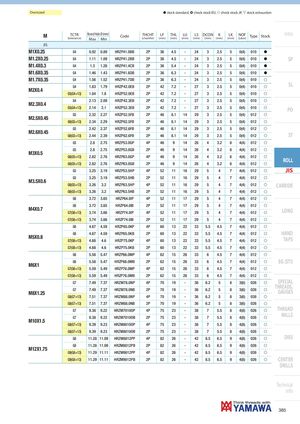

| M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | Intro |
| JIS | ||||||||||||||||
| M1X0.25 | G4 | 0.92 | 0.89 | HRZP41.0BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | h | |
| M1.2X0.25 | G4 | 1.11 | 1.09 | HRZP41.2BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | h | SP |
| M1.4X0.3 | G4 | 1.3 | 1.26 | HRZP41.4CB | 2P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | h | |
| M1.6X0.35 | G4 | 1.46 | 1.43 | HRZP41.6DB | 2P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | h | |
| M1.7X0.35 | G4 | 1.56 | 1.52 | HRZP41.7DB | 2P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| G4 | 1.83 | 1.79 | HRZP42.0EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | SL | |
| M2X0.4 | G5(G4+13) | 1.84 | 1.8 | HRZP52.0EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| G4 | 2.13 | 2.09 | HRZP42.3EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | ||
| M2.3X0.4 | G5(G4+13) | 2.14 | 2.1 | HRZP52.3EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 010 | f | PO |
| M25X045 | G5 | 2.32 | 2.27 | HRZP52.5FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | |
| .. | G6(G5+13) | 2.34 | 2.29 | HRZP62.5FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | |
| M26X045 | G5 | 2.42 | 2.37 | HRZP52.6FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | |
| .. | G6(G5+13) | 2.44 | 2.39 | HRZP62.6FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 012 | f | ST |
| G5 | 2.8 | 2.75 | HRZP53.0GP | 4P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4(4) | 012 | f | ||
| M3X05 | G5 | 2.8 | 2.75 | HRZP53.0GB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4(4) | 012 | f | |
| . | G6(G5+13) | 2.82 | 2.76 | HRZP63.0GP | 4P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4(4) | 012 | f | ROLL |
| G6(G5+13) | 2.82 | 2.76 | HRZP63.0GB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 4(4) | 012 | f | ||
| G5 | 3.25 | 3.19 | HRZP53.5HP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | JIS | |
| MX | G5 | 3.25 | 3.19 | HRZP53.5HB | 2P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | |
| 3.50.6 | G6(G5+13) | 3.26 | 3.2 | HRZP63.5HP | 4P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | CARBIDE |
| G6(G5+13) | 3.26 | 3.2 | HRZP63.5HB | 2P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | ||
| G6 | 3.72 | 3.65 | HRZP64.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | ||
| G6 | 3.72 | 3.65 | HRZP64.0IB | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | ||
| M4X0.7 | G7(G6+13) | 3.74 | 3.66 | HRZP74.0IP | 4P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | LONG |
| G7(G6+13) | 3.74 | 3.66 | HRZP74.0IB | 2P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4(4) | 012 | f | ||
| G6 | 4.67 | 4.59 | HRZP65.0KP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4(4) | 012 | f | ||
| G6 | 4.67 | 4.59 | HRZP65.0KB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4(4) | 012 | f | HAND | |
| M5X0.8 | G7(G6+13) | 4.68 | 4.6 | HRZP75.0KP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4(4) | 012 | f | TAPS |
| G7(G6+13) | 4.68 | 4.6 | HRZP75.0KB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4(4) | 012 | f | ||
| G6 | 5.58 | 5.47 | HRZP66.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | ||
| G6 | 5.58 | 5.47 | HRZP66.0MB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | EG (STI) | |
| M6X1 | G7(G6+13) | 5.59 | 5.49 | HRZP76.0MP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | |
| G7(G6+13) | 5.59 | 5.49 | HRZP76.0MB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4(4) | 012 | f | ||
| G7 | 7.49 | 7.37 | HRZM78.0NP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | SPECIAL | |
| G7 | 7.49 | 7.37 | HRZM78.0NB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | THREADS, GAUGES | |
| M8X1.25 | G8(G7+13) | 7.51 | 7.37 | HRZM88.0NP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | |
| G8(G7+13) | 7.51 | 7.37 | HRZM88.0NB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3(6) | 026 | f | ||
| G7 | 9.38 | 9.22 | HRZM7010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | THREAD | |
| G7 | 9.38 | 9.22 | HRZM7010OB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | MILLS | |
| M10X1.5 | G8(G7+13) | 9.39 | 9.23 | HRZM8010OP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | |
| G8(G7+13) | 9.39 | 9.23 | HRZM8010OB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4(8) | 026 | f | ||
| G8 | 11.28 | 11.09 | HRZM8012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | DIES | |
| G8 | 11.28 | 11.09 | HRZM8012PB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | ||
| M12X1.75 | G9(G8+13) | 11.29 | 11.11 | HRZM9012PP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4(8) | 026 | f | |
| G9(G8+13) | 1129 | 1111 | HRZM9012PB | 2P | 82 | 26 | - | 42 | 85 | 65 | 9 | 4(8) | 026 | f | CENTER | |
| . | . | . | . | DRILLS |
