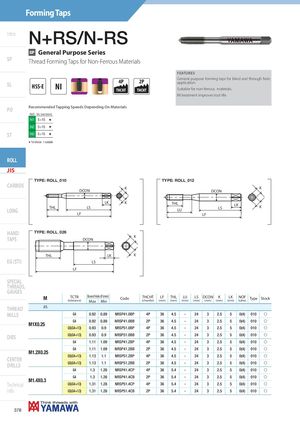

N+RS/N-RS
GP General Purpose Series
SP Thread Forming Taps for Non-Ferrous Materials
4P 2P
SL HSS-E NI
THCHT THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min)
| N1 | 5÷15 | H | |
| N2 | 5÷15 | H | |
| ST | N3 | 5÷15 | H |
H 1st choice I suitable
FEATURES General purpose forming taps for blind and through hole application. Suitable for non-ferrous materials. NI treatment improves tool life.
ROLL
JIS JIS-N+RS/N-RS TYPE: ROLL_010 TYPE: ROLL_012
CARBIDE
K K DCON DCON
| LK | K | THL | |
| LK |
THL LS LS K
LONG LU LF LF
HAND TYPE: ROLL_026 TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THL LK K
LS LF
| M | TCTR (tolerance) | Bored Ho Max | le Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock |
| JIS | |||||||||||||||
| G4 | 0.92 | 0.89 | NRSP41.0BP | 4P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| M1X025 | G4 | 0.92 | 0.89 | NRSP41.0BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| . | G5(G4+13) | 0.93 | 0.9 | NRSP51.0BP | 4P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| G5(G4+13) | 0.93 | 0.9 | NRSP51.0BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| G4 | 1.11 | 1.09 | NRSP41.2BP | 4P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| M12X025 | G4 | 1.11 | 1.09 | NRSP41.2BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| .. | G5(G4+13) | 1.13 | 1.1 | NRSP51.2BP | 4P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| G5(G4+13) | 1.13 | 1.1 | NRSP51.2BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| G4 | 1.3 | 1.26 | NRSP41.4CP | 4P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f | |
| M14X03 | G4 | 1.3 | 1.26 | NRSP41.4CB | 2P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| .. | G5(G4+13) | 1.31 | 1.28 | NRSP51.4CP | 4P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
| G5(G4+13) | 1.31 | 1.28 | NRSP51.4CB | 2P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 010 | f |
