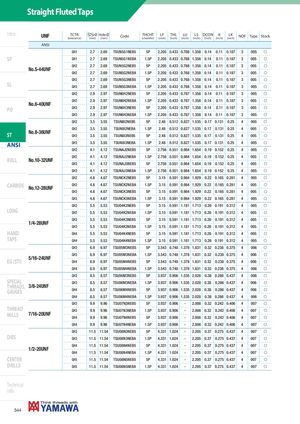

| Intro | UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NO | F Type | Stock |
| ANSI | ||||||||||||||||
| GH1 | 2.7 | 2.69 | TSUN5G1NEB5 | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| SP | GH1 | 2.7 | 2.69 | TSUN5G1NEBA | 1.5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | |
| No5-44UNF | GH2 | 2.7 | 2.69 | TSUN5G2NEB5 | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | |
| . | GH2 | 2.7 | 2.69 | TSUN5G2NEBA | 1.5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | |
| GH3 | 2.7 | 2.69 | TSUN5G3NEB5 | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| SL | GH3 | 2.7 | 2.69 | TSUN5G3NEBA | 1.5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | |
| GH2 | 2.9 | 2.97 | TSUN6H2NEB5 | 5P | 2.205 | 0.433 | 0.787 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| No6-40UNF | GH2 | 2.9 | 2.97 | TSUN6H2NEBA | 1.5P | 2.205 | 0.433 | 0.787 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | |
| PO | . | GH3 | 2.9 | 2.97 | TSUN6H3NEB5 | 5P | 2.205 | 0.433 | 0.787 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f |
| GH3 | 2.9 | 2.97 | TSUN6H3NEBA | 1.5P | 2.205 | 0.433 | 0.787 | 1.358 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| GH2 | 3.5 | 3.55 | TSUN8I2NEB5 | 5P | 2.48 | 0.512 | 0.827 | 1.535 | 0.17 | 0.131 | 0.25 | 4 | 005 | f | ||
| GH2 | 3.5 | 3.55 | TSUN8I2NEBA | 1.5P | 2.48 | 0.512 | 0.827 | 1.535 | 0.17 | 0.131 | 0.25 | 4 | 005 | f | ||
| ST | No.8-36UNF | GH3 | 3.5 | 3.55 | TSUN8I3NEB5 | 5P | 2.48 | 0.512 | 0.827 | 1.535 | 0.17 | 0.131 | 0.25 | 4 | 005 | f |
| ANSI | GH3 | 3.5 | 3.55 | TSUN8I3NEBA | 1.5P | 2.48 | 0.512 | 0.827 | 1.535 | 0.17 | 0.131 | 0.25 | 4 | 005 | f | |
| GH2 | 4.1 | 4.12 | TSUNAJ2NEB5 | 5P | 2.756 | 0.551 | 0.984 | 1.654 | 0.19 | 0.152 | 0.25 | 4 | 005 | f | ||
| ROLL | No10-32UNF | GH2 | 4.1 | 4.12 | TSUNAJ2NEBA | 1.5P | 2.756 | 0.551 | 0.984 | 1.654 | 0.19 | 0.152 | 0.25 | 4 | 005 | f |
| . | GH3 | 4.1 | 4.12 | TSUNAJ3NEB5 | 5P | 2.756 | 0.551 | 0.984 | 1.654 | 0.19 | 0.152 | 0.25 | 4 | 005 | f | |
| GH3 | 4.1 | 4.12 | TSUNAJ3NEBA | 1.5P | 2.756 | 0.551 | 0.984 | 1.654 | 0.19 | 0.152 | 0.25 | 4 | 005 | f | ||
| GH2 | 4.6 | 4.67 | TSUNCK2NEB5 | 5P | 3.15 | 0.591 | 0.984 | 1.929 | 0.22 | 0.165 | 0.281 | 4 | 005 | f | ||
| CARBIDE | GH2 | 4.6 | 4.67 | TSUNCK2NEBA | 1.5P | 3.15 | 0.591 | 0.984 | 1.929 | 0.22 | 0.165 | 0.281 | 4 | 005 | f | |
| No.12-28UNF | GH3 | 4.6 | 4.67 | TSUNCK3NEB5 | 5P | 3.15 | 0.591 | 0.984 | 1.929 | 0.22 | 0.165 | 0.281 | 4 | 005 | f | |
| GH3 | 4.6 | 4.67 | TSUNCK3NEBA | 1.5P | 3.15 | 0.591 | 0.984 | 1.929 | 0.22 | 0.165 | 0.281 | 4 | 005 | f | ||
| GH2 | 5.5 | 5.53 | TSU04K2NEB5 | 5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 4 | 005 | f | ||
| LONG | GH2 | 5.5 | 5.53 | TSU04K2NEBA | 1.5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 4 | 005 | f | |
| /NF | GH3 | 5.5 | 5.53 | TSU04K3NEB5 | 5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 4 | 005 | f | |
| 14-28U | GH3 | 5.5 | 5.53 | TSU04K3NEBA | 1.5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 4 | 005 | f | |
| HAND | GH4 | 5.5 | 5.53 | TSU04K4NEB5 | 5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 4 | 005 | f | |
| TAPS | GH4 | 5.5 | 5.53 | TSU04K4NEBA | 1.5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 4 | 005 | f | |
| GH3 | 6.9 | 6.97 | TSU05M3NEB5 | 5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 4 | 006 | f | ||
| GH3 | 6.9 | 6.97 | TSU05M3NEBA | 1.5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 4 | 006 | f | ||
| EG (STI) | 5/16-24UNF | GH4 | 6.9 | 6.97 | TSU05M4NEB5 | 5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 4 | 006 | f |
| GH4 | 6.9 | 6.97 | TSU05M4NEBA | 1.5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 4 | 006 | f | ||
| GH3 | 8.5 | 8.57 | TSU06M3NEB5 | 5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f | ||
| SPECIAL | 3/824UNF | GH3 | 8.5 | 8.57 | TSU06M3NEBA | 1.5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f |
| THREADS, GAUGES | - | GH4 | 8.5 | 8.57 | TSU06M4NEB5 | 5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f |
| GH4 | 8.5 | 8.57 | TSU06M4NEBA | 1.5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 4 | 006 | f | ||
| GH3 | 9.9 | 9.96 | TSU07N3NEB5 | 5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f | ||
| THREAD | GH3 | 9.9 | 9.96 | TSU07N3NEBA | 1.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f | |
| MILLS | 7/16-20UNF | GH4 | 9.9 | 9.96 | TSU07N4NEB5 | 5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f |
| GH4 | 9.9 | 9.96 | TSU07N4NEBA | 1.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 4 | 007 | f | ||
| GH3 | 11.5 | 11.54 | TSU08N3NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 4 | 007 | f | ||
| DIES | GH3 | 11.5 | 11.54 | TSU08N3NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 4 | 007 | f | |
| GH4 | 11.5 | 11.54 | TSU08N4NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 4 | 007 | f | ||
| 1/2-20UNF | GH4 | 11.5 | 11.54 | TSU08N4NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 4 | 007 | f | |
| CENTER | GH5 | 11.5 | 11.54 | TSU08N5NEB5 | 5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 4 | 007 | f | |
| DRILLS | GH5 | 11.5 | 11.54 | TSU08N5NEBA | 1.5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 4 | 007 | f |
