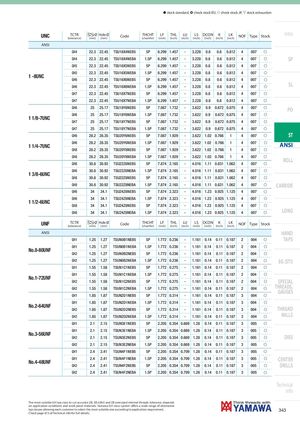

| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | Intro |
| ANSI | ||||||||||||||||
| GH4 | 22.3 | 22.45 | TSU16X4NEB5 | 5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | ||
| GH4 | 22.3 | 22.45 | TSU16X4NEBA | 1.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | SP | |
| GH5 | 22.3 | 22.45 | TSU16X5NEB5 | 5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | ||
| 1 -8UNC | GH5 | 22.3 | 22.45 | TSU16X5NEBA | 1.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | |
| GH6 | 22.3 | 22.45 | TSU16X6NEB5 | 5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | ||
| GH6 | 22.3 | 22.45 | TSU16X6NEBA | 1.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | SL | |
| GH7 | 22.3 | 22.45 | TSU16X7NEB5 | 5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | ||
| GH7 | 22.3 | 22.45 | TSU16X7NEBA | 1.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 4 | 007 | f | ||
| GH6 | 25 | 25.17 | TSU18Y6NEB5 | 5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | PO | |
| 1 1/87UNC | GH6 | 25 | 25.17 | TSU18Y6NEBA | 1.5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | |
| - | GH7 | 25 | 25.17 | TSU18Y7NEB5 | 5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | |
| GH7 | 25 | 25.17 | TSU18Y7NEBA | 1.5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | ||
| GH6 | 28.2 | 28.35 | TSU20Y6NEB5 | 5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | ST | |
| 1 1/4-7UNC | GH6 | 28.2 | 28.35 | TSU20Y6NEBA | 1.5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | ANSI |
| GH8 | 28.2 | 28.35 | TSU20Y8NEB5 | 5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | ||
| GH8 | 28.2 | 28.35 | TSU20Y8NEBA | 1.5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | ||
| GH6 | 30.8 | 30.92 | TSU22Z6NEB5 | 5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | ROLL | |
| 1 3/8-6UNC | GH6 | 30.8 | 30.92 | TSU22Z6NEBA | 1.5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | |
| GH8 | 30.8 | 30.92 | TSU22Z8NEB5 | 5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | ||
| GH8 | 30.8 | 30.92 | TSU22Z8NEBA | 1.5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | CARBIDE | |
| GH6 | 34 | 34.1 | TSU24Z6NEB5 | 5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | ||
| GH6 | 34 | 34.1 | TSU24Z6NEBA | 1.5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | ||
| 1 1/2-6UNC | GH8 | 34 | 34.1 | TSU24Z8NEB5 | 5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | |
| GH8 | 34 | 34.1 | TSU24Z8NEBA | 1.5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | LONG | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | |
| ANSI | ||||||||||||||||
| HAND | ||||||||||||||||
| GH1 | 1.25 | 1.27 | TSUN0B1NEB5 | 5P | 1.772 | 0.236 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | TAPS | |
| GH1 | 1.25 | 1.27 | TSUN0B1NEBA | 1.5P | 1.772 | 0.236 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | ||
| No.0-80UNF | GH2 | 1.25 | 1.27 | TSUN0B2NEB5 | 5P | 1.772 | 0.236 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | |
| GH2 | 1.25 | 1.27 | TSUN0B2NEBA | 1.5P | 1.772 | 0.236 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | EG (STI) | |
| GH1 | 1.55 | 1.58 | TSUN1C1NEB5 | 5P | 1.772 | 0.275 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | ||
| N172UNF | GH1 | 1.55 | 1.58 | TSUN1C1NEBA | 1.5P | 1.772 | 0.275 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | |
| o.- | GH2 | 1.55 | 1.58 | TSUN1C2NEB5 | 5P | 1.772 | 0.275 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | SPECIAL |
| GH2 | 1.55 | 1.58 | TSUN1C2NEBA | 1.5P | 1.772 | 0.275 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | THREADS, GAUGES | |
| GH1 | 1.85 | 1.87 | TSUN2D1NEB5 | 5P | 1.772 | 0.314 | - | 1.161 | 0.14 | 0.11 | 0.187 | 3 | 004 | f | ||
| GH1 | 1.85 | 1.87 | TSUN2D1NEBA | 1.5P | 1.772 | 0.314 | - | 1.161 | 0.14 | 0.11 | 0.187 | 3 | 004 | f | ||
| No.2-64UNF | ||||||||||||||||
| GH2 | 1.85 | 1.87 | TSUN2D2NEB5 | 5P | 1.772 | 0.314 | - | 1.161 | 0.14 | 0.11 | 0.187 | 3 | 004 | f | THREAD | |
| GH2 | 1.85 | 1.87 | TSUN2D2NEBA | 1.5P | 1.772 | 0.314 | - | 1.161 | 0.14 | 0.11 | 0.187 | 3 | 004 | f | MILLS | |
| GH1 | 2.1 | 2.15 | TSUN3E1NEB5 | 5P | 2.205 | 0.354 | 0.669 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| GH1 | 2.1 | 2.15 | TSUN3E1NEBA | 1.5P | 2.205 | 0.354 | 0.669 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| No.3-56UNF | GH2 | 2.1 | 2.15 | TSUN3E2NEB5 | 5P | 2.205 | 0.354 | 0.669 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | DIES |
| GH2 | 2.1 | 2.15 | TSUN3E2NEBA | 1.5P | 2.205 | 0.354 | 0.669 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| GH1 | 2.4 | 2.41 | TSUN4F1NEB5 | 5P | 2.205 | 0.354 | 0.709 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | ||
| No4-48UNF | GH1 | 2.4 | 2.41 | TSUN4F1NEBA | 1.5P | 2.205 | 0.354 | 0.709 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | CENTER |
| . | GH2 | 2.4 | 2.41 | TSUN4F2NEB5 | 5P | 2.205 | 0.354 | 0.709 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f | DRILLS |
| GH2 | 2.4 | 2.41 | TSUN4F2NEBA | 1.5P | 2.205 | 0.354 | 0.709 | 1.28 | 0.14 | 0.11 | 0.187 | 3 | 005 | f |
