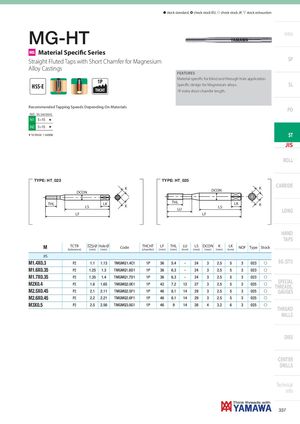

MG-HT
MS Material Specifi c Series
Straight Fluted Taps with Short Chamfer for Magnesium SP
Alloy Castings
FEATURES Material specifi c for blind and through hole application.
1P
HSS-E Specifi c design for Magnesium alloys. SL
THCHT 1P extra short chamfer length.
Recommended Tapping Speeds Depending On Materials PO ISO Vc (m/min)
| N1 | 5÷15 | H |
| N2 | 5÷15 | H |
H 1st choice I suitable ST JIS ROLL JIS-MG-HT
TYPE: HT_023 TYPE: HT_025
CARBIDE
K K DCON DCON THL
THL LK LK K
LS K LS
LU LONG LF LF
HAND
TAPS
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M1.4X0.3 | P2 | 1.1 | 1.13 | TMGMQ1.4C1 | 1P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 3 | 023 | f |
| M1.6X0.35 | P2 | 1.25 | 1.3 | TMGMQ1.6D1 | 1P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 023 | f |
| M1.7X0.35 | P2 | 1.35 | 1.4 | TMGMQ1.7D1 | 1P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 023 | f |
| M2X0.4 | P2 | 1.6 | 1.65 | TMGMQ2.0E1 | 1P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 025 | f |
| M2.5X0.45 | P2 | 2.1 | 2.11 | TMGMQ2.5F1 | 1P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 025 | f |
| M2.6X0.45 | P2 | 2.2 | 2.21 | TMGMQ2.6F1 | 1P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 025 | f |
| M3X0.5 | P2 | 2.5 | 2.56 | TMGMQ3.0G1 | 1P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 025 | f |
