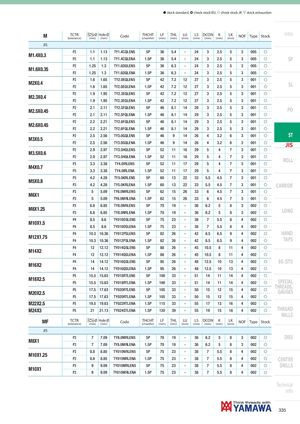

Общий каталог Yamawa 2021 - страница 334
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | P2 | 1.1 | 1.13 | TY1.4CQLEN5 | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | |
| M1.4X0.3 | P2 | 1.1 | 1.13 | TY1.4CQLENA | 1.5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | SP |
| M16X035 | P2 | 1.25 | 1.3 | TY1.6DQLEN5 | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | |
| .. | P2 | 1.25 | 1.3 | TY1.6DQLENA | 1.5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | |
| M2X04 | P2 | 1.6 | 1.65 | TY2.0EQLEN5 | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| . | P2 | 1.6 | 1.65 | TY2.0EQLENA | 1.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | SL |
| M23X04 | P2 | 1.9 | 1.95 | TY2.3EQLEN5 | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| .. | P2 | 1.9 | 1.95 | TY2.3EQLENA | 1.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| P2 | 2.1 | 2.11 | TY2.5FQLEN5 | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | PO | |
| M2.5X0.45 | P2 | 2.1 | 2.11 | TY2.5FQLENA | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| P2 | 2.2 | 2.21 | TY2.6FQLEN5 | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M2.6X0.45 | P2 | 2.2 | 2.21 | TY2.6FQLENA | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| M3X05 | P2 | 2.5 | 2.56 | TY3.0GQLEN5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ST |
| . | P2 | 2.5 | 2.56 | TY3.0GQLENA | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | JIS |
| MX | P2 | 2.9 | 2.97 | TY3.5HQLEN5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| 3.50.6 | P2 | 2.9 | 2.97 | TY3.5HQLENA | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P3 | 3.3 | 3.38 | TY4.0IRLEN5 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ROLL | |
| M4X0.7 | P3 | 3.3 | 3.38 | TY4.0IRLENA | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P3 | 4.2 | 4.28 | TY5.0KRLEN5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| M5X0.8 | P3 | 4.2 | 4.28 | TY5.0KRLENA | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | CARBIDE |
| P3 | 5 | 5.09 | TY6.0MRLEN5 | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| M6X1 | P3 | 5 | 5.09 | TY6.0MRLENA | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| P3 | 6.8 | 6.85 | TY8.0NRLEN5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | ||
| M8X1.25 | P3 | 6.8 | 6.85 | TY8.0NRLENA | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | LONG |
| P4 | 8.5 | 8.6 | TY010OSLEN5 | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | ||
| M10X1.5 | P4 | 8.5 | 8.6 | TY010OSLENA | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | |
| P4 | 10.3 | 10.36 | TY012PSLEN5 | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | HAND | |
| M12X1.75 | P4 | 10.3 | 10.36 | TY012PSLENA | 1.5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 4 | 002 | f | TAPS |
| P4 | 12 | 12.12 | TY014QSLEN5 | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | ||
| M14X2 | P4 | 12 | 12.12 | TY014QSLENA | 1.5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 4 | 002 | f | |
| P4 | 14 | 14.12 | TY016QSLEN5 | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | EG (STI) | |
| M16X2 | P4 | 14 | 14.12 | TY016QSLENA | 1.5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 4 | 002 | f | |
| P5 | 15.5 | 15.63 | TY018RTLEN5 | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4 | 002 | f | ||
| M18X2.5 | P5 | 15.5 | 15.63 | TY018RTLENA | 1.5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 4 | 002 | f | SPECIAL |
| P5 | 17.5 | 17.63 | TY020RTLEN5 | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | THREADS, GAUGES | |
| M20X2.5 | P5 | 17.5 | 17.63 | TY020RTLENA | 1.5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 4 | 002 | f | |
| M22X2.5 | P5 | 19.5 | 19.63 | TY022RTLENA | 1.5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 4 | 002 | f | |
| M24X3 | P5 | 21 | 21.13 | TY024STLENA | 1.5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 4 | 002 | f | THREAD MILLS |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| P3 | 7 | 7.09 | TY8.0MRLEN5 | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | DIES | |
| M8X1 | P3 | 7 | 7.09 | TY8.0MRLENA | 1.5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | |
| P3 | 8.8 | 8.85 | TY010NRLEN5 | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | ||
| M10X1.25 | P3 | 8.8 | 8.85 | TY010NRLENA | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | CENTER |
| P3 | 9 | 9.09 | TY010MRLEN5 | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f | DRILLS | |
| M10X1 | P3 | 9 | 9.09 | TY010MRLENA | 1.5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 4 | 002 | f |
