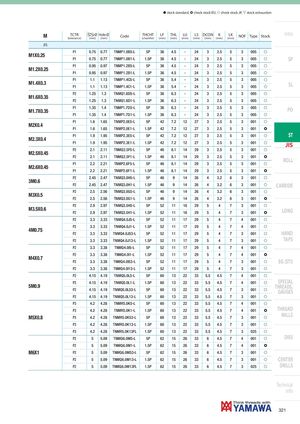

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | N | OF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| P1 | 0.75 | 0.77 | TNMP1.0B5-L | 5P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | |||
| M1X0.25 | P1 | 0.75 | 0.77 | TNMP1.0B1-L | 1.5P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | SP | |
| M12X025 | P1 | 0.95 | 0.97 | TNMP1.2B5-L | 5P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| .. | P1 | 0.95 | 0.97 | TNMP1.2B1-L | 1.5P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| M14X03 | P1 | 1.1 | 1.13 | TNMP1.4C5-L | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| .. | P1 | 1.1 | 1.13 | TNMP1.4C1-L | 1.5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | SL | |
| M16X035 | P2 | 1.25 | 1.3 | TNMQ1.6D5-L | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| .. | P2 | 1.25 | 1.3 | TNMQ1.6D1-L | 1.5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| M17X035 | P1 | 1.35 | 1.4 | TNMP1.7D5-L | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | PO | |
| .. | P1 | 1.35 | 1.4 | TNMP1.7D1-L | 1.5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 3 | 005 | f | ||
| P1 | 1.6 | 1.65 | TNMP2.0E5-L | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |||
| M2X0.4 | P1 | 1.6 | 1.65 | TNMP2.0E1-L | 1.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | ) | ||
| P1 | 1.9 | 1.95 | TNMP2.3E5-L | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | ST | ||
| M2.3X0.4 | P1 | 1.9 | 1.95 | TNMP2.3E1-L | 1.5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | JIS | |
| P2 | 2.1 | 2.11 | TNMQ2.5F5-L | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |||
| M2.5X0.45 | P2 | 2.1 | 2.11 | TNMQ2.5F1-L | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | ) | ROLL | |
| M26X045 | P1 | 2.2 | 2.21 | TNMP2.6F5-L | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| .. | P1 | 2.2 | 2.21 | TNMP2.6F1-L | 1.5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | ) | ||
| 3M06 | P2 | 2.45 | 2.47 | TNMQ3.0H5-L | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| . | P2 | 2.45 | 2.47 | TNMQ3.0H1-L | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | CARBIDE | |
| P2 | 2.5 | 2.56 | TNMQ3.0G5-L | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |||
| M3X0.5 | P2 | 2.5 | 2.56 | TNMQ3.0G1-L | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | ) | ||
| M35X06 | P2 | 2.9 | 2.97 | TNMQ3.5H5-L | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| .. | P2 | 2.9 | 2.97 | TNMQ3.5H1-L | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | ) | LONG | |
| P2 | 3.3 | 3.33 | TNMQ4.0J5-L | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | |||
| 4M075 | P2 | 3.3 | 3.33 | TNMQ4.0J1-L | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | ||
| . | P2 | 3.3 | 3.33 | TNMQ4.0J53-L | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | HAND | |
| P2 | 3.3 | 3.33 | TNMQ4.0J13-L | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | TAPS | ||
| P2 | 3.3 | 3.38 | TNMQ4.0I5-L | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | |||
| P2 | 3.3 | 3.38 | TNMQ4.0I1-L | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | ) | |||
| M4X0.7 | P2 | 3.3 | 3.38 | TNMQ4.0I53-L | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | EG (STI) | |
| P2 | 3.3 | 3.38 | TNMQ4.0I13-L | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |||
| P2 | 4.15 | 4.19 | TNMQ5.0L5-L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |||
| 5M09 | P2 | 4.15 | 4.19 | TNMQ5.0L1-L | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | SPECIAL | |
| . | P2 | 4.15 | 4.19 | TNMQ5.0L53-L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | THREADS, GAUGES | |
| P2 | 4.15 | 4.19 | TNMQ5.0L13-L | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |||
| P3 | 4.2 | 4.28 | TNMR5.0K5-L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |||
| P3 | 4.2 | 4.28 | TNMR5.0K1-L | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | ) | THREAD | ||
| M5X0.8 | P3 | 4.2 | 4.28 | TNMR5.0K53-L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | MILLS | |
| P3 | 4.2 | 4.28 | TNMR5.0K13-L | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |||
| P3 | 4.2 | 4.28 | TNMR5.0K13FL | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 025 | f | |||
| P2 | 5 | 5.09 | TNMQ6.0M5-L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | f | DIES | ||
| P2 | 5 | 5.09 | TNMQ6.0M1-L | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 4 | 001 | ) | |||
| M6X1 | P2 | 5 | 5.09 | TNMQ6.0M53-L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| P2 | 5 | 5.09 | TNMQ6.0M13-L | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | CENTER | ||
| P2 | 5 | 5.09 | TNMQ6.0M13FL | 1.5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 025 | f | DRILLS |
