Intro	MF	TCTR (tolerance)	Ø (mm)	Hole Ø (mm)	Code	THCHT (chamfer)	LF ( mm )	THL ( mm )	L ( m	U m )	LS ( mm )	DCON ( mm )	K ( mm )	LK ( mm )	NO	F Type	Stock
	JIS
		P3	9.8	9.85	TNMR011N5	5P	82	26	-		42	8.5	6.5	9	4	002	f
SP	M11X1.25	P3	9.8	9.85	TNMR011N1	1.5P	82	26	-		42	8.5	6.5	9	4	002	f
		P3	10	10.1	TNMR011M5	5P	82	26	-		42	8.5	6.5	9	4	002	f
	M11X1	P3	10	10.1	TNMR011M1	1.5P	82	26	-		42	8.5	6.5	9	4	002	)
		P3	10.3	10.33	TNMR011J5	5P	82	14	-		42	8.5	6.5	9	4	037	f
SL	M11X0.75	P3	10.3	10.33	TNMR011J1	1.5P	82	14	-		42	8.5	6.5	9	4	037	f
	M11X05	P2	10.5	10.56	TNMQ011G5	5P	82	12	-		42	8.5	6.5	9	4	037	f
	.	P2	10.5	10.56	TNMQ011G1	1.5P	82	12	-		42	8.5	6.5	9	4	037	f
PO		P3	10.5	10.6	TNMR012O5	5P	82	26	-		42	8.5	6.5	9	4	002	f
		P3	10.5	10.6	TNMR012O1	1.5P	82	26	-		42	8.5	6.5	9	4	002	)
		P4(P3+20)	10.5	10.6	TNMS012O5	5P	82	26	-		42	8.5	6.5	9	4	002	f
	M12X1.5	P4(P3+20)	10.5	10.6	TNMS012O1	1.5P	82	26	-		42	8.5	6.5	9	4	002	f
ST		P5(P3+40)	10.5	10.6	TNMT012O5	5P	82	26	-		42	8.5	6.5	9	4	002	f
JIS		P5(P3+40)	10.5	10.6	TNMT012O1	1.5P	82	26	-		42	8.5	6.5	9	4	002	f
		P4	10.8	10.85	TNMS012N5	5P	82	26	-		42	8.5	6.5	9	4	002	f
		P4	10.8	10.85	TNMS012N1	1.5P	82	26	-		42	8.5	6.5	9	4	002	)
ROLL	M12X125	P4	10.8	10.85	TNMS012N5T	5P	82	26	-		42	8.5	6.5	9	3	002	f
	.	P4	10.8	10.85	TNMS012N1T	1.5P	82	26	-		42	8.5	6.5	9	3	002	f
		P5(P4+20)	10.8	10.85	TNMT012N5	5P	82	26	-		42	8.5	6.5	9	4	002	f
CARBIDE		P5(P4+20)	10.8	10.85	TNMT012N1	1.5P	82	26	-		42	8.5	6.5	9	4	002	f
		P3	11	11.09	TNMR012M5	5P	82	26	-		42	8.5	6.5	9	4	002	f
		P3	11	11.09	TNMR012M1	1.5P	82	26	-		42	8.5	6.5	9	4	002	)
	M12X1	P4(P3+20)	11	11.09	TNMS012M5	5P	82	26	-		42	8.5	6.5	9	4	002	f
LONG		P4(P3+20)	11	11.09	TNMS012M1	1.5P	82	26	-		42	8.5	6.5	9	4	002	f
		P3	11.3	11.33	TNMR012J5	5P	82	14	-		42	8.5	6.5	9	4	037	f
	M12X0.75	P3	11.3	11.33	TNMR012J1	1.5P	82	14	-		42	8.5	6.5	9	4	037	f
HAND		P2	11.5	11.56	TNMQ012G5	5P	82	12	-		42	8.5	6.5	9	4	037	f
TAPS	M12X0.5	P2	11.5	11.56	TNMQ012G1	1.5P	82	12	-		42	8.5	6.5	9	4	037	f
		P3	11.3	11.4	TNMR013P5	5P	88	26	-		45	10.5	8	11	4	002	f
	M13X1.75	P3	11.3	11.4	TNMR013P1	1.5P	88	26	-		45	10.5	8	11	4	002	f
EG (STI)		P3	11.6	11.6	TNMR013O5	5P	88	26	-		45	10.5	8	11	4	002	f
	M13X1.5	P3	11.6	11.6	TNMR013O1	1.5P	88	26	-		45	10.5	8	11	4	002	)
		P4	11.8	11.85	TNMS013N5	5P	88	26	-		45	10.5	8	11	4	002	f
SPECIAL	M13X1.25	P4	11.8	11.85	TNMS013N1	1.5P	88	26	-		45	10.5	8	11	4	002	f
THREADS, GAUGES		P3	12	12.09	TNMR013M5	5P	88	26	-		45	10.5	8	11	4	002	f
	M13X1	P3	12	12.09	TNMR013M1	1.5P	88	26	-		45	10.5	8	11	4	002	)
		P3	12.3	12.33	TNMR013J5	5P	88	14	-		45	10.5	8	11	4	037	f
THREAD	M13X0.75	P3	12.3	12.33	TNMR013J1	1.5P	88	14	-		45	10.5	8	11	4	037	f
MILLS		P2	12.5	12.56	TNMQ013G5	5P	88	12	-		45	10.5	8	11	4	037	f
	M13X0.5	P2	12.5	12.56	TNMQ013G1	1.5P	88	12	-		45	10.5	8	11	4	037	f
		P3	12.3	12.4	TNMR014P5	5P	88	26	-		45	10.5	8	11	4	002	f
DIES	M14X1.75	P3	12.3	12.4	TNMR014P1	1.5P	88	26	-		45	10.5	8	11	4	002	f
		P3	12.5	12.6	TNMR014O5	5P	88	26	-		45	10.5	8	11	4	002	f
		P3	12.5	12.6	TNMR014O1	1.5P	88	26	-		45	10.5	8	11	4	002	)
CENTER		P4(P3+20)	12.5	12.6	TNMS014O5	5P	88	26	-		45	10.5	8	11	4	002	f
DRILLS	M14X1.5	P4(P3+20)	12.5	12.6	TNMS014O1	1.5P	88	26	-		45	10.5	8	11	4	002	f
		P5(P3+40)	12.5	12.6	TNMT014O5	5P	88	26	-		45	10.5	8	11	4	002	f
Technical		P5(P3+40)	12.5	12.6	TNMT014O1	1.5P	88	26	-		45	10.5	8	11	4	002	f
info

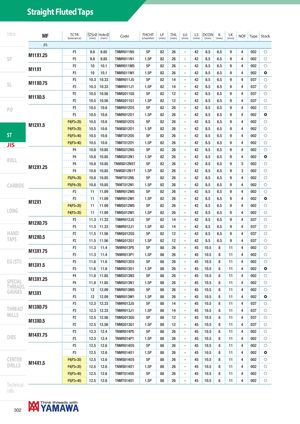

Общий каталог Yamawa 2021 - страница 301
