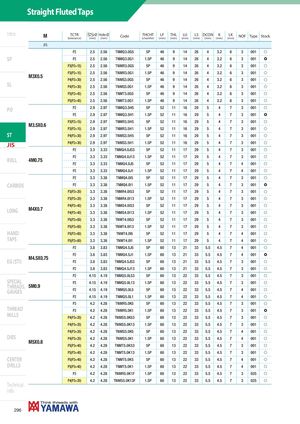

| Intro | M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NO | F Type | Stock |
| JIS | ||||||||||||||||
| P2 | 2.5 | 2.56 | TNMQ3.0G5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| SP | P2 | 2.5 | 2.56 | TNMQ3.0G1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | ) | |
| P3(P2+15) | 2.5 | 2.56 | TNMR3.0G5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| M3X05 | P3(P2+15) | 2.5 | 2.56 | TNMR3.0G1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| . | P4(P2+30) | 2.5 | 2.56 | TNMS3.0G5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| SL | P4(P2+30) | 2.5 | 2.56 | TNMS3.0G1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P5(P2+45) | 2.5 | 2.56 | TNMT3.0G5 | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| P5(P2+45) | 2.5 | 2.56 | TNMT3.0G1 | 1.5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| PO | P2 | 2.9 | 2.97 | TNMQ3.5H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P2 | 2.9 | 2.97 | TNMQ3.5H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | ) | ||
| P3(P2+15) | 2.9 | 2.97 | TNMR3.5H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| M3.5X0.6 | P3(P2+15) | 2.9 | 2.97 | TNMR3.5H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| ST | P4(P2+30) | 2.9 | 2.97 | TNMS3.5H5 | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| JIS | P4(P2+30) | 2.9 | 2.97 | TNMS3.5H1 | 1.5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P2 | 3.3 | 3.33 | TNMQ4.0J53 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| 4M075 | P2 | 3.3 | 3.33 | TNMQ4.0J13 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| ROLL | . | P2 | 3.3 | 3.33 | TNMQ4.0J5 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f |
| P2 | 3.3 | 3.33 | TNMQ4.0J1 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | ||
| P2 | 3.3 | 3.38 | TNMQ4.0I5 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| CARBIDE | P2 | 3.3 | 3.38 | TNMQ4.0I1 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | ) | |
| P3(P2+20) | 3.3 | 3.38 | TNMR4.0I53 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| P3(P2+20) | 3.3 | 3.38 | TNMR4.0I13 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| P4(P2+40) | 3.3 | 3.38 | TNMS4.0I53 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| LONG | M4X0.7 | P4(P2+40) | 3.3 | 3.38 | TNMS4.0I13 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| P5(P2+60) | 3.3 | 3.38 | TNMT4.0I53 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| P5(P2+60) | 3.3 | 3.38 | TNMT4.0I13 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| HAND | P5(P2+60) | 3.3 | 3.38 | TNMT4.0I5 | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | |
| TAPS | P5(P2+60) | 3.3 | 3.38 | TNMT4.0I1 | 1.5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 4 | 001 | f | |
| P2 | 3.8 | 3.83 | TNMQ4.5J5 | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| P2 | 3.8 | 3.83 | TNMQ4.5J1 | 1.5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | ) | ||
| EG (STI) | M4.5X0.75 | P2 | 3.8 | 3.83 | TNMQ4.5J53 | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f |
| P2 | 3.8 | 3.83 | TNMQ4.5J13 | 1.5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| P2 | 4.15 | 4.19 | TNMQ5.0L53 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| SPECIAL | P2 | 4.15 | 4.19 | TNMQ5.0L13 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| THREADS, GAUGES | 5M0.9 | P2 | 4.15 | 4.19 | TNMQ5.0L5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f |
| P2 | 4.15 | 4.19 | TNMQ5.0L1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| P3 | 4.2 | 4.28 | TNMR5.0K5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| THREAD | P3 | 4.2 | 4.28 | TNMR5.0K1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | ) | |
| MILLS | P4(P3+20) | 4.2 | 4.28 | TNMS5.0K53 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P4(P3+20) | 4.2 | 4.28 | TNMS5.0K13 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| P4(P3+20) | 4.2 | 4.28 | TNMS5.0K5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | ||
| DIES | M5X08 | P4(P3+20) | 4.2 | 4.28 | TNMS5.0K1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f |
| . | P5(P3+40) | 4.2 | 4.28 | TNMT5.0K53 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P5(P3+40) | 4.2 | 4.28 | TNMT5.0K13 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| CENTER | P5(P3+40) | 4.2 | 4.28 | TNMT5.0K5 | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| DRILLS | P5(P3+40) | 4.2 | 4.28 | TNMT5.0K1 | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| P3 | 4.2 | 4.28 | TNMR5.0K1F | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 025 | f | ||
| Technical | P4(P3+20) | 4.2 | 4.28 | TNMS5.0K13F | 1.5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 025 | f | |
| info |
