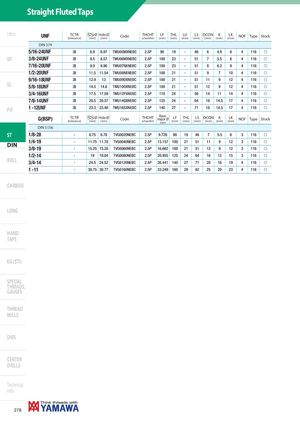

Общий каталог Yamawa 2021 - страница 277
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 374 | ||||||||||||||||
| 5/16-24UNF | 2B | 6.9 | 6.97 | TMU05MXNEBC | 2.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 4 | 116 | f | |
| SP | 3/8-24UNF | 2B | 8.5 | 8.57 | TMU06MXNEBC | 2.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 4 | 116 | f |
| 7/16-20UNF | 2B | 9.9 | 9.96 | TMU07NXNEBC | 2.5P | 100 | 23 | - | 51 | 8 | 6.2 | 9 | 4 | 116 | f | |
| 1/2-20UNF | 2B | 11.5 | 11.54 | TMU08NXNEBC | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 116 | f | |
| 9/16-18UNF | 2B | 12.9 | 13 | TMU09OXNEBC | 2.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 4 | 116 | f | |
| SL | 5/8-18UNF | 2B | 14.5 | 14.6 | TMU10OXNEBC | 2.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 4 | 116 | f |
| 3/4-16UNF | 2B | 17.5 | 17.59 | TMU12PXNEBC | 2.5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 4 | 116 | f | |
| 7/8-14UNF | 2B | 20.5 | 20.57 | TMU14QXNEBC | 2.5P | 125 | 24 | - | 64 | 18 | 14.5 | 17 | 4 | 116 | f | |
| PO | 1 -12UNF | 2B | 23.3 | 23.46 | TMU16SXNEBC | 2.5P | 140 | 27 | - | 71 | 18 | 14.5 | 17 | 4 | 116 | f |
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 5156 | ||||||||||||||||
| ST | 1/8-28 | - | 8.75 | 8.78 | TVG0020NEBC | 2.5P | 9.728 | 90 | 19 | 46 | 7 | 5.5 | 8 | 3 | 116 | f |
| DIN | 1/4-19 | - | 11.75 | 11.78 | TVG0040NEBC | 2.5P | 13.157 | 100 | 21 | 51 | 11 | 9 | 12 | 3 | 116 | f |
| 3/8-19 | - | 15.25 | 15.28 | TVG0060NEBC | 2.5P | 16.662 | 100 | 21 | 51 | 12 | 9 | 12 | 3 | 116 | f | |
| 1/2-14 | - | 19 | 19.04 | TVG0080NEBC | 2.5P | 20.955 | 125 | 24 | 64 | 16 | 12 | 15 | 3 | 116 | f | |
| ROLL | 3/4-14 | - | 24.5 | 24.52 | TVG0120NEBC | 2.5P | 26.441 | 140 | 27 | 71 | 20 | 16 | 19 | 4 | 116 | f |
| 1 -11 | - | 30.75 | 30.77 | TVG0160NEBC | 2.5P | 33.249 | 160 | 29 | 82 | 25 | 20 | 23 | 4 | 116 | f |
