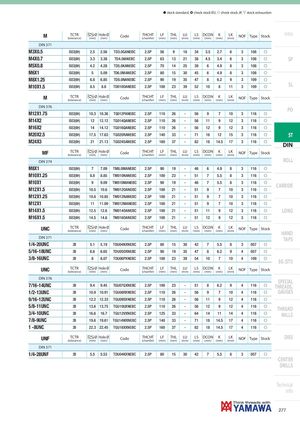

Общий каталог Yamawa 2021 - страница 276
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2(6H) | 2.5 | 2.56 | TD3.0GANEBC | 2.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 108 | f | |
| M4X0.7 | ISO2(6H) | 3.3 | 3.38 | TD4.0IANEBC | 2.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 108 | f | SP |
| M5X0.8 | ISO2(6H) | 4.2 | 4.28 | TD5.0KANEBC | 2.5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 3 | 108 | f | |
| M6X1 | ISO2(6H) | 5 | 5.09 | TD6.0MANEBC | 2.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 3 | 108 | f | |
| M8X1.25 | ISO2(6H) | 6.8 | 6.85 | TD8.0NANEBC | 2.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 109 | f | |
| M10X1.5 | ISO2(6H) | 8.5 | 8.6 | TD010OANEBC | 2.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 3 | 109 | f | SL |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | ||||||||||||||||
| M12X1.75 | ISO2(6H) | 10.3 | 10.36 | TG012PANEBC | 2.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 116 | f | PO |
| M14X2 | ISO2(6H) | 12 | 12.12 | TG014QANEBC | 2.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 116 | f | |
| M16X2 | ISO2(6H) | 14 | 14.12 | TG016QANEBC | 2.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 116 | f | |
| M20X2.5 | ISO2(6H) | 17.5 | 17.63 | TG020RANEBC | 2.5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 3 | 116 | f | ST |
| M24X3 | ISO2(6H) | 21 | 21.13 | TG024SANEBC | 2.5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 3 | 116 | f | DIN |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 374 | ROLL | |||||||||||||||
| M8X1 | ISO2(6H) | 7 | 7.09 | TM8.0MANEBC | 2.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 116 | f | |
| M10X1.25 | ISO2(6H) | 8.8 | 8.85 | TM010NANEBC | 2.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 116 | f | |
| M10X1 | ISO2(6H) | 9 | 9.09 | TM010MANEBC | 2.5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 3 | 116 | f | |
| M12X1.5 | ISO2(6H) | 10.5 | 10.6 | TM012OANEBC | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 116 | f | CARBIDE |
| M12X1.25 | ISO2(6H) | 10.8 | 10.85 | TM012NANEBC | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 116 | f | |
| M12X1 | ISO2(6H) | 11 | 11.09 | TM012MANEBC | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 116 | f | |
| M14X1.5 | ISO2(6H) | 12.5 | 12.6 | TM014OANEBC | 2.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 3 | 116 | f | LONG |
| M16X1.5 | ISO2(6H) | 14.5 | 14.6 | TM016OANEBC | 2.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 3 | 116 | f | |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | HAND TAPS | |||||||||||||||
| 1/4-20UNC | 2B | 5.1 | 5.19 | TDU04NXNEBC | 2.5P | 80 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 057 | f | |
| 5/16-18UNC | 2B | 6.6 | 6.65 | TDU05OXNEBC | 2.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 4 | 057 | f | |
| 3/8-16UNC | 2B | 8 | 8.07 | TDU06PXNEBC | 2.5P | 100 | 23 | 39 | 54 | 10 | 7 | 10 | 4 | 109 | f | EG (STI) |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | SPECIAL | |||||||||||||||
| 7/16-14UNC | 2B | 9.4 | 9.45 | TGU07QXNEBC | 2.5P | 100 | 23 | - | 51 | 8 | 6.2 | 9 | 4 | 116 | f | THREADS, |
| 1/2-13UNC | 2B | 10.9 | 10.91 | TGU08RXNEBC | 2.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4 | 116 | f | GAUGES |
| 9/16-12UNC | 2B | 12.2 | 12.33 | TGU09SXNEBC | 2.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 4 | 116 | f | |
| 5/8-11UNC | 2B | 13.6 | 13.75 | TGU10UXNEBC | 2.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 4 | 116 | f | THREAD |
| 3/4-10UNC | 2B | 16.6 | 16.7 | TGU12VXNEBC | 2.5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 4 | 116 | f | MILLS |
| 7/8-9UNC | 2B | 19.6 | 19.61 | TGU14WXNEBC | 2.5P | 140 | 33 | - | 71 | 18 | 14.5 | 17 | 4 | 116 | f | |
| 1 -8UNC | 2B | 22.3 | 22.45 | TGU16XXNEBC | 2.5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 4 | 116 | f | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | DIES |
| DIN 371 | ||||||||||||||||
| 1/4-28UNF | 2B | 5.5 | 5.53 | TDU04KXNEBC | 2.5P | 80 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 057 | f |
