Каталоги Yamawa твердосплавные метчики для закаленной стали

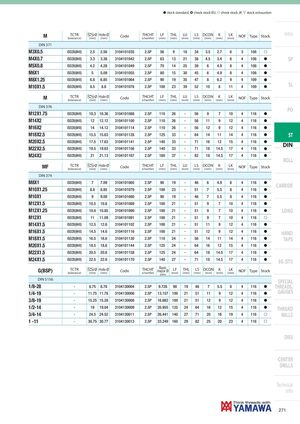

| M DIN 371 | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | 3104101035 | 2.5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 108 | f | |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | 3104101042 | 2.5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 4 | 108 | h | SP |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | 3104101049 | 2.5P | 70 | 14 | 25 | 39 | 6 | 4.9 | 8 | 4 | 108 | h | |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | 3104101055 | 2.5P | 80 | 15 | 30 | 45 | 6 | 4.9 | 8 | 4 | 108 | h | |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | 3104101064 | 2.5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 4 | 109 | h | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | 3104101078 | 2.5P | 100 | 23 | 39 | 52 | 10 | 8 | 11 | 4 | 109 | h | SL |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | PO | |||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | 3104101088 | 2.5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 4 | 116 | h | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | 3104101100 | 2.5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 4 | 116 | h | |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | 3104101114 | 2.5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 4 | 116 | h | |
| M18X2.5 | ISO2X(6HX) | 15.5 | 15.63 | 3104101128 | 2.5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 4 | 116 | h | ST |
| M20X2.5 | ISO2X(6HX) | 17.5 | 17.63 | 3104101141 | 2.5P | 140 | 33 | - | 71 | 16 | 12 | 15 | 4 | 116 | h | DIN |
| M22X2.5 | ISO2X(6HX) | 19.5 | 19.63 | 3104101156 | 2.5P | 140 | 33 | - | 71 | 18 | 14.5 | 17 | 4 | 116 | h | |
| M24X3 | ISO2X(6HX) | 21 | 21.13 | 3104101167 | 2.5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 4 | 116 | h | ROLL |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 374 | ||||||||||||||||
| M8X1 | ISO2X(6HX) | 7 | 7.09 | 3104101065 | 2.5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 4 | 116 | h | CARBIDE |
| M10X1.25 | ISO2X(6HX) | 8.8 | 8.85 | 3104101079 | 2.5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 4 | 116 | h | |
| M10X1 | ISO2X(6HX) | 9 | 9.09 | 3104101080 | 2.5P | 90 | 19 | - | 46 | 7 | 5.5 | 8 | 4 | 116 | h | |
| M12X1.5 | ISO2X(6HX) | 10.5 | 10.6 | 3104101089 | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 116 | h | |
| M12X1.25 | ISO2X(6HX) | 10.8 | 10.85 | 3104101090 | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 116 | h | LONG |
| M12X1 | ISO2X(6HX) | 11 | 11.09 | 3104101091 | 2.5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 4 | 116 | f | |
| M14X1.5 | ISO2X(6HX) | 12.5 | 12.6 | 3104101102 | 2.5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 4 | 116 | h | |
| M16X1.5 | ISO2X(6HX) | 14.5 | 14.6 | 3104101116 | 2.5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 4 | 116 | h | HAND |
| M18X1.5 | ISO2X(6HX) | 16.5 | 16.6 | 3104101130 | 2.5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 4 | 116 | h | TAPS |
| M20X1.5 | ISO2X(6HX) | 18.5 | 18.6 | 3104101144 | 2.5P | 125 | 24 | - | 64 | 16 | 12 | 15 | 4 | 116 | h | |
| M22X1.5 | ISO2X(6HX) | 20.5 | 20.6 | 3104101158 | 2.5P | 125 | 24 | - | 64 | 18 | 14.5 | 17 | 4 | 116 | h | |
| M24X1.5 | ISO2X(6HX) | 22.5 | 22.6 | 3104101170 | 2.5P | 140 | 27 | - | 71 | 18 | 14.5 | 17 | 4 | 116 | h | EG (STI) |
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 5156 | SPECIAL | |||||||||||||||
| 1/8-28 | - | 8.75 | 8.78 | 3104130004 | 2.5P | 9.728 | 90 | 19 | 46 | 7 | 5.5 | 8 | 4 | 116 | h | THREADS, |
| 1/4-19 | - | 11.75 | 11.78 | 3104130006 | 2.5P | 13.157 | 100 | 21 | 51 | 11 | 9 | 12 | 4 | 116 | h | GAUGES |
| 3/8-19 | - | 15.25 | 15.28 | 3104130008 | 2.5P | 16.662 | 100 | 21 | 51 | 12 | 9 | 12 | 4 | 116 | h | |
| 1/2-14 | - | 19 | 19.04 | 3104130009 | 2.5P | 20.955 | 125 | 24 | 64 | 16 | 12 | 15 | 4 | 116 | h | THREAD |
| 3/4-14 | - | 24.5 | 24.52 | 3104130011 | 2.5P | 26.441 | 140 | 27 | 71 | 20 | 16 | 19 | 4 | 116 | f | MILLS |
| 1 -11 | - | 30.75 | 30.77 | 3104130013 | 2.5P | 33.249 | 160 | 29 | 82 | 25 | 20 | 23 | 4 | 116 | f |
