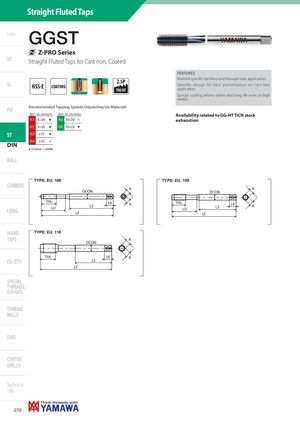

GGST
Z-PRO Series
SP Straight Fluted Taps for Cast Iron, Coated
2.5P
SL HSS-E
COATING
THCHT
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min)
| K1 | 5÷20 | H | N2 | 10÷20 | I | |
| K2 | 5÷20 | H | N4 | 10÷20 | H | |
| ST | K3 | ≤10 | H | |||
| K4 | ≤10 | I |
DIN H 1st choice I suitable ROLL
FEATURES Material specifi c for blind and through hole application. Specific design for best performance on cast iron application. Special coating allows stable and long life even at high speed.
Availability related to GG-HT TiCN stock
exhaustion
DIN-GGST
TYPE: EU_108 TYPE: EU_109
CARBIDE
K K DCON DCON
| THL | LK | THL | ||
| K | LK |
LS LS K
LONG LU LU
LF LF
HAND TYPE: EU_116
TAPS K DCON
EG (STI)
SPECIAL
THREADS,
GAUGES
THREAD
MILLS
THL LK K
LS LF
