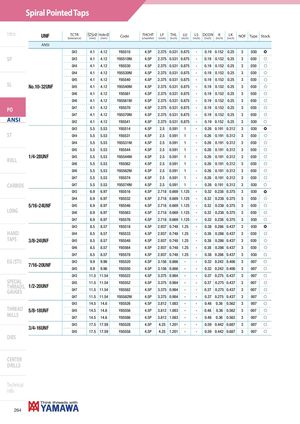

Общий каталог Yamawa 2021 - страница 263
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | ||||||||||||||||
| GH3 | 4.1 | 4.12 | Y85510 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | ) | ||
| SP | GH3 | 4.1 | 4.12 | Y85510NI | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | |
| GH4 | 4.1 | 4.12 | Y85530 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH4 | 4.1 | 4.12 | Y85530NI | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH5 | 4.1 | 4.12 | Y85540 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| SL | No.10-32UNF | GH5 | 4.1 | 4.12 | Y85540NI | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f |
| GH6 | 4.1 | 4.12 | Y85561 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH6 | 4.1 | 4.12 | Y85561NI | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| PO | GH7 | 4.1 | 4.12 | Y85570 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | |
| GH7 | 4.1 | 4.12 | Y85570NI | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| ANSI | GH2 | 4.1 | 4.12 | Y85541 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | |
| GH3 | 5.5 | 5.53 | Y85514 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | ) | ||
| ST | GH4 | 5.5 | 5.53 | Y85531 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | |
| GH4 | 5.5 | 5.53 | Y85531NI | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| GH5 | 5.5 | 5.53 | Y85544 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| ROLL | 1/4-28UNF | GH5 | 5.5 | 5.53 | Y85544NI | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f |
| GH6 | 5.5 | 5.53 | Y85562 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| GH6 | 5.5 | 5.53 | Y85562NI | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| GH7 | 5.5 | 5.53 | Y85574 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| CARBIDE | GH7 | 5.5 | 5.53 | Y85574NI | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | |
| GH3 | 6.9 | 6.97 | Y85516 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | ) | ||
| GH4 | 6.9 | 6.97 | Y85532 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | ||
| 5/16-24UNF | GH5 | 6.9 | 6.97 | Y85546 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | |
| LONG | GH6 | 6.9 | 6.97 | Y85563 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | |
| GH7 | 6.9 | 6.97 | Y85576 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | ||
| GH3 | 8.5 | 8.57 | Y85518 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | ) | ||
| HAND | GH4 | 8.5 | 8.57 | Y85533 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | |
| TAPS | 3/8-24UNF | GH5 | 8.5 | 8.57 | Y85548 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f |
| GH6 | 8.5 | 8.57 | Y85564 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | ||
| GH7 | 8.5 | 8.57 | Y85578 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | ||
| EG (STI) | GH3 | 9.9 | 9.96 | Y85520 | 4.5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | |
| 7/16-20UNF | GH5 | 9.9 | 9.96 | Y85550 | 4.5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | |
| GH3 | 11.5 | 11.54 | Y85522 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| SPECIAL | 1/220UNF | GH5 | 11.5 | 11.54 | Y85552 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f |
| THREADS, GAUGES | - | GH7 | 11.5 | 11.54 | Y85582 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f |
| GH7 | 11.5 | 11.54 | Y85582NI | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| GH3 | 14.5 | 14.6 | Y85526 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | ||
| THREAD | 5/8-18UNF | GH5 | 14.5 | 14.6 | Y85556 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f |
| MILLS | GH7 | 14.5 | 14.6 | Y85586 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | |
| GH3 | 17.5 | 17.59 | Y85528 | 4.5P | 4.25 | 1.201 | - | - | 0.59 | 0.442 | 0.687 | 3 | 007 | f | ||
| 3/4-16UNF | GH5 | 17.5 | 17.59 | Y85558 | 4.5P | 4.25 | 1.201 | - | - | 0.59 | 0.442 | 0.687 | 3 | 007 | f | |
| DIES |
