Каталоги Yamawa твердосплавные метчики для закаленной стали

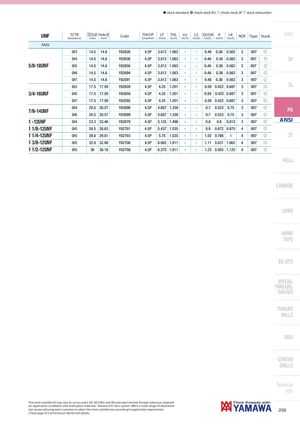

| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | Intro |
| ANSI | ||||||||||||||||
| GH3 | 14.5 | 14.6 | Y82626 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | ||
| GH4 | 14.5 | 14.6 | Y82636 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | SP | |
| 5/8-18UNF | GH5 | 14.5 | 14.6 | Y82656 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | |
| GH6 | 14.5 | 14.6 | Y82694 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | ||
| GH7 | 14.5 | 14.6 | Y82591 | 4.5P | 3.812 | 1.083 | - | - | 0.48 | 0.36 | 0.562 | 3 | 007 | f | ||
| GH3 | 17.5 | 17.59 | Y82628 | 4.5P | 4.25 | 1.201 | - | - | 0.59 | 0.422 | 0.687 | 3 | 007 | f | SL | |
| 3/4-16UNF | GH5 | 17.5 | 17.59 | Y82658 | 4.5P | 4.25 | 1.201 | - | - | 0.59 | 0.422 | 0.687 | 3 | 007 | f | |
| GH7 | 17.5 | 17.59 | Y82592 | 4.5P | 4.25 | 1.201 | - | - | 0.59 | 0.422 | 0.687 | 3 | 007 | f | ||
| 7/8-14UNF | GH4 | 20.5 | 20.57 | Y82696 | 4.5P | 4.687 | 1.339 | - | - | 0.7 | 0.523 | 0.75 | 3 | 007 | f | PO |
| GH6 | 20.5 | 20.57 | Y82699 | 4.5P | 4.687 | 1.339 | - | - | 0.7 | 0.523 | 0.75 | 3 | 007 | f | ||
| 1 -12UNF | GH4 | 23.3 | 23.46 | Y82679 | 4.5P | 5.125 | 1.496 | - | - | 0.8 | 0.6 | 0.812 | 3 | 007 | f | ANSI |
| 1 1/8-12UNF | GH5 | 26.5 | 26.63 | Y82701 | 4.5P | 5.437 | 1.535 | - | - | 0.9 | 0.672 | 0.875 | 4 | 007 | f | |
| 1 1/4-12UNF | GH5 | 29.6 | 29.81 | Y82703 | 4.5P | 5.75 | 1.535 | - | - | 1.02 | 0.766 | 1 | 4 | 007 | f | ST |
| 1 3/8-12UNF | GH5 | 32.8 | 32.98 | Y82706 | 4.5P | 6.062 | 1.811 | - | - | 1.11 | 0.831 | 1.062 | 4 | 007 | f | |
| 1 1/2-12UNF | GH5 | 36 | 36.16 | Y82708 | 4.5P | 6.375 | 1.811 | - | - | 1.23 | 0.925 | 1.125 | 4 | 007 | f |
