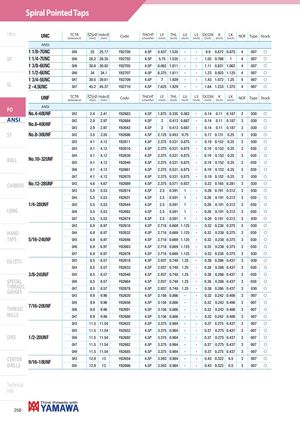

Общий каталог Yamawa 2021 - страница 257
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | ||||||||||||||||
| 1 1/8-7UNC | GH6 | 25 | 25.17 | Y82700 | 4.5P | 5.437 | 1.535 | - | - | 0.9 | 0.672 | 0.875 | 4 | 007 | f | |
| SP | 1 1/4-7UNC | GH6 | 28.2 | 28.35 | Y82702 | 4.5P | 5.75 | 1.535 | - | - | 1.02 | 0.766 | 1 | 4 | 007 | f |
| 1 3/8-6UNC | GH6 | 30.8 | 30.92 | Y82705 | 4.5P | 6.062 | 1.811 | - | - | 1.11 | 0.831 | 1.062 | 4 | 007 | f | |
| 1 1/2-6UNC | GH6 | 34 | 34.1 | Y82707 | 4.5P | 6.375 | 1.811 | - | - | 1.23 | 0.925 | 1.125 | 4 | 007 | f | |
| 1 3/4-5UNC | GH7 | 39.5 | 39.61 | Y82709 | 4.5P | 7 | 1.929 | - | - | 1.43 | 1.072 | 1.25 | 4 | 007 | f | |
| SL | 2 -4.5UNC | GH7 | 45.2 | 45.37 | Y82710 | 4.5P | 7.625 | 1.929 | - | - | 1.64 | 1.233 | 1.375 | 4 | 007 | f |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | |
| PO | ANSI | |||||||||||||||
| No.4-48UNF | GH2 | 2.4 | 2.41 | Y82683 | 4.5P | 1.875 | 0.335 | 0.562 | - | 0.14 | 0.11 | 0.187 | 2 | 030 | f | |
| ANSI | GH2 | 2.9 | 2.97 | Y82684 | 4.5P | 2 | 0.413 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f | |
| No.6-40UNF | GH3 | 2.9 | 2.97 | Y82642 | 4.5P | 2 | 0.413 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 030 | f | |
| ST | No.8-36UNF | GH2 | 3.5 | 3.55 | Y82686 | 4.5P | 2.125 | 0.453 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 030 | f |
| GH2 | 4.1 | 4.12 | Y82611 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH3 | 4.1 | 4.12 | Y82610 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| NNF | GH4 | 4.1 | 4.12 | Y82630 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | |
| ROLL | o.10-32U | GH5 | 4.1 | 4.12 | Y82640 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f |
| GH6 | 4.1 | 4.12 | Y82661 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| GH7 | 4.1 | 4.12 | Y82670 | 4.5P | 2.375 | 0.531 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 030 | f | ||
| CARBIDE | No.12-28UNF | GH3 | 4.6 | 4.67 | Y82689 | 4.5P | 2.375 | 0.571 | 0.937 | - | 0.22 | 0.165 | 0.281 | 3 | 030 | f |
| GH3 | 5.5 | 5.53 | Y82614 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| GH4 | 5.5 | 5.53 | Y82631 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| 1/4-28UNF | GH5 | 5.5 | 5.53 | Y82644 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | |
| LONG | GH6 | 5.5 | 5.53 | Y82662 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | |
| GH7 | 5.5 | 5.53 | Y82674 | 4.5P | 2.5 | 0.591 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 030 | f | ||
| GH3 | 6.9 | 6.97 | Y82616 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | ||
| HAND | GH4 | 6.9 | 6.97 | Y82632 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | |
| TAPS | 5/16-24UNF | GH5 | 6.9 | 6.97 | Y82646 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f |
| GH6 | 6.9 | 6.97 | Y82663 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | ||
| GH7 | 6.9 | 6.97 | Y82676 | 4.5P | 2.718 | 0.669 | 1.125 | - | 0.32 | 0.238 | 0.375 | 3 | 030 | f | ||
| EG (STI) | GH3 | 8.5 | 8.57 | Y82618 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | |
| GH4 | 8.5 | 8.57 | Y82633 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | ||
| 3/8-24UNF | GH5 | 8.5 | 8.57 | Y82648 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | |
| SPECIAL | GH6 | 8.5 | 8.57 | Y82664 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | |
| THREADS, GAUGES | GH7 | 8.5 | 8.57 | Y82678 | 4.5P | 2.937 | 0.748 | 1.25 | - | 0.38 | 0.286 | 0.437 | 3 | 030 | f | |
| GH3 | 9.9 | 9.96 | Y82620 | 4.5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | ||
| GH5 | 9.9 | 9.96 | Y82650 | 4.5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | ||
| THREAD | 7/16-20UNF | GH6 | 9.9 | 9.96 | Y82691 | 4.5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f |
| MILLS | GH7 | 9.9 | 9.96 | Y82680 | 4.5P | 3.156 | 0.866 | - | - | 0.32 | 0.242 | 0.406 | 3 | 007 | f | |
| GH3 | 11.5 | 11.54 | Y82622 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| GH5 | 11.5 | 11.54 | Y82652 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| DIES | 1/2-20UNF | GH6 | 11.5 | 11.54 | Y82692 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f |
| GH7 | 11.5 | 11.54 | Y82682 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| GH9 | 11.5 | 11.54 | Y82685 | 4.5P | 3.375 | 0.984 | - | - | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| CENTER | GH3 | 12.9 | 13 | Y82654 | 4.5P | 3.593 | 0.984 | - | - | 0.43 | 0.322 | 0.5 | 3 | 007 | f | |
| DRILLS | 9/16-18UNF | GH5 | 12.9 | 13 | Y82666 | 4.5P | 3.593 | 0.984 | - | - | 0.43 | 0.322 | 0.5 | 3 | 007 | f |
