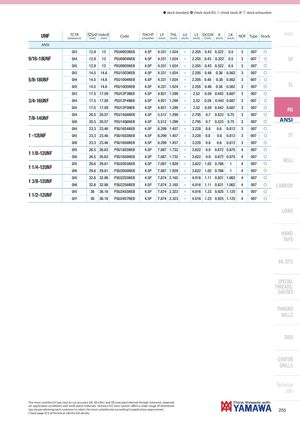

| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock | Intro |
| ANSI | ||||||||||||||||
| GH3 | 12.9 | 13 | PSU09O3NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 3 | 007 | f | ||
| 9/16-18UNF | GH4 | 12.9 | 13 | PSU09O4NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 3 | 007 | f | SP |
| GH5 | 12.9 | 13 | PSU09O5NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.43 | 0.322 | 0.5 | 3 | 007 | f | ||
| GH3 | 14.5 | 14.6 | PSU10O3NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 3 | 007 | f | ||
| 5/8-18UNF | GH4 | 14.5 | 14.6 | PSU10O4NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 3 | 007 | f | |
| GH5 | 14.5 | 14.6 | PSU10O5NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.48 | 0.36 | 0.562 | 3 | 007 | f | SL | |
| GH3 | 17.5 | 17.59 | PSU12P3NEB | 4.5P | 4.921 | 1.299 | - | 2.52 | 0.59 | 0.442 | 0.687 | 3 | 007 | f | ||
| 3/4-16UNF | GH4 | 17.5 | 17.59 | PSU12P4NEB | 4.5P | 4.921 | 1.299 | - | 2.52 | 0.59 | 0.442 | 0.687 | 3 | 007 | f | |
| GH5 | 17.5 | 17.59 | PSU12P5NEB | 4.5P | 4.921 | 1.299 | - | 2.52 | 0.59 | 0.442 | 0.687 | 3 | 007 | f | PO | |
| 7/814UNF | GH4 | 20.5 | 20.57 | PSU14Q4NEB | 4.5P | 5.512 | 1.299 | - | 2.795 | 0.7 | 0.523 | 0.75 | 3 | 007 | f | |
| - | GH6 | 20.5 | 20.57 | PSU14Q6NEB | 4.5P | 5.512 | 1.299 | - | 2.795 | 0.7 | 0.523 | 0.75 | 3 | 007 | f | ANSI |
| GH4 | 23.3 | 23.46 | PSU16S4NEB | 4.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 3 | 007 | f | ||
| 1 -12UNF | GH5 | 23.3 | 23.46 | PSU16S5NEB | 4.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 3 | 007 | f | ST |
| GH6 | 23.3 | 23.46 | PSU16S6NEB | 4.5P | 6.299 | 1.457 | - | 3.228 | 0.8 | 0.6 | 0.812 | 3 | 007 | f | ||
| 1 1/8-12UNF | GH5 | 26.5 | 26.63 | PSU18S5NEB | 4.5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | |
| GH6 | 26.5 | 26.63 | PSU18S6NEB | 4.5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | ROLL | |
| 1 1/4-12UNF | GH5 | 29.6 | 29.81 | PSU20S5NEB | 4.5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | |
| GH6 | 29.6 | 29.81 | PSU20S6NEB | 4.5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | ||
| 1 3/812UNF | GH5 | 32.8 | 32.98 | PSU22S5NEB | 4.5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | |
| - | GH6 | 32.8 | 32.98 | PSU22S6NEB | 4.5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | CARBIDE |
| GH5 | 36 | 36.16 | PSU24S5NEB | 4.5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | ||
| 1 1/2-12UNF | GH7 | 36 | 36.16 | PSU24S7NEB | 4.5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f |
