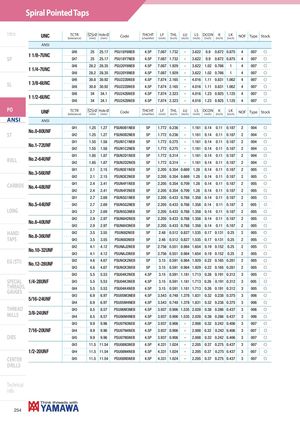

Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | ||||||||||||||||
| 1 1/87UNC | GH6 | 25 | 25.17 | PSU18Y6NEB | 4.5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f | |
| SP | - | GH7 | 25 | 25.17 | PSU18Y7NEB | 4.5P | 7.087 | 1.732 | - | 3.622 | 0.9 | 0.672 | 0.875 | 4 | 007 | f |
| GH6 | 28.2 | 28.35 | PSU20Y6NEB | 4.5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | ||
| 1 1/4-7UNC | GH8 | 28.2 | 28.35 | PSU20Y8NEB | 4.5P | 7.087 | 1.929 | - | 3.622 | 1.02 | 0.766 | 1 | 4 | 007 | f | |
| 1 3/86UNC | GH6 | 30.8 | 30.92 | PSU22Z6NEB | 4.5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f | |
| SL | - | GH8 | 30.8 | 30.92 | PSU22Z8NEB | 4.5P | 7.874 | 2.165 | - | 4.016 | 1.11 | 0.831 | 1.062 | 4 | 007 | f |
| 1 1/26UNC | GH6 | 34 | 34.1 | PSU24Z6NEB | 4.5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | |
| - | GH8 | 34 | 34.1 | PSU24Z8NEB | 4.5P | 7.874 | 2.323 | - | 4.016 | 1.23 | 0.925 | 1.125 | 4 | 007 | f | |
| PO | UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | ANSI | |||||||||||||||
| GH1 | 1.25 | 1.27 | PSUN0B1NEB | 5P | 1.772 | 0.236 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | ||
| ST | No.0-80UNF | GH2 | 1.25 | 1.27 | PSUN0B2NEB | 5P | 1.772 | 0.236 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f |
| N172UNF | GH1 | 1.55 | 1.58 | PSUN1C1NEB | 5P | 1.772 | 0.275 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | |
| o.- | GH2 | 1.55 | 1.58 | PSUN1C2NEB | 5P | 1.772 | 0.275 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | |
| N264UNF | GH1 | 1.85 | 1.87 | PSUN2D1NEB | 5P | 1.772 | 0.314 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f | |
| ROLL | o.- | GH2 | 1.85 | 1.87 | PSUN2D2NEB | 5P | 1.772 | 0.314 | - | 1.161 | 0.14 | 0.11 | 0.187 | 2 | 004 | f |
| GH1 | 2.1 | 2.15 | PSUN3E1NEB | 5P | 2.205 | 0.354 | 0.669 | 1.28 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | ||
| No.3-56UNF | GH2 | 2.1 | 2.15 | PSUN3E2NEB | 5P | 2.205 | 0.354 | 0.669 | 1.28 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| CARBIDE | GH1 | 2.4 | 2.41 | PSUN4F1NEB | 5P | 2.205 | 0.354 | 0.709 | 1.28 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| No.4-48UNF | GH2 | 2.4 | 2.41 | PSUN4F2NEB | 5P | 2.205 | 0.354 | 0.709 | 1.28 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| GH1 | 2.7 | 2.69 | PSUN5G1NEB | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | ||
| No.5-44UNF | GH2 | 2.7 | 2.69 | PSUN5G2NEB | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| LONG | GH3 | 2.7 | 2.69 | PSUN5G3NEB | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| N4NF | GH2 | 2.9 | 2.97 | PSUN6H2NEB | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| o.6-0U | GH3 | 2.9 | 2.97 | PSUN6H3NEB | 5P | 2.205 | 0.433 | 0.768 | 1.358 | 0.14 | 0.11 | 0.187 | 2 | 005 | f | |
| HAND | GH2 | 3.5 | 3.55 | PSUN8I2NEB | 5P | 2.48 | 0.512 | 0.827 | 1.535 | 0.17 | 0.131 | 0.25 | 2 | 005 | f | |
| TAPS | No.8-36UNF | GH3 | 3.5 | 3.55 | PSUN8I3NEB | 5P | 2.48 | 0.512 | 0.827 | 1.535 | 0.17 | 0.131 | 0.25 | 2 | 005 | f |
| GH2 | 4.1 | 4.12 | PSUNAJ2NEB | 5P | 2.756 | 0.551 | 0.984 | 1.654 | 0.19 | 0.152 | 0.25 | 2 | 005 | f | ||
| No.10-32UNF | GH3 | 4.1 | 4.12 | PSUNAJ3NEB | 5P | 2.756 | 0.551 | 0.984 | 1.654 | 0.19 | 0.152 | 0.25 | 2 | 005 | f | |
| EG (STI) | GH2 | 4.6 | 4.67 | PSUNCK2NEB | 5P | 3.15 | 0.591 | 0.984 | 1.929 | 0.22 | 0.165 | 0.281 | 2 | 005 | f | |
| No.12-28UNF | GH3 | 4.6 | 4.67 | PSUNCK3NEB | 5P | 3.15 | 0.591 | 0.984 | 1.929 | 0.22 | 0.165 | 0.281 | 2 | 005 | f | |
| GH2 | 5.5 | 5.53 | PSU04K2NEB | 4.5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 3 | 005 | f | ||
| SPECIAL | 1/4-28UNF | GH3 | 5.5 | 5.53 | PSU04K3NEB | 4.5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 3 | 005 | f |
| THREADS, GAUGES | GH4 | 5.5 | 5.53 | PSU04K4NEB | 4.5P | 3.15 | 0.591 | 1.181 | 1.713 | 0.26 | 0.191 | 0.312 | 3 | 005 | f | |
| 5/1624UNF | GH3 | 6.9 | 6.97 | PSU05M3NEB | 4.5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 3 | 006 | f | |
| - | GH4 | 6.9 | 6.97 | PSU05M4NEB | 4.5P | 3.543 | 0.748 | 1.378 | 1.831 | 0.32 | 0.238 | 0.375 | 3 | 006 | f | |
| THREAD | 3/824UNF | GH3 | 8.5 | 8.57 | PSU06M3NEB | 4.5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 3 | 006 | f |
| MILLS | - | GH4 | 8.5 | 8.57 | PSU06M4NEB | 4.5P | 3.937 | 0.906 | 1.535 | 2.028 | 0.38 | 0.286 | 0.437 | 3 | 006 | f |
| GH3 | 9.9 | 9.96 | PSU07N3NEB | 4.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 3 | 007 | f | ||
| 7/16-20UNF | GH4 | 9.9 | 9.96 | PSU07N4NEB | 4.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 3 | 007 | f | |
| DIES | GH5 | 9.9 | 9.96 | PSU07N5NEB | 4.5P | 3.937 | 0.906 | - | 2.008 | 0.32 | 0.242 | 0.406 | 3 | 007 | f | |
| GH3 | 11.5 | 11.54 | PSU08N3NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 3 | 007 | f | ||
| 1/2-20UNF | GH4 | 11.5 | 11.54 | PSU08N4NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 3 | 007 | f | |
| CENTER | GH5 | 11.5 | 11.54 | PSU08N5NEB | 4.5P | 4.331 | 1.024 | - | 2.205 | 0.37 | 0.275 | 0.437 | 3 | 007 | f | |
