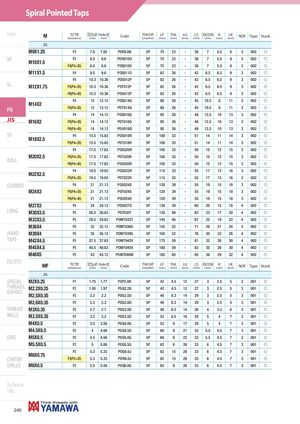

| Intro | M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| M9X1.25 | P3 | 7.8 | 7.85 | POR9.0N | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| SP | M10X15 | P3 | 8.5 | 8.6 | POR010O | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f |
| . | P4(P3+20) | 8.5 | 8.6 | POS010O | 5P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 002 | f | |
| M11X1.5 | P4 | 9.5 | 9.6 | POS011O | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | |
| P4 | 10.3 | 10.36 | POS012P | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ||
| SL | M12X1.75 | P5(P4+20) | 10.3 | 10.36 | POT012P | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f |
| P6(P4+40) | 10.3 | 10.36 | POU012P | 5P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 002 | f | ||
| P4 | 12 | 12.12 | POS014Q | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f | ||
| PO | M14X2 | P5(P4+20) | 12 | 12.12 | POT014Q | 5P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 002 | f |
| P4 | 14 | 14.12 | POS016Q | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | ||
| JIS | M16X2 | P5(P4+20) | 14 | 14.12 | POT016Q | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f |
| P6(P4+40) | 14 | 14.12 | POU016Q | 5P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 002 | f | ||
| ST | M18X25 | P4 | 15.5 | 15.63 | POS018R | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f |
| . | P5(P4+20) | 15.5 | 15.63 | POT018R | 5P | 100 | 33 | - | 51 | 14 | 11 | 14 | 3 | 002 | f | |
| P4 | 17.5 | 17.63 | POS020R | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | ||
| ROLL | M20X2.5 | P5(P4+20) | 17.5 | 17.63 | POT020R | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f |
| P6(P4+40) | 17.5 | 17.63 | POU020R | 5P | 105 | 33 | - | 50 | 15 | 12 | 15 | 3 | 002 | f | ||
| P4 | 19.5 | 19.63 | POS022R | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | ||
| M22X2.5 | P5(P4+20) | 19.5 | 19.63 | POT022R | 5P | 115 | 33 | - | 55 | 17 | 13 | 16 | 3 | 002 | f | |
| CARBIDE | P4 | 21 | 21.13 | POS024S | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | |
| M24X3 | P5(P4+20) | 21 | 21.13 | POT024S | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | |
| P6(P4+40) | 21 | 21.13 | POU024S | 5P | 120 | 39 | - | 55 | 19 | 15 | 18 | 3 | 002 | f | ||
| M27X3 | P4 | 24 | 24.13 | POS027S | 5P | 130 | 39 | - | 60 | 20 | 15 | 18 | 4 | 002 | f | |
| LONG | M30X3.5 | P5 | 26.5 | 26.63 | POT030T | 5P | 135 | 46 | - | 62 | 23 | 17 | 20 | 4 | 002 | f |
| M33X3.5 | P5 | 29.5 | 29.63 | POMT033T | 5P | 145 | 46 | - | 67 | 25 | 19 | 22 | 4 | 002 | f | |
| M36X4 | P5 | 32 | 32.12 | POMT036U | 5P | 155 | 52 | - | 71 | 28 | 21 | 24 | 4 | 002 | f | |
| HAND | M39X4 | P5 | 35 | 35.12 | POMT039U | 5P | 165 | 52 | - | 76 | 30 | 23 | 26 | 4 | 002 | f |
| TAPS | M42X4.5 | P5 | 37.5 | 37.63 | POMT042V | 5P | 175 | 59 | - | 81 | 32 | 26 | 30 | 4 | 002 | f |
| M45X4.5 | P5 | 40.5 | 40.63 | POMT045V | 5P | 180 | 59 | - | 83 | 35 | 26 | 30 | 4 | 002 | f | |
| M48X5 | P5 | 43 | 43.12 | POMT048W | 5P | 185 | 65 | - | 85 | 38 | 29 | 32 | 4 | 002 | f | |
| EG (STI) | MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| SPECIAL | M2X0.25 | P1 | 1.75 | 1.77 | POP2.0B | 5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f |
| THREADS, GAUGES | M2.2X0.25 | P2 | 1.95 | 1.97 | POQ2.2B | 5P | 42 | 4.5 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f |
| M2.5X0.35 | P2 | 2.2 | 2.2 | POQ2.5D | 5P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| M2.6X0.35 | P2 | 2.3 | 2.3 | POQ2.6D | 5P | 46 | 6.3 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| THREAD | M3X0.35 | P2 | 2.7 | 2.7 | POQ3.0D | 5P | 46 | 6.5 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f |
| MILLS | M3.5X0.35 | P2 | 3.2 | 3.2 | POQ3.5D | 5P | 52 | 6.5 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| M4X0.5 | P2 | 3.5 | 3.56 | POQ4.0G | 5P | 52 | 9 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| M4.5X0.5 | P2 | 4 | 4.06 | POQ4.5G | 5P | 60 | 9 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| DIES | M5X0.5 | P2 | 4.5 | 4.56 | POQ5.0G | 5P | 60 | 9 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f |
| M5.5X0.5 | P2 | 5 | 5.06 | POQ5.5G | 5P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| MX | P2 | 5.3 | 5.33 | POQ6.0J | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | |
| CENTER | 60.75 | P3(P2+20) | 5.3 | 5.33 | POR6.0J | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f |
| DRILLS | M6X0.5 | P2 | 5.5 | 5.56 | POQ6.0G | 5P | 62 | 9 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f |
