Каталоги Yamawa твердосплавные метчики для закаленной стали

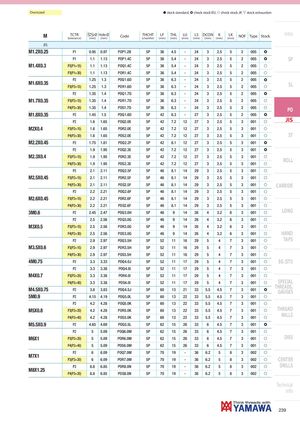

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| M1.2X0.25 | P1 | 0.95 | 0.97 | POP1.2B | 5P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) | |
| P1 | 1.1 | 1.13 | POP1.4C | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) | SP | |
| M1.4X0.3 | P2(P1+15) | 1.1 | 1.13 | POQ1.4C | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | f | |
| P3(P1+30) | 1.1 | 1.13 | POR1.4C | 5P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | f | ||
| M16X035 | P2 | 1.25 | 1.3 | POQ1.6D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) | |
| .. | P3(P2+15) | 1.25 | 1.3 | POR1.6D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | f | SL |
| P2 | 1.35 | 1.4 | POQ1.7D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | ) | ||
| M1.7X0.35 | P3(P2+15) | 1.35 | 1.4 | POR1.7D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | f | |
| P4(P2+30) | 1.35 | 1.4 | POS1.7D | 5P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 2 | 005 | f | PO | |
| M1.8X0.35 | P2 | 1.45 | 1.5 | POQ1.8D | 5P | 42 | 6.3 | - | 27 | 3 | 2.5 | 5 | 2 | 005 | ) | |
| P2 | 1.6 | 1.65 | POQ2.0E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | JIS | |
| M2X0.4 | P3(P2+15) | 1.6 | 1.65 | POR2.0E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| P4(P2+30) | 1.6 | 1.65 | POS2.0E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | ST | |
| M2.2X0.45 | P2 | 1.75 | 1.81 | POQ2.2F | 5P | 42 | 8.1 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | ) | |
| P2 | 1.9 | 1.95 | POQ2.3E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | ) | ||
| M2.3X0.4 | P3(P2+15) | 1.9 | 1.95 | POR2.3E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | |
| P4(P2+30) | 1.9 | 1.95 | POS2.3E | 5P | 42 | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 3 | 001 | f | ROLL | |
| P2 | 2.1 | 2.11 | POQ2.5F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M2.5X0.45 | P3(P2+15) | 2.1 | 2.11 | POR2.5F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| P4(P2+30) | 2.1 | 2.11 | POS2.5F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | CARBIDE | |
| P2 | 2.2 | 2.21 | POQ2.6F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| M2.6X0.45 | P3(P2+15) | 2.2 | 2.21 | POR2.6F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | |
| P4(P2+30) | 2.2 | 2.21 | POS2.6F | 5P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 3 | 001 | f | ||
| 3M0.6 | P2 | 2.45 | 2.47 | POQ3.0H | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | LONG |
| P2 | 2.5 | 2.56 | POQ3.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | ||
| M3X0.5 | P3(P2+15) | 2.5 | 2.56 | POR3.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | |
| P4(P2+30) | 2.5 | 2.56 | POS3.0G | 5P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | f | HAND | |
| P2 | 2.9 | 2.97 | POQ3.5H | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | TAPS | |
| M3.5X0.6 | P3(P2+15) | 2.9 | 2.97 | POR3.5H | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P4(P2+30) | 2.9 | 2.97 | POS3.5H | 5P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| 4M0.75 | P2 | 3.3 | 3.33 | POQ4.0J | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | EG (STI) |
| P2 | 3.3 | 3.38 | POQ4.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | ||
| M4X0.7 | P3(P2+20) | 3.3 | 3.38 | POR4.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | |
| P4(P2+40) | 3.3 | 3.38 | POS4.0I | 5P | 52 | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f | SPECIAL | |
| M4.5X0.75 | P2 | 3.8 | 3.83 | POQ4.5J | 5P | 60 | 13 | 21 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | ) | THREADS, GAUGES |
| 5M0.9 | P2 | 4.15 | 4.19 | POQ5.0L | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | |
| P2 | 4.2 | 4.28 | POQ5.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | ||
| M5X0.8 | P3(P2+20) | 4.2 | 4.28 | POR5.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | THREAD |
| P4(P2+40) | 4.2 | 4.28 | POS5.0K | 5P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f | MILLS | |
| M5.5X0.9 | P2 | 4.65 | 4.69 | POQ5.5L | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | ) | |
| P2 | 5 | 5.09 | POQ6.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| M6X1 | P3(P2+20) | 5 | 5.09 | POR6.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | DIES |
| P4(P2+40) | 5 | 5.09 | POS6.0M | 5P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f | ||
| P2 | 6 | 6.09 | POQ7.0M | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | ||
| M7X1 | P3(P2+20) | 6 | 6.09 | POR7.0M | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | CENTER |
| P3 | 6.8 | 6.85 | POR8.0N | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f | DRILLS | |
| M8X1.25 | P4(P3+20) | 6.8 | 6.85 | POS8.0N | 5P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 002 | f |
