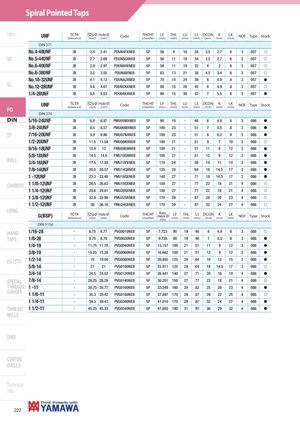

| Intro | UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 371 | ||||||||||||||||
| No.4-48UNF | 2B | 2.4 | 2.41 | PDUN4FXNEB | 5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | f | |
| SP | No.5-44UNF | 2B | 2.7 | 2.69 | PDUN5GXNEB | 5P | 56 | 11 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | f |
| No.6-40UNF | 2B | 2.9 | 2.97 | PDUN6HXNEB | 5P | 56 | 11 | 19 | 32 | 4 | 3 | 6 | 3 | 057 | f | |
| No.8-36UNF | 2B | 3.5 | 3.55 | PDUN8IXNEB | 5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | f | |
| No.10-32UNF | 2B | 4.1 | 4.12 | PDUNAJXNEB | 5P | 70 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 057 | h | |
| SL | No.12-28UNF | 2B | 4.6 | 4.67 | PDUNCKXNEB | 5P | 80 | 15 | 28 | 45 | 6 | 4.9 | 8 | 3 | 057 | f |
| 1/4-28UNF | 2B | 5.5 | 5.53 | PDU04KXNEB | 5P | 80 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 057 | h | |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| PO | DIN 374 | |||||||||||||||
| DIN | 5/16-24UNF | 2B | 6.9 | 6.97 | PMU05MXNEB | 5P | 90 | 19 | - | 46 | 6 | 4.9 | 8 | 3 | 086 | h |
| 3/8-24UNF | 2B | 8.5 | 8.57 | PMU06MXNEB | 5P | 100 | 23 | - | 51 | 7 | 5.5 | 8 | 3 | 086 | h | |
| ST | 7/16-20UNF | 2B | 9.9 | 9.96 | PMU07NXNEB | 5P | 100 | 23 | - | 51 | 8 | 6.2 | 9 | 3 | 086 | h |
| 1/2-20UNF | 2B | 11.5 | 11.54 | PMU08NXNEB | 5P | 100 | 21 | - | 51 | 9 | 7 | 10 | 3 | 086 | f | |
| 9/16-18UNF | 2B | 12.9 | 13 | PMU09OXNEB | 5P | 100 | 21 | - | 51 | 11 | 9 | 12 | 3 | 086 | h | |
| 5/8-18UNF | 2B | 14.5 | 14.6 | PMU10OXNEB | 5P | 100 | 21 | - | 51 | 12 | 9 | 12 | 3 | 086 | h | |
| ROLL | 3/4-16UNF | 2B | 17.5 | 17.59 | PMU12PXNEB | 5P | 110 | 24 | - | 56 | 14 | 11 | 14 | 3 | 086 | h |
| 7/8-14UNF | 2B | 20.5 | 20.57 | PMU14QXNEB | 5P | 125 | 24 | - | 64 | 18 | 14.5 | 17 | 3 | 086 | h | |
| 1 -12UNF | 2B | 23.3 | 23.46 | PMU16SXNEB | 5P | 140 | 27 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | h | |
| CARBIDE | 1 1/8-12UNF | 2B | 26.5 | 26.63 | PMU18SXNEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | f |
| 1 1/4-12UNF | 2B | 29.6 | 29.81 | PMU20SXNEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | f | |
| 1 3/8-12UNF | 2B | 32.8 | 32.98 | PMU22SXNEB | 5P | 170 | 29 | - | 87 | 28 | 20 | 23 | 4 | 086 | f | |
| 1 1/2-12UNF | 2B | 36 | 36.16 | PMU24SXNEB | 5P | 170 | 29 | - | 87 | 32 | 24 | 27 | 4 | 086 | f | |
| LONG | G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| DIN 5156 | ||||||||||||||||
| HAND | 1/16-28 | - | 6.75 | 6.77 | PVG0010NEB | 5P | 7.723 | 90 | 19 | 46 | 6 | 4.9 | 8 | 3 | 086 | f |
| TAPS | 1/8-28 | - | 8.75 | 8.78 | PVG0020NEB | 5P | 9.728 | 90 | 19 | 46 | 7 | 5.5 | 8 | 3 | 086 | h |
| 1/4-19 | - | 11.75 | 11.78 | PVG0040NEB | 5P | 13.157 | 100 | 21 | 51 | 11 | 9 | 12 | 3 | 086 | h | |
| 3/8-19 | - | 15.25 | 15.28 | PVG0060NEB | 5P | 16.662 | 100 | 21 | 51 | 12 | 9 | 12 | 3 | 086 | h | |
| EG (STI) | 1/2-14 | - | 19 | 19.04 | PVG0080NEB | 5P | 20.955 | 125 | 24 | 64 | 16 | 12 | 15 | 3 | 086 | h |
| 5/8-14 | - | 21 | 21 | PVG0100NEB | 5P | 22.911 | 125 | 24 | 64 | 18 | 14.5 | 17 | 3 | 086 | f | |
| 3/4-14 | - | 24.5 | 24.52 | PVG0120NEB | 5P | 26.441 | 140 | 27 | 71 | 20 | 16 | 19 | 4 | 086 | h | |
| SPECIAL | 7/8-14 | - | 28.25 | 28.28 | PVG0140NEB | 5P | 30.201 | 150 | 27 | 77 | 22 | 18 | 21 | 4 | 086 | f |
| THREADS, | 1 -11 | - | 30.75 | 30.77 | PVG0160NEB | 5P | 33.249 | 160 | 29 | 82 | 25 | 20 | 23 | 4 | 086 | h |
| GAUGES | 1 1/8-11 | - | 35.3 | 35.42 | PVG0180NEB | 5P | 37.897 | 170 | 29 | 87 | 28 | 22 | 25 | 4 | 086 | f |
| 1 1/4-11 | - | 39.3 | 39.43 | PVG0200NEB | 5P | 41.910 | 170 | 29 | 87 | 32 | 24 | 27 | 4 | 086 | h | |
| THREAD MILLS | 1 1/2-11 | - | 45.25 | 45.33 | PVG0240NEB | 5P | 47.803 | 190 | 31 | 97 | 36 | 29 | 32 | 4 | 086 | h |
