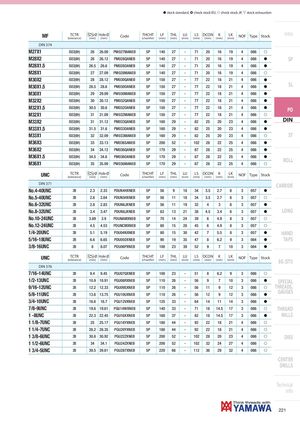

| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 374 | ||||||||||||||||
| M27X1 | ISO2(6H) | 26 | 26.09 | PM027MANEB | 5P | 140 | 27 | - | 71 | 20 | 16 | 19 | 4 | 086 | f | |
| M28X2 | ISO2(6H) | 26 | 26.12 | PM028QANEB | 5P | 140 | 27 | - | 71 | 20 | 16 | 19 | 4 | 086 | h | SP |
| M28X1.5 | ISO2(6H) | 26.5 | 26.6 | PM028OANEB | 5P | 140 | 27 | - | 71 | 20 | 16 | 19 | 4 | 086 | h | |
| M28X1 | ISO2(6H) | 27 | 27.09 | PM028MANEB | 5P | 140 | 27 | - | 71 | 20 | 16 | 19 | 4 | 086 | f | |
| M30X2 | ISO2(6H) | 28 | 28.12 | PM030QANEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | h | |
| M30X1.5 | ISO2(6H) | 28.5 | 28.6 | PM030OANEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | h | SL |
| M30X1 | ISO2(6H) | 29 | 29.09 | PM030MANEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | h | |
| M32X2 | ISO2(6H) | 30 | 30.12 | PM032QANEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | h | |
| M32X1.5 | ISO2(6H) | 30.5 | 30.6 | PM032OANEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | h | PO |
| M32X1 | ISO2(6H) | 31 | 31.09 | PM032MANEB | 5P | 150 | 27 | - | 77 | 22 | 18 | 21 | 4 | 086 | f | |
| M33X2 | ISO2(6H) | 31 | 31.12 | PM033QANEB | 5P | 160 | 29 | - | 82 | 25 | 20 | 23 | 4 | 086 | h | DIN |
| M33X1.5 | ISO2(6H) | 31.5 | 31.6 | PM033OANEB | 5P | 160 | 29 | - | 82 | 25 | 20 | 23 | 4 | 086 | h | |
| M33X1 | ISO2(6H) | 32 | 32.09 | PM033MANEB | 5P | 160 | 29 | - | 82 | 25 | 20 | 23 | 4 | 086 | f | ST |
| M36X3 | ISO2(6H) | 33 | 33.13 | PM036SANEB | 5P | 200 | 52 | - | 102 | 28 | 22 | 25 | 4 | 086 | h | |
| M36X2 | ISO2(6H) | 34 | 34.12 | PM036QANEB | 5P | 170 | 29 | - | 87 | 28 | 22 | 25 | 4 | 086 | h | |
| M36X1.5 | ISO2(6H) | 34.5 | 34.6 | PM036OANEB | 5P | 170 | 29 | - | 87 | 28 | 22 | 25 | 4 | 086 | h | ROLL |
| M36X1 | ISO2(6H) | 35 | 35.09 | PM036MANEB | 5P | 170 | 29 | - | 87 | 28 | 22 | 25 | 4 | 086 | f | |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 371 | CARBIDE | |||||||||||||||
| No.4-40UNC | 2B | 2.3 | 2.33 | PDUN4HXNEB | 5P | 56 | 9 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | h | |
| No.5-40UNC | 2B | 2.6 | 2.64 | PDUN5HXNEB | 5P | 56 | 11 | 18 | 34 | 3.5 | 2.7 | 6 | 3 | 057 | f | |
| No.6-32UNC | 2B | 2.8 | 2.83 | PDUN6JXNEB | 5P | 56 | 11 | 19 | 32 | 4 | 3 | 6 | 3 | 057 | h | |
| No.8-32UNC | 2B | 3.4 | 3.47 | PDUN8JXNEB | 5P | 63 | 13 | 21 | 38 | 4.5 | 3.4 | 6 | 3 | 057 | h | LONG |
| No.10-24UNC | 2B | 3.89 | 3.9 | PDUNAMXNEB | 5P | 70 | 14 | 24 | 39 | 6 | 4.9 | 8 | 3 | 057 | f | |
| No.12-24UNC | 2B | 4.5 | 4.53 | PDUNCMXNEB | 5P | 80 | 15 | 28 | 45 | 6 | 4.9 | 8 | 3 | 057 | f | |
| 1/4-20UNC | 2B | 5.1 | 5.19 | PDU04NXNEB | 5P | 80 | 15 | 30 | 42 | 7 | 5.5 | 8 | 3 | 057 | h | HAND |
| 5/16-18UNC | 2B | 6.6 | 6.65 | PDU05OXNEB | 5P | 90 | 19 | 35 | 47 | 8 | 6.2 | 9 | 3 | 084 | h | TAPS |
| 3/8-16UNC | 2B | 8 | 8.07 | PDU06PXNEB | 5P | 100 | 23 | 39 | 52 | 9 | 7 | 10 | 3 | 084 | h | |
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | EG (STI) |
| DIN 376 | ||||||||||||||||
| 7/16-14UNC | 2B | 9.4 | 9.45 | PGU07QXNEB | 5P | 100 | 23 | - | 51 | 8 | 6.2 | 9 | 3 | 086 | f | |
| 1/2-13UNC | 2B | 10.9 | 10.91 | PGU08RXNEB | 5P | 110 | 26 | - | 56 | 9 | 7 | 10 | 3 | 086 | h | SPECIAL |
| 9/16-12UNC | 2B | 12.2 | 12.33 | PGU09SXNEB | 5P | 110 | 26 | - | 56 | 11 | 9 | 12 | 3 | 086 | f | THREADS, |
| 5/8-11UNC | 2B | 13.6 | 13.75 | PGU10UXNEB | 5P | 110 | 26 | - | 56 | 12 | 9 | 12 | 3 | 086 | h | GAUGES |
| 3/4-10UNC | 2B | 16.6 | 16.7 | PGU12VXNEB | 5P | 125 | 33 | - | 64 | 14 | 11 | 14 | 3 | 086 | h | |
| 7/8-9UNC | 2B | 19.6 | 19.61 | PGU14WXNEB | 5P | 140 | 33 | - | 71 | 18 | 14.5 | 17 | 3 | 086 | f | THREAD |
| 1 -8UNC | 2B | 22.3 | 22.45 | PGU16XXNEB | 5P | 160 | 37 | - | 82 | 18 | 14.5 | 17 | 3 | 086 | h | MILLS |
| 1 1/8-7UNC | 2B | 25 | 25.17 | PGU18YXNEB | 5P | 180 | 44 | - | 92 | 22 | 18 | 21 | 4 | 086 | f | |
| 1 1/4-7UNC | 2B | 28.2 | 28.35 | PGU20YXNEB | 5P | 180 | 44 | - | 92 | 22 | 18 | 21 | 4 | 086 | f | |
| 1 3/8-6UNC | 2B | 30.8 | 30.92 | PGU22ZXNEB | 5P | 200 | 52 | - | 102 | 28 | 20 | 23 | 4 | 086 | f | DIES |
| 1 1/2-6UNC | 2B | 34 | 34.1 | PGU24ZXNEB | 5P | 200 | 52 | - | 102 | 32 | 24 | 27 | 4 | 086 | f | |
| 1 3/4-5UNC | 2B | 39.5 | 39.61 | PGU287XNEB | 5P | 220 | 66 | - | 112 | 36 | 29 | 32 | 4 | 086 | f |
