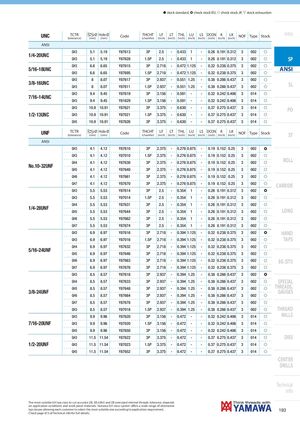

Общий каталог Yamawa 2021 - страница 192
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | LT ( inc | h ) THL ( inch ) | LU ( inch ) | LS ( inch | ) DCON ( inch ) K ( inch ) LK ( inch ) | NO | F Type | Stock | Intro |
| ANSI | |||||||||||||||
| GH3 | 5.1 | 5.19 | Y87613 | 3P | 2.5 | - | 0.433 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | ||
| 1/4-20UNC | GH3 | 5.1 | 5.19 | Y87628 | 1.5P | 2.5 | - | 0.433 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | SP |
| 5/1618UNC | GH3 | 6.6 | 6.65 | Y87615 | 3P | 2.718 | - | 0.472 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | ANSI |
| - | GH3 | 6.6 | 6.65 | Y87695 | 1.5P | 2.718 | - | 0.472 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | |
| GH3 | 8 | 8.07 | Y87617 | 3P | 2.937 | - | 0.551 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | ||
| 3/8-16UNC | GH3 | 8 | 8.07 | Y87611 | 1.5P | 2.937 | - | 0.551 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | SL |
| 7/1614UNC | GH3 | 9.4 | 9.45 | Y87619 | 3P | 3.156 | - | 0.591 | - | - | 0.32 0.242 0.406 | 3 | 014 | f | |
| - | GH3 | 9.4 | 9.45 | Y81629 | 1.5P | 3.156 | - | 0.591 | - | - | 0.32 0.242 0.406 | 3 | 014 | f | |
| GH3 | 10.9 | 10.91 | Y87621 | 3P | 3.375 | - | 0.630 | - | - | 0.37 0.275 0.437 | 3 | 014 | f | PO | |
| 1/2-13UNC | GH3 | 10.9 | 10.91 | Y87021 | 1.5P | 3.375 | - | 0.630 | - | - | 0.37 0.275 0.437 | 3 | 014 | f | |
| GH5 | 10.9 | 10.91 | Y87626 | 3P | 3.375 | - | 0.630 | - | - | 0.37 0.275 0.437 | 3 | 014 | f | ||
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | LT ( inc | h ) THL ( inch ) | LU ( inch ) | LS ( inch | ) DCON ( inch ) K ( inch ) LK ( inch ) | NO | F Type | Stock | ST |
| ANSI | |||||||||||||||
| GH3 | 4.1 | 4.12 | Y87610 | 3P | 2.375 | - | 0.276 | 0.875 | - | 0.19 0.152 0.25 | 3 | 002 | ) | ||
| GH3 | 4.1 | 4.12 | Y87010 | 1.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 0.152 0.25 | 3 | 002 | f | ||
| N1032UNF | GH4 | 4.1 | 4.12 | Y87630 | 3P | 2.375 | - | 0.276 | 0.875 | - | 0.19 0.152 0.25 | 3 | 002 | f | ROLL |
| o.- | GH5 | 4.1 | 4.12 | Y87640 | 3P | 2.375 | - | 0.276 | 0.875 | - | 0.19 0.152 0.25 | 3 | 002 | f | |
| GH6 | 4.1 | 4.12 | Y87661 | 3P | 2.375 | - | 0.276 | 0.875 | - | 0.19 0.152 0.25 | 3 | 002 | f | ||
| GH7 | 4.1 | 4.12 | Y87670 | 3P | 2.375 | - | 0.276 | 0.875 | - | 0.19 0.152 0.25 | 3 | 002 | f | CARBIDE | |
| GH3 | 5.5 | 5.53 | Y87614 | 3P | 2.5 | - | 0.354 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | ) | ||
| GH3 | 5.5 | 5.53 | Y87014 | 1.5P | 2.5 | - | 0.354 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | ||
| GH4 | 5.5 | 5.53 | Y87631 | 3P | 2.5 | - | 0.354 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | ||
| 1/4-28UNF | GH5 | 5.5 | 5.53 | Y87644 | 3P | 2.5 | - | 0.354 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | LONG |
| GH6 | 5.5 | 5.53 | Y87662 | 3P | 2.5 | - | 0.354 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | ||
| GH7 | 5.5 | 5.53 | Y87674 | 3P | 2.5 | - | 0.354 | 1 | - | 0.26 0.191 0.312 | 3 | 002 | f | ||
| GH3 | 6.9 | 6.97 | Y87616 | 3P | 2.718 | - | 0.394 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | ) | HAND | |
| GH3 | 6.9 | 6.97 | Y87016 | 1.5P | 2.718 | - | 0.394 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | TAPS | |
| GH4 | 6.9 | 6.97 | Y87632 | 3P | 2.718 | - | 0.394 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | ||
| 5/16-24UNF | GH5 | 6.9 | 6.97 | Y87646 | 3P | 2.718 | - | 0.394 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | |
| GH6 | 6.9 | 6.97 | Y87663 | 3P | 2.718 | - | 0.394 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | EG (STI) | |
| GH7 | 6.9 | 6.97 | Y87676 | 3P | 2.718 | - | 0.394 | 1.125 | - | 0.32 0.238 0.375 | 3 | 002 | f | ||
| GH3 | 8.5 | 8.57 | Y87618 | 3P | 2.937 | - | 0.394 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | ) | ||
| GH4 | 8.5 | 8.57 | Y87633 | 3P | 2.937 | - | 0.394 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | SPECIAL | |
| GH5 | 8.5 | 8.57 | Y87648 | 3P | 2.937 | - | 0.394 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | THREADS, | |
| 3/8-24UNF | GH6 | 8.5 | 8.57 | Y87664 | 3P | 2.937 | - | 0.394 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | GAUGES |
| GH7 | 8.5 | 8.57 | Y87678 | 3P | 2.937 | - | 0.394 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | ||
| GH3 | 8.5 | 8.57 | Y87018 | 1.5P | 2.937 | - | 0.394 | 1.25 | - | 0.38 0.286 0.437 | 3 | 002 | f | THREAD | |
| GH3 | 9.9 | 9.96 | Y87620 | 3P | 3.156 | - | 0.472 | - | - | 0.32 0.242 0.406 | 3 | 014 | f | MILLS | |
| 7/16-20UNF | GH3 | 9.9 | 9.96 | Y87020 | 1.5P | 3.156 | - | 0.472 | - | - | 0.32 0.242 0.406 | 3 | 014 | f | |
| GH5 | 9.9 | 9.96 | Y87650 | 3P | 3.156 | - | 0.472 | - | - | 0.32 0.242 0.406 | 3 | 014 | f | ||
| GH3 | 11.5 | 11.54 | Y87622 | 3P | 3.375 | - | 0.472 | - | - | 0.37 0.275 0.437 | 3 | 014 | f | DIES | |
| 1/2-20UNF | GH3 | 11.5 | 11.54 | Y87023 | 1.5P | 3.375 | - | 0.472 | - | - | 0.37 0.275 0.437 | 3 | 014 | f | |
| GH5 | 11.5 | 11.54 | Y87652 | 3P | 3.375 | - | 0.472 | - | - | 0.37 0.275 0.437 | 3 | 014 | f |
