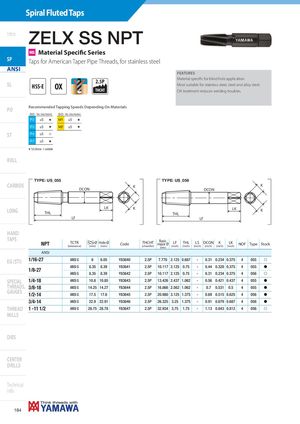

ZELX SS NPT
MS Material Specifi c Series
SP Taps for American Taper Pipe Threads, for stainless steel
ANSI
2.5P
SL HSS-E OX
THCHT
PO Recommended Tapping Speeds Depending On Materials ISO Vc (m/min) ISO Vc (m/min)
| P2 | ≤5 | H | M1 | ≤5 | H | |
| P3 | ≤5 | H | M2 | ≤5 | H | |
| ST | P4 | ≤5 | I | |||
| P7 | ≤5 | H |
H 1st choice I suitable ROLL
FEATURES Material specifi c for blind hole application. Most suitable for stainless steel, steel and alloy steel. OX treatment reduces welding troubles.
ANSI-ZELX SS NPT
TYPE: US_055 TYPE: US_056 CARBIDE K K DCON DCON
LONG
HAND
TAPS
LK K LK
K THL THL LF LF
| NPT | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( inch ) | THL ( inch ) | LS ( inch ) | DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | |||||||||||||||
| 1/16-27 | ANSI G | 6 | 6.05 | Y83640 | 2.5P | 7.770 | 2.125 | 0.687 | - | 0.31 | 0.234 | 0.375 | 4 | 055 | f |
| 1/827 | ANSI G | 8.35 | 8.39 | Y83641 | 2.5P | 10.117 | 2.125 | 0.75 | - | 0.44 | 0.328 | 0.375 | 4 | 055 | h |
| - | ANSI G | 8.35 | 8.39 | Y83642 | 2.5P | 10.117 | 2.125 | 0.75 | - | 0.31 | 0.234 | 0.375 | 4 | 056 | f |
| 1/4-18 | ANSI G | 10.8 | 10.85 | Y83643 | 2.5P | 13.426 | 2.437 | 1.062 | - | 0.56 | 0.421 | 0.437 | 4 | 055 | h |
| 3/8-18 | ANSI G | 14.25 | 14.27 | Y83644 | 2.5P | 16.866 | 2.562 | 1.062 | - | 0.7 | 0.531 | 0.5 | 4 | 055 | h |
| 1/2-14 | ANSI G | 17.5 | 17.6 | Y83645 | 2.5P | 20.980 | 3.125 | 1.375 | - | 0.69 | 0.515 | 0.625 | 4 | 056 | h |
| 3/4-14 | ANSI G | 22.9 | 22.91 | Y83646 | 2.5P | 26.325 | 3.25 | 1.375 | - | 0.91 | 0.679 | 0.687 | 4 | 056 | h |
| 1 -11 1/2 | ANSI G | 28.75 | 28.78 | Y83647 | 2.5P | 32.934 | 3.75 | 1.75 | - | 1.13 | 0.843 | 0.812 | 4 | 056 | f |
