Каталоги Yamawa твердосплавные метчики для закаленной стали

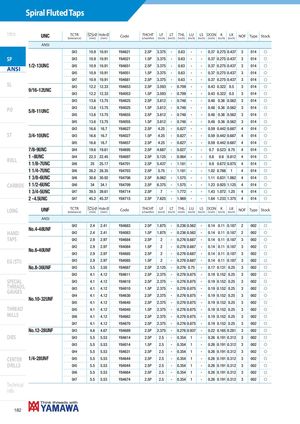

UNC Code NOF Type Stock
(tolerance) (mm) (mm) (chamfer) ( inch ) ( inch ) ( inch ) ( inch ) ( inch ) ( inch ) ( inch ) ( inch )
| ANSI | GH3 | 10.9 | 10.91 | Y84621 | 2.5P | 3.375 | - | 0.63 | - | - | 0.37 | 0.275 | 0.437 | 3 | 014 | f |
| GH3 | 10.9 | 10.91 | Y84021 | 1.5P | 3.375 | - | 0.63 | - | - | 0.37 | 0.275 | 0.437 | 3 | 014 | f | |
| 1/2-13UNC | GH5 | 10.9 | 10.91 | Y84651 | 2.5P | 3.375 | - | 0.63 | - | - | 0.37 | 0.275 | 0.437 | 3 | 014 | f |
| GH5 | 10.9 | 10.91 | Y84051 | 1.5P | 3.375 | - | 0.63 | - | - | 0.37 | 0.275 | 0.437 | 3 | 014 | f | |
| GH7 | 10.9 | 10.91 | Y84681 | 2.5P | 3.375 | - | 0.63 | - | - | 0.37 | 0.275 | 0.437 | 3 | 014 | f | |
| GH3 | 12.2 | 12.33 | Y84653 | 2.5P | 3.593 | - | 0.709 | - | - | 0.43 | 0.322 | 0.5 | 3 | 014 | f | |
| 9/16-12UNC | GH3 | 12.2 | 12.33 | Y84053 | 1.5P | 3.593 | - | 0.709 | - | - | 0.43 | 0.322 | 0.5 | 3 | 014 | f |
| GH3 | 13.6 | 13.75 | Y84625 | 2.5P | 3.812 | - | 0.748 | - | - | 0.48 | 0.36 | 0.562 | 3 | 014 | f | |
| GH3 | 13.6 | 13.75 | Y84025 | 1.5P | 3.812 | - | 0.748 | - | - | 0.48 | 0.36 | 0.562 | 3 | 014 | f | |
| 5/8-11UNC | GH5 | 13.6 | 13.75 | Y84655 | 2.5P | 3.812 | - | 0.748 | - | - | 0.48 | 0.36 | 0.562 | 3 | 014 | f |
| GH5 | 13.6 | 13.75 | Y84055 | 1.5P | 3.812 | - | 0.748 | - | - | 0.48 | 0.36 | 0.562 | 3 | 014 | f | |
| GH3 | 16.6 | 16.7 | Y84627 | 2.5P | 4.25 | - | 0.827 | - | - | 0.59 | 0.442 | 0.687 | 4 | 014 | f | |
| 3/4-10UNC | GH3 | 16.6 | 16.7 | Y84027 | 1.5P | 4.25 | - | 0.827 | - | - | 0.59 | 0.442 | 0.687 | 4 | 014 | f |
| GH5 | 16.6 | 16.7 | Y84657 | 2.5P | 4.25 | - | 0.827 | - | - | 0.59 | 0.442 | 0.687 | 4 | 014 | f | |
| 7/8-9UNC | GH4 | 19.6 | 19.61 | Y84695 | 2.5P | 4.687 | - | 0.827 | - | - | 0.7 | 0.523 | 0.75 | 4 | 014 | f |
| 1 -8UNC | GH4 | 22.3 | 22.45 | Y84697 | 2.5P | 5.125 | - | 0.984 | - | - | 0.8 | 0.6 | 0.812 | 4 | 014 | f |
| 1 1/8-7UNC | GH6 | 25 | 25.17 | Y84701 | 2.5P | 5.437 | - | 1.181 | - | - | 0.9 | 0.672 | 0.875 | 4 | 014 | f |
| 1 1/4-7UNC | GH6 | 28.2 | 28.35 | Y84703 | 2.5P | 5.75 | - | 1.181 | - | - | 1.02 | 0.766 | 1 | 4 | 014 | f |
| 1 3/8-6UNC | GH6 | 30.8 | 30.92 | Y84706 | 2.5P | 6.062 | - | 1.575 | - | - | 1.11 | 0.831 | 1.062 | 4 | 014 | f |
| 1 1/2-6UNC | GH6 | 34 | 34.1 | Y84709 | 2.5P | 6.375 | - | 1.575 | - | - | 1.23 | 0.925 | 1.125 | 4 | 014 | f |
| 1 3/4-5UNC | GH7 | 39.5 | 39.61 | Y84714 | 2.5P | 7 | - | 1.772 | - | - | 1.43 | 1.072 | 1.25 | 4 | 014 | f |
| 2 -4.5UNC | GH7 | 45.2 | 45.37 | Y84715 | 2.5P | 7.625 | - | 1.969 | - | - | 1.64 | 1.233 | 1.375 | 4 | 014 | f |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( inch ) | LT ( inch ) | THL ( inch ) | LU ( inch ) | LS ( inch | ) DCON ( inch ) | K ( inch ) | LK ( inch ) | NOF | Type | Stock |
| ANSI | ||||||||||||||||
| GH2 | 2.4 | 2.41 | Y84683 | 2.5P | 1.875 | - | 0.236 | 0.562 | - | 0.14 | 0.11 | 0.187 | 2 | 002 | f | |
| No.4-48UNF | GH2 | 2.4 | 2.41 | Y84083 | 1.5P | 1.875 | - | 0.236 | 0.562 | - | 0.14 | 0.11 | 0.187 | 2 | 002 | f |
| GH2 | 2.9 | 2.97 | Y84684 | 2.5P | 2 | - | 0.276 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 002 | f | |
| GH2 | 2.9 | 2.97 | Y84084 | 1.5P | 2 | - | 0.276 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 002 | f | |
| No.6-40UNF | GH3 | 2.9 | 2.97 | Y84685 | 2.5P | 2 | - | 0.276 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 002 | f |
| GH3 | 2.9 | 2.97 | Y84085 | 1.5P | 2 | - | 0.276 | 0.687 | - | 0.14 | 0.11 | 0.187 | 3 | 002 | f | |
| No.8-36UNF | GH3 | 3.5 | 3.55 | Y84687 | 2.5P | 2.125 | - | 0.276 | 0.75 | - | 0.17 | 0.131 | 0.25 | 3 | 002 | f |
| GH2 | 4.1 | 4.12 | Y84611 | 2.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| GH3 | 4.1 | 4.12 | Y84610 | 2.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| GH3 | 4.1 | 4.12 | Y84010 | 1.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| GH4 | 4.1 | 4.12 | Y84630 | 2.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| No.10-32UNF | GH5 | 4.1 | 4.12 | Y84640 | 2.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f |
| GH5 | 4.1 | 4.12 | Y84040 | 1.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| GH6 | 4.1 | 4.12 | Y84662 | 2.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| GH7 | 4.1 | 4.12 | Y84670 | 2.5P | 2.375 | - | 0.276 | 0.875 | - | 0.19 | 0.152 | 0.25 | 3 | 002 | f | |
| No.12-28UNF | GH3 | 4.6 | 4.67 | Y84689 | 2.5P | 2.375 | - | 0.276 | 0.937 | - | 0.22 | 0.165 | 0.281 | 3 | 002 | f |
| GH3 | 5.5 | 5.53 | Y84614 | 2.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f | |
| GH3 | 5.5 | 5.53 | Y84014 | 1.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f | |
| GH4 | 5.5 | 5.53 | Y84631 | 2.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f | |
| 1/4-28UNF | GH5 | 5.5 | 5.53 | Y84644 | 2.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f |
| GH5 | 5.5 | 5.53 | Y84044 | 2.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f | |
| GH6 | 5.5 | 5.53 | Y84664 | 2.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f | |
| GH7 | 5.5 | 5.53 | Y84674 | 2.5P | 2.5 | - | 0.354 | 1 | - | 0.26 | 0.191 | 0.312 | 3 | 002 | f |
