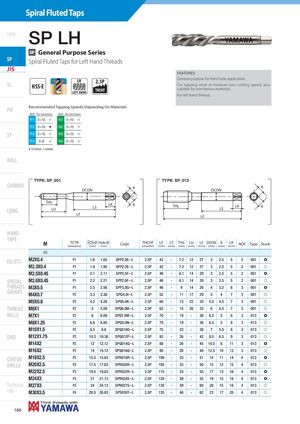

Общий каталог Yamawa 2021 - страница 165
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
SP LH
GP General Purpose Series
SP Spiral Fluted Taps for Left Hand Threads
JIS
FEATURES LH General purpose for blind hole application.
2.5P
SL HSS-E For tapping steel at medium-low cutting speed, also
THCHT suitable for non-ferrous materials. LEFT HAND For left hand threads. PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min)
| P1 | 5÷10 | I | N1 | 5÷10 | I | |
| P2 | 5÷10 | H | N2 | 5÷10 | I | |
| ST | P3 | 5÷10 | I | N3 | 5÷10 | I |
| P4 | 5÷8 | I | N4 | 5÷10 | I |
H 1st choice I suitable ROLL JIS-SP LH
CARBIDE
LONG
HAND
TAPS
TYPE: SP_001
THL LU
TYPE: SP_013 K K DCON DCON
LK K
LS THL LK K
LS LF LF
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | LT ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| M2X0.4 | P1 | 1.6 | 1.65 | SPP2.0E--L | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | ) |
| M2.3X0.4 | P1 | 1.9 | 1.95 | SPP2.3E--L | 2.5P | 42 | - | 7.2 | 12 | 27 | 3 | 2.5 | 5 | 2 | 001 | f |
| M2.5X0.45 | P1 | 2.1 | 2.11 | SPP2.5F--L | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | ) |
| M2.6X0.45 | P1 | 2.2 | 2.21 | SPP2.6F--L | 2.5P | 46 | - | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 2 | 001 | f |
| M3X0.5 | P1 | 2.5 | 2.56 | SPP3.0G--L | 2.5P | 46 | - | 9 | 14 | 26 | 4 | 3.2 | 6 | 3 | 001 | ) |
| M4X0.7 | P2 | 3.3 | 3.38 | SPQ4.0I--L | 2.5P | 52 | - | 11 | 17 | 29 | 5 | 4 | 7 | 3 | 001 | f |
| M5X0.8 | P2 | 4.2 | 4.28 | SPQ5.0K--L | 2.5P | 60 | - | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 3 | 001 | f |
| M6X1 | P2 | 5 | 5.09 | SPQ6.0M--L | 2.5P | 62 | - | 15 | 26 | 33 | 6 | 4.5 | 7 | 3 | 001 | f |
| M7X1 | P2 | 6 | 6.09 | SPQ7.0M--L | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | ) |
| M8X1.25 | P2 | 6.8 | 6.85 | SPQ8.0N--L | 2.5P | 70 | - | 19 | - | 36 | 6.2 | 5 | 8 | 3 | 013 | f |
| M10X1.5 | P2 | 8.5 | 8.6 | SPQ010O--L | 2.5P | 75 | - | 23 | - | 38 | 7 | 5.5 | 8 | 3 | 013 | f |
| M12X1.75 | P2 | 10.3 | 10.36 | SPQ012P--L | 2.5P | 82 | - | 26 | - | 42 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| M14X2 | P2 | 12 | 12.12 | SPQ014Q--L | 2.5P | 88 | - | 26 | - | 45 | 10.5 | 8 | 11 | 3 | 013 | ) |
| M16X2 | P2 | 14 | 14.12 | SPQ016Q--L | 2.5P | 95 | - | 26 | - | 48 | 12.5 | 10 | 13 | 3 | 013 | f |
| M18X2.5 | P3 | 15.5 | 15.63 | SPR018R--L | 2.5P | 100 | - | 33 | - | 51 | 14 | 11 | 14 | 4 | 013 | ) |
| M20X2.5 | P3 | 17.5 | 17.63 | SPR020R--L | 2.5P | 105 | - | 33 | - | 50 | 15 | 12 | 15 | 4 | 013 | f |
| M22X2.5 | P3 | 19.5 | 19.63 | SPR022R--L | 2.5P | 115 | - | 33 | - | 55 | 17 | 13 | 16 | 4 | 013 | ) |
| M24X3 | P3 | 21 | 21.13 | SPR024S--L | 2.5P | 120 | - | 39 | - | 55 | 19 | 15 | 18 | 4 | 013 | ) |
| M27X3 | P3 | 24 | 24.13 | SPR027S--L | 2.5P | 130 | - | 39 | - | 60 | 20 | 15 | 18 | 4 | 013 | f |
| M30X3.5 | P4 | 26.5 | 26.63 | SPS030T--L | 2.5P | 135 | - | 46 | - | 62 | 23 | 17 | 20 | 4 | 013 | f |
